The system has the functions of explosion-proof, dust-proof and waterproof, and can be widely used in the environment containing explosive gas, such as the explosive areas of Zone 1 and Zone 2 in the petroleum, chemical and nuclear industries.
Send Inquiry
Description
Technical Parameters
Product Description

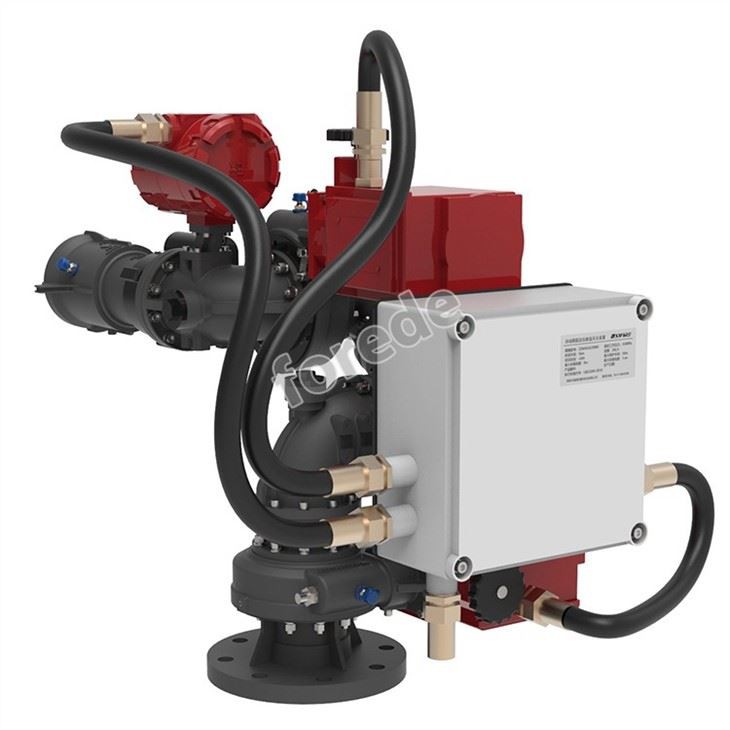

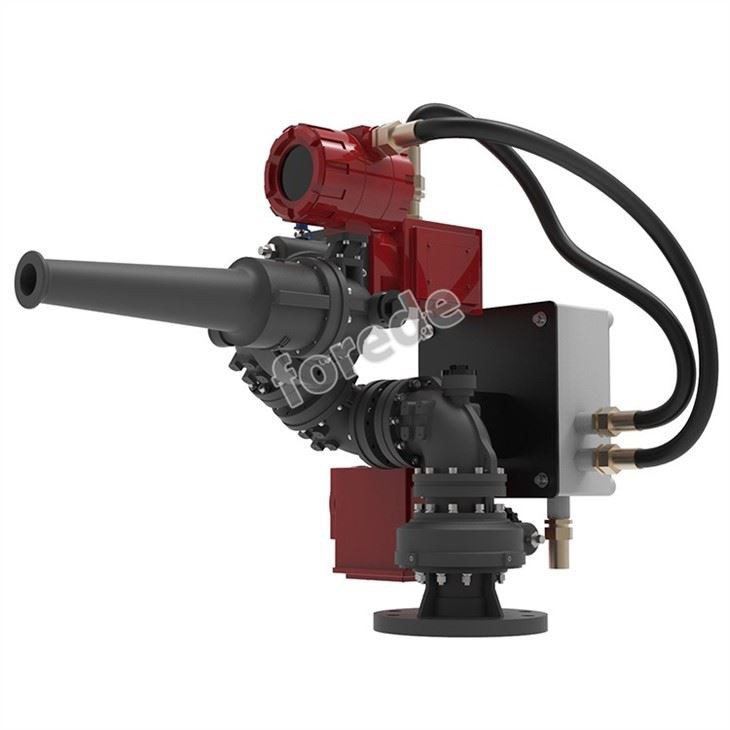

ZDMS0.8 EX Explosion Proof Automatic Fire Monitor
ZDMS0.8 EX Explosion Proof Automatic Fire Water Monitor Cannon is an organic combination of image processing and transmission technology, ultraviolet sensing technology, signal processing technology, communication control technology, computer technology and mechanical transmission technology, which can automatically monitor special places all-weather Fire within the protection area. Once a fire occurs, the device is immediately activated, and the fire source is scanned and positioned horizontally and vertically. After determining the two positions of the fire source, the central controller sends out a fire alarm signal, starts the water pump, opens the valve, and aligns the fire extinguishing device. The fire source carries out water jetting to extinguish the fire. After the fire source is extinguished, the central controller sends an instruction to stop water jetting. If there is a new fire source, the fire extinguishing device will repeat the above process, and return to the monitoring state after all fire sources are extinguished.
The water injection form of this device is Straight stream or Fog, with long range, wide protection range and very powerful fire extinguishing ability.
The system has the functions of explosion-proof, dust-proof and waterproof, and can be widely used in the environment containing explosive gas, such as the explosive areas of Zone 1 and Zone 2 in the petroleum, chemical and nuclear industries.
Detailed Image
Dimensions as below:
Rotation Angle:
Specification
ZDMS0.8 Automatic Fire Monitor
Model
ZDMS0.8 /20S-W
ZDMS0.8 /30S-W
Jet Mode
Straight stream & Fog
or Straight stream nozzle
Straight stream & Fog
or Straight stream nozzle
Rated Flow
20 LPS
30 LPS
Working Pressure
8 Bar
8 Bar
Jet Radius
56 m
62 m
Max Protection Radius
50 m
55 m
Monitoring Radius
80 m
Horizontal Rotation Angle
360°
Vertical Rotation Angle
-90°~+30°
Mounting Height
8~15 m
Operating Voltage
AC 220V
Detector Type
Infrared ray&UV sensor technology
Size
DN65(2.5'') BS or ANSI Flange
Installation
Hanging, Mounting
Configuration List
Part Name
Quantity
Remarks
ZDMS0.8 EXAutomatic Fire Monitor
1
EX-Control Unit
1
Switch operation mode Automatic/Manual
EX-Connecting Box
1
Connecting Wiring
EX-UV Detector
1
Detect fire, activate devices
EX-Camera(optional)
1
Video Surveillance
EX-Electric Valve(optional)
1
Opening and closing water supply
Product Description

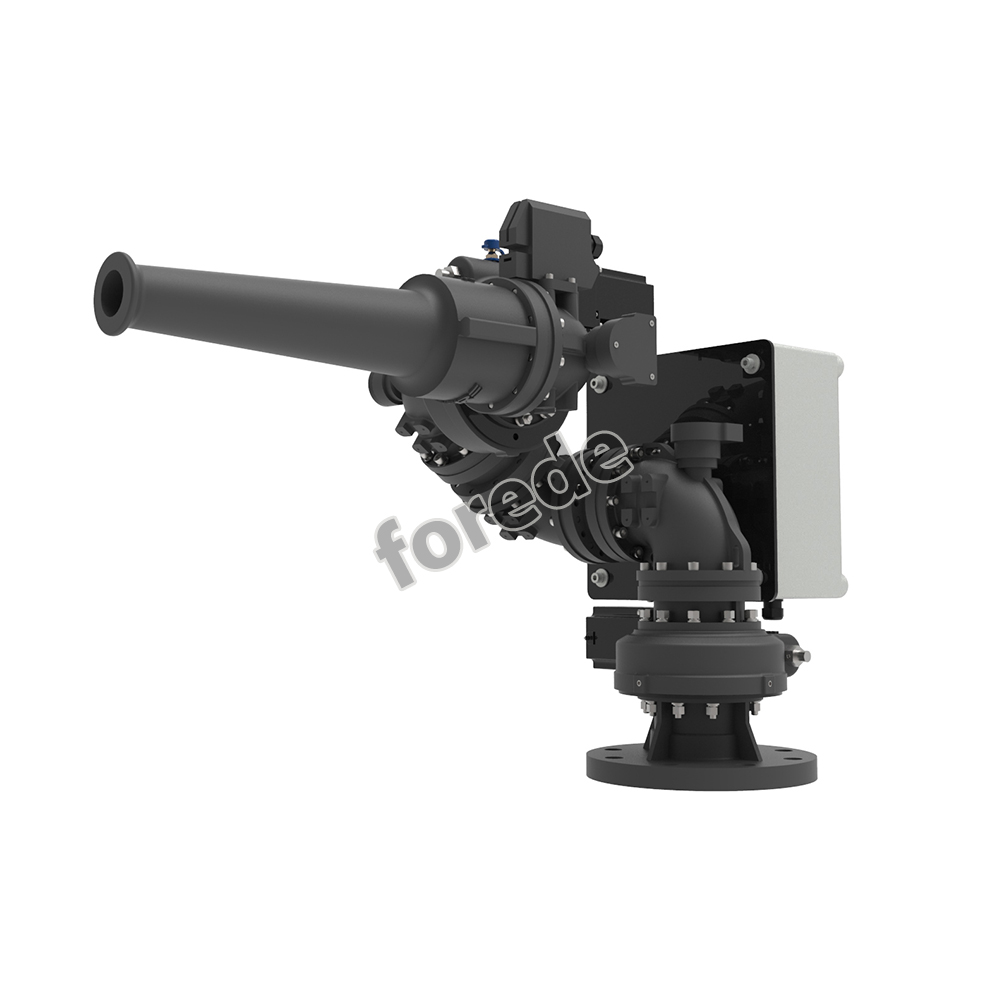

ZDMS0.8 Automatic Fire Monitor
ZDMS0.8 Automatic Fire Water Monitor Cannon is suitable for a wide range of heights. The water distribution performance of installation heights of 3.5m and above meets the technical requirements. It is not only suitable for large-area intelligent active sprinkler systems, but also for large spaces without gaps as low as 3.5m Space place.
Detailed Image
Dimensions as below:
Rotation Angle:
Specification
ZDMS0.8 Automatic Fire Monitor
Model
ZDMS0.8 /20S-W
ZDMS0.8 /30S-W
Jet Mode
Straight stream & Fog
or Straight stream nozzle
Straight stream & Fog
or Straight stream nozzle
Rated Flow
20 LPS
30 LPS
Working Pressure
8 Bar
8 Bar
Jet Radius
56 m
62 m
Max Protection Radius
50 m
55 m
Monitoring Radius
80 m
Horizontal Rotation Angle
360°
Vertical Rotation Angle
-90°~+30°
Mounting Height
8~15 m
Operating Voltage
AC 220V
Detector Type
Infrared ray&UV sensor technology
Size
DN65(2.5'') BS or ANSI Flange
Installation
Hanging, Mounting
Configuration List
Part Name
Quantity
Remarks
ZDMS0.8 Automatic Fire Monitor
1
Control Unit
1
Switch operation mode Automatic/Manual
Connecting Box
1
Connecting Wiring
UV Detector
1
Detect fire, activate devices
Camera(optional)
1
Video Surveillance
Electric Valve(optional)
1
Opening and closing water supply
Order Information
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
* Contacts: Email: sales1@forede.com I Tel/WhatsApp: 008613107856309 I Wechat: 13107856309
