Product Introduction:

ZDMS0.6 Automatic Fire Water Monitor Manual Fire Monitor is suitable for a wide range of heights.

Send Inquiry

Description

Technical Parameters

Product Description

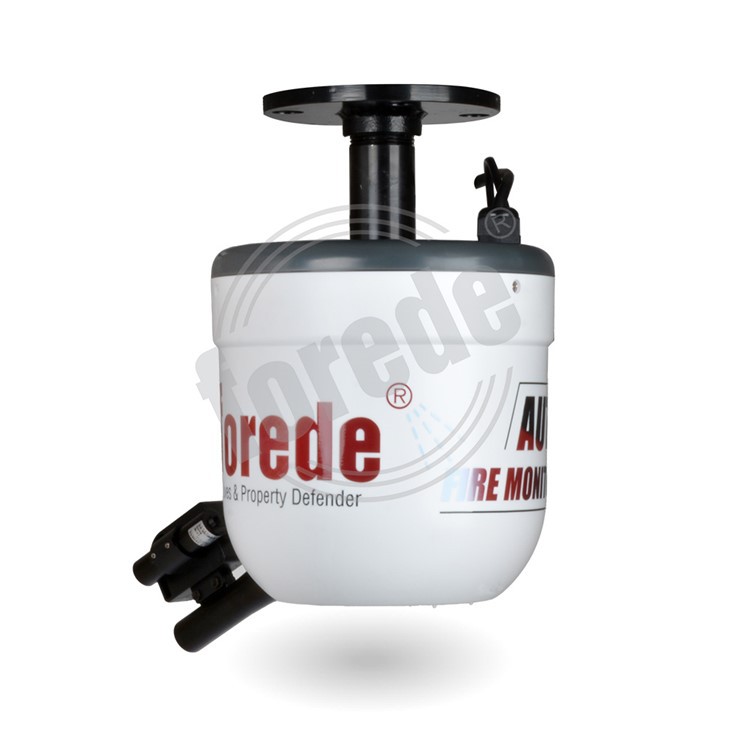

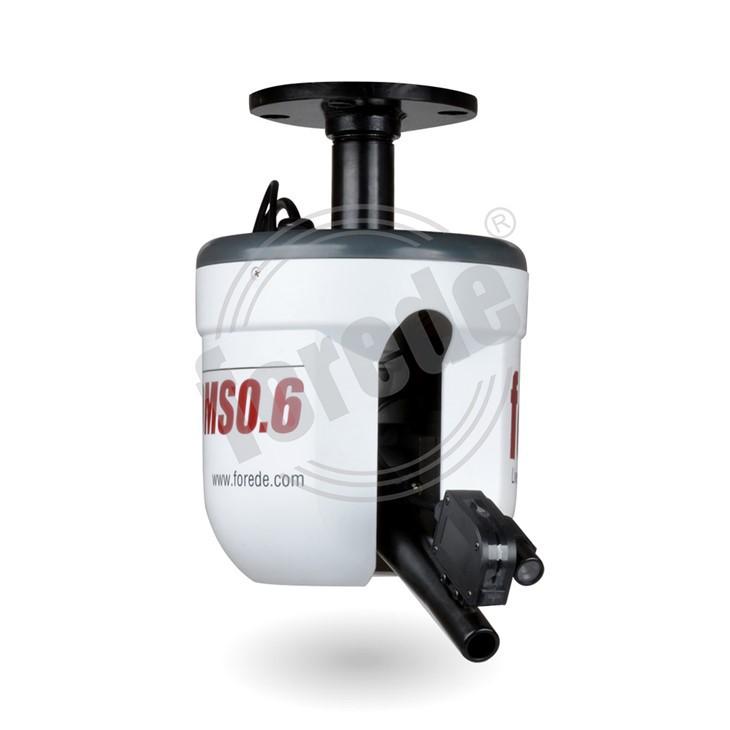

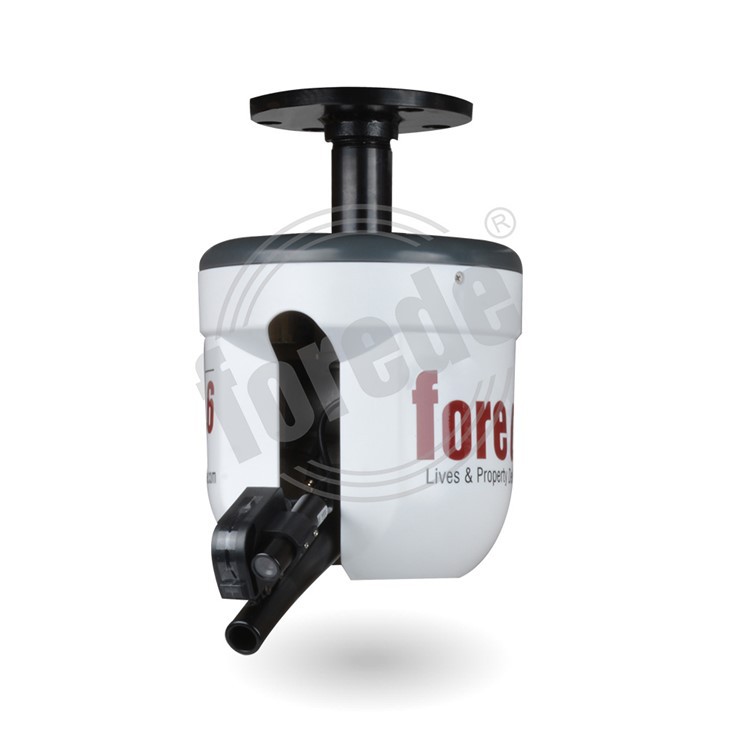

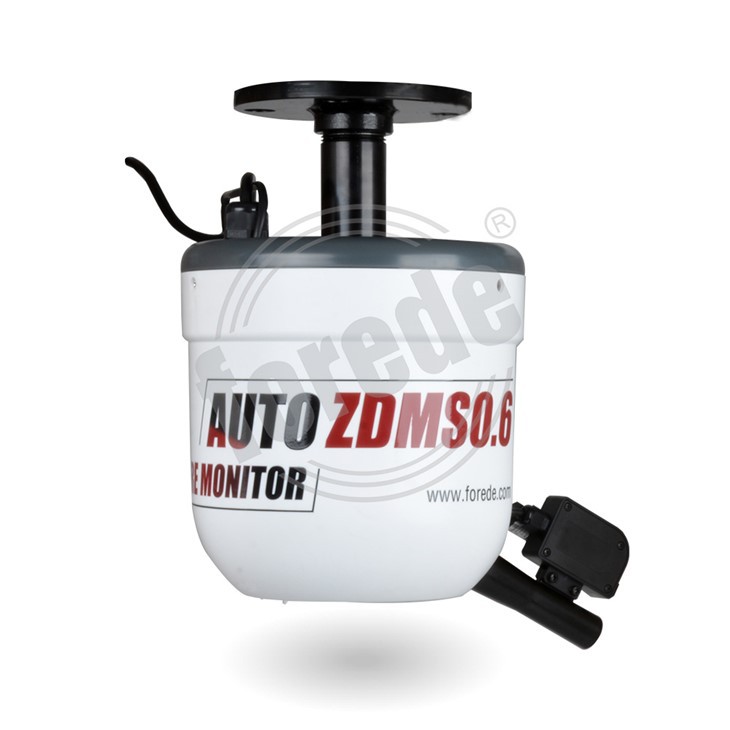

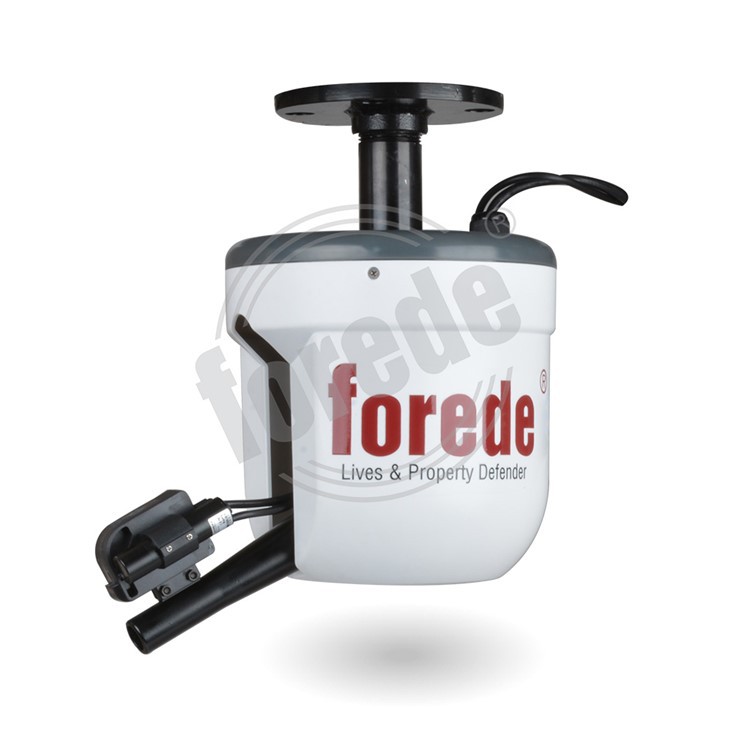

ZDMS0.6 Automatic Fire Monitor

ZDMS0.6 Automatic Fire Water Monitor Manual Fire Monitor is suitable for a wide range of heights. The water distribution performance of installation heights of 3.5m and above meets the technical requirements. It is not only suitable for large-area intelligent active sprinkler systems, but also for large spaces without gaps as low as 3.5m Space place.

Specification

ZDMS0.6 Automatic Fire Monitor
Model	ZDMS0.6 /5S	ZDMS0.6 /10S
Jet Mode	Columnar	Columnar
Rated Flow	5 LPS	10 LPS
Working Pressure	6 Bar	6 Bar
Jet Radius	34 m	39 m
Max Protection Radius	30 m	35 m
Monitoring Radius	50 m
Horizontal Rotation Angle	360°
Vertical Rotation Angle	-90°~+30°
Mounting Height	6~15 m
Operating Voltage	AC 220V
Detector Type	Red ultraviolet composite
Size	DN50 Flange
Installation	Hanging

Configuration List

Part Name	Quantity	Remarks
Automatic Fire Monitor	1

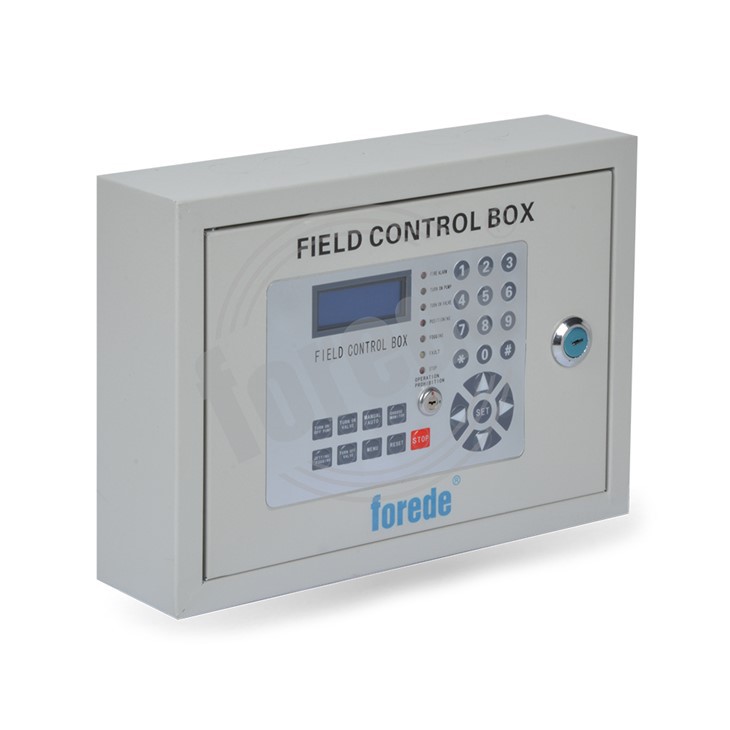

Control Box	1	Switch operation mode Automatic/Manual
Signal Decoder	1	Convert the signal into the information it represents

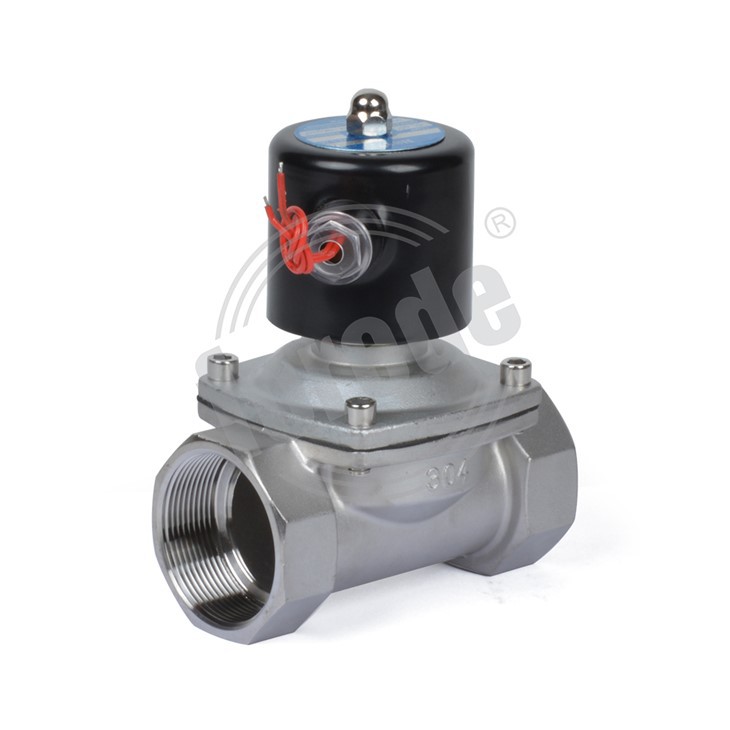

Solenoid Valve	1	Control fluid automation infrastructure components
Camera(optional)	1	Video Surveillance

Order Information

Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.

* Contacts: Email: sales4@forede.com  I  Tel/WhatsApp: 008618750638978  I  Wechat: 18750638978

Hot Tags: automatic water monitor, China, manufacturers, suppliers, wholesale, price, FM 200, Positioning Fire Water Monitor, Automatic Scanning Fire Monitor, Automatic Fire Monitor Water Cannon, Automatic Positioning Fire Monitor, Automatic Water Cannon

1) Single strand incoming line, anti-winding design

2) Integrated design without junction box

3)Single tube spherical appearance, smaller size

4) Hard anodized surface, more suitable for harsh environments

5) Made of high-strength nylon material, fire retardant

6) Ring alarm lamp

7) Removable sensor guard case

8) Laser positioning indication, high-definition screen monitoring
