Product Description
ZDMS0.8 EX Explosion Proof Automatic Fire Monitor
ZDMS0.8 EX Explosion Proof Automatic Fire Water Monitor Cannon is an organic combination of image processing and transmission technology, ultraviolet sensing technology, signal processing technology, communication control technology, computer technology and mechanical transmission technology, which can automatically monitor special places all-weather Fire within the protection area. Once a fire occurs, the device is immediately activated, and the fire source is scanned and positioned horizontally and vertically. After determining the two positions of the fire source, the central controller sends out a fire alarm signal, starts the water pump, opens the valve, and aligns the fire extinguishing device. The fire source carries out water jetting to extinguish the fire. After the fire source is extinguished, the central controller sends an instruction to stop water jetting. If there is a new fire source, the fire extinguishing device will repeat the above process, and return to the monitoring state after all fire sources are extinguished. The water injection form of this device is Straight stream or Fog, with long range, wide protection range and very powerful fire extinguishing ability. The system has the functions of explosion-proof, dust-proof and waterproof, and can be widely used in the environment containing explosive gas, such as the explosive areas of Zone 1 and Zone 2 in the petroleum, chemical and nuclear industries.

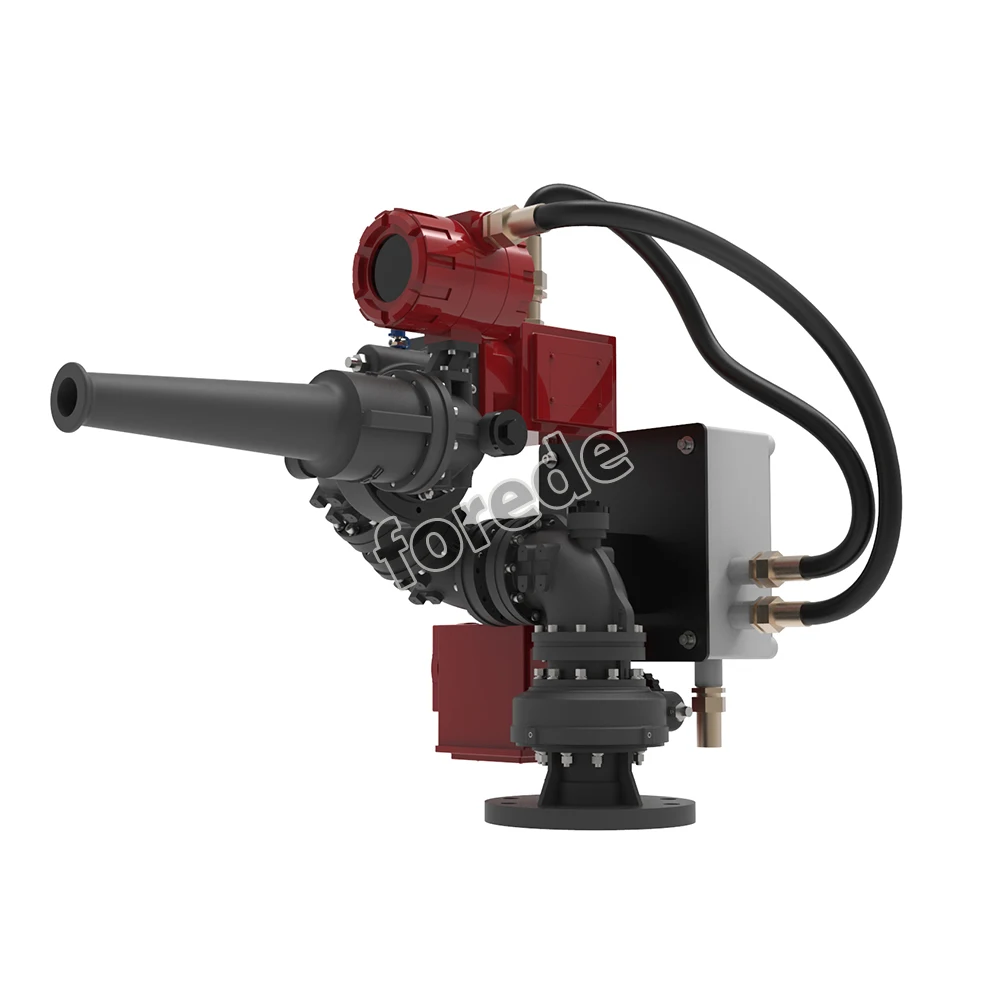

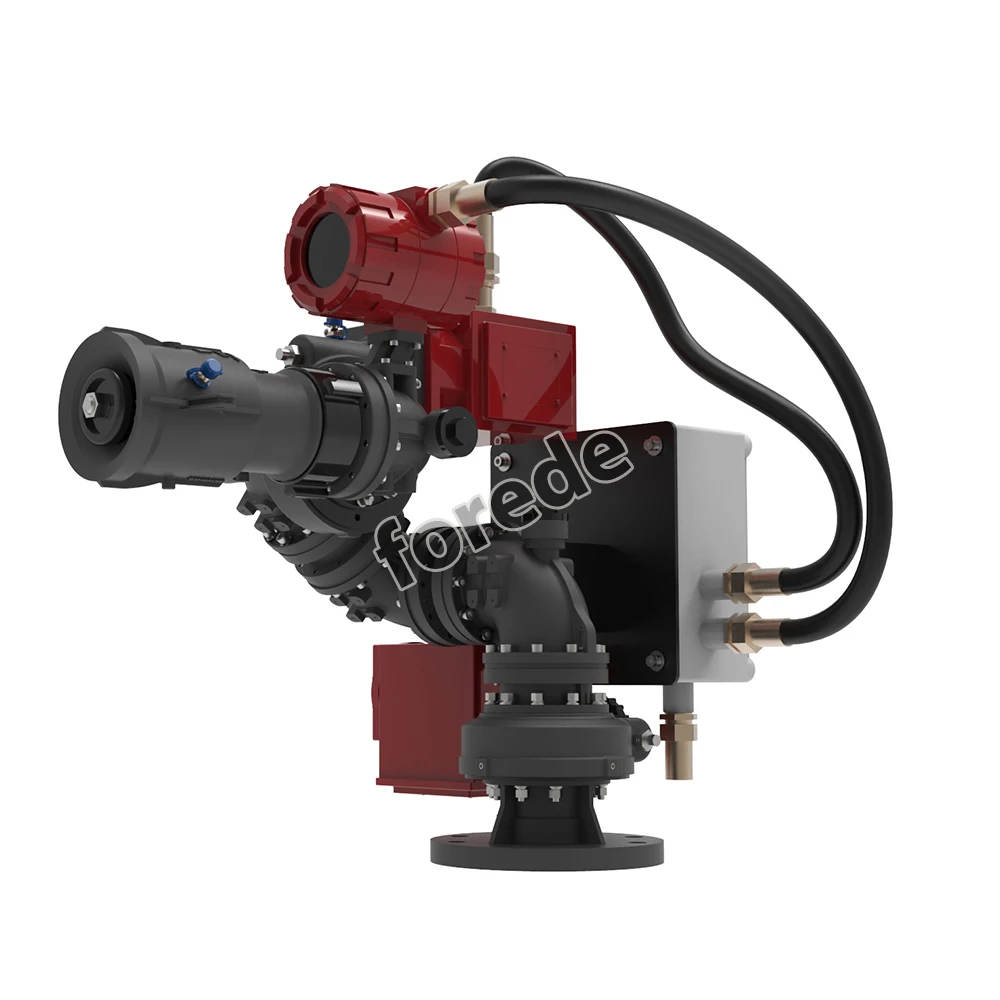

Detailed Image

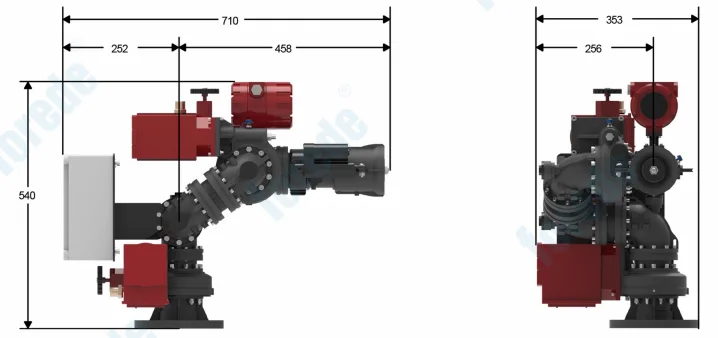

Dimensions as below:

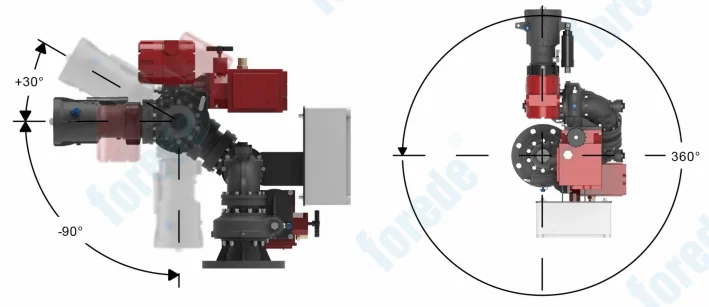

Rotation Angle:
Specification
|
Vertical Rotation Angle
|
-90°~+30°
|
|
|
Detector Type
|
Infrared ray&UV sensor technology
|
|
|
Size
|
DN65(2.5'') BS or ANSI Flange
|
|
|
Installation
|
Hanging, Mounting
|
|
Configuration List
|
Part Name
|
Quantity
|
Remarks
|
|
ZDMS0.8 EXAutomatic Fire Monitor
|
1
|
|
|
EX-Control Unit
|
1
|
Switch operation mode Automatic/Manual
|
|
EX-Connecting Box
|
1
|
Connecting Wiring
|
|
EX-UV Detector
|
1
|
Detect fire, activate devices
|
|
EX-Camera(optional)
|
1
|
Video Surveillance
|
|
EX-Electric Valve(optional)
|
1
|
Opening and closing water supply
|
Order Information
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
* Contacts: Email: sales1@forede.com I Tel/WhatsApp: 008613107856309 I Wechat: 13107856309
