The electric controlled water fire monitor can realize remote wired control and manual operate. Besides, wireless controller is available to control the horizontal rotation angle and pitch rotation angle far from fire-fighting equipment. It can be fixed while operating, which is helpful for firefighters to evacuate from fire scene safely.

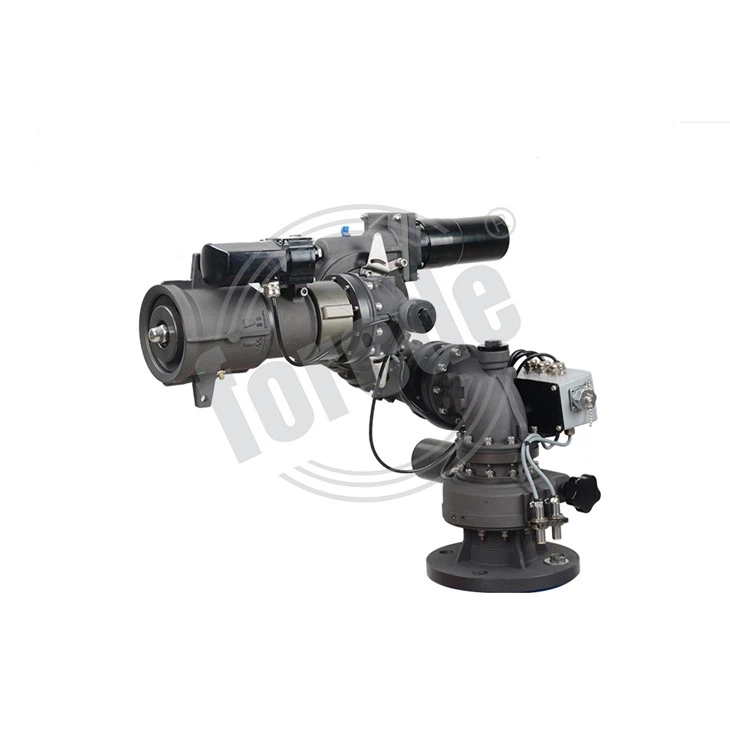

The parts name of fire monitor as following fire monitor design picture shows:
The details specification of this type fire monitor:
Model Number | PSKD8/20W-B | PSKD8/30W-B | PSKD8/40W-B | PSKD8/20-30-40W-B |
Flow Rate | 1200 LPM | 1800 LPM | 2400 LPM | 1200-1800-2400 LPM (Selectable) |
Working Pressure | 8 Bar | 8 Bar | 8 Bar | 8 Bar |
Max. Reach @ 8 bar | 50 meters | 60 meters | 65 meters | 65 meters |
Max. Fog Angle | 120° | |||
Max Range Of Motion | -90° to +90° Vertically, 340° Rotation,other degree available | |||
Turing Speed | 24°/Second rotation,10°/Second vertical | |||
Power Supply | DC 24V is standard | |||
Power Consumption | ≤200W | |||
Waterway Size | 2 1/2" (65mm) | |||
Monitor Outlet | 2 1/2" (65mm) NH male thread | |||
Monitor Inlet | Flange 2.5" ANSI 150# is standard,other size and standard available | |||
Material | Monitor & Nozzle- Hard coated anodized aluminium alloy | |||
Control System | ICS-01 or VMCS-01 | |||
If you need more information about this fire water monitor, welcome to contact us.
FAQ:
Q:Where are Remote Control Monitor applications
A: RCMs find application in industries/ operations having severe fire hazards, such as Oil & Gas facilities, flammable liquid storage and processing, Ports, etc, where exposing personnel to the high radiant heat/ smoke and gases during fire incidents is not an option. RCMs provide the ideal solution to such problems as they can be operated from a safe and remote location.
Q:What are Remote Control Monitors?
A:Remote Control Monitors (RCM) are standard monitors fitted with arrangements to operate the same from a remote location. RCMs normally employ Electric or hydraulic motors to operate the swivel joints for vertical/ horizontal movement of the monitor, as well as to adjust the discharge pattern of the nozzle.
Hot Tags: fire monitor design, China, manufacturers, suppliers, wholesale, price, Dry Fire Sprinklers, Foam Monitor Blabbermouth, Wireless Fire Water Monitor Fire Fighting, Electric Fire Water Monitor, RC Fire Fighting Monitor, Electric Explosion Proof Fire Monitor
1) Aluminium alloy construction,hard anodized;
2) Constant or Selectable nozzle;
3) Vertical travel of 180°,from -90° to +90°;
4) 340° rotation horizontally;
5) Electric control jetting Pattern: Straight stream,Fog;
6) Electric.driver and control unit box are waterproof;
7) Optional power supply 12V/24V DC(optional),or 100-230AC.
