Products Description
Benefits of Electronic Fire Cannons
Improved safety: Electronic fire cannons enable a more advanced, accurate, and efficient firefighting system, ensuring improved safety for both firefighters and civilians. With an increased reach, these instruments can mitigate fires more quickly and limit the damage they cause.
Low maintenance: Electronic fire cannons require much less maintenance relative to standard fire suppression systems, significantly reducing costs. They are less vulnerable to damage from the harsh weather or external factors, requiring no backflow preventers, valves, or orifices replacements.
Cost reduction: The installation of electronic fire cannons lowers the overall cost of fire suppression systems. Since they operate based on standardized programming, there is no need to pay for the equipment needed for manual labor.
Environmental benefits: Electronic fire cannons are environmentally friendly since they deploy a potent and accurate mist of water droplets that extinguish fires more easily, limiting the water required to extinguish the fire. This means less damage caused by water and lower operational costs.
Efficient Space Usage: Electronic fire cannons occupy less space than traditional fire suppression systems, enabling better use of space.
Conclusion
Electronic fire cannons represent a significant advancement in fire prevention technology that provides improved safety, reduced costs, and maximum efficiency. If installed in hazardous and high-risk areas, they offer better protection against fires and can prevent significant damage and loss of life. Even with the added cost of the electronics, electronic fire cannons have the potential to be a cost-effective solution for fire prevention in the future. The emergence of these cannons is clear proof that technology continues to advance, making our lives more comfortable and safer. With further advancements, we can achieve a world free from the disastrous effects of fire hazards.

Technical Parameter
| Model |
PSKD20CA
|
PSKD30CA
|
PSKD40CA
|
PSKD20-40CA
|
|
Flow Rate |
1200 LPM |
1800 LPM |
2400 LPM |
1200-1800-2400 LPM adjustable |
|
Working Pressure |
8 Bar |
8 Bar | 8 Bar | 8 Bar |
|
Max. Reach |
50 meters |
60 meters |
65 meters |
50-65 meters |
|
Max. Fog Angle |
120° |
|||
|
Max Range Of Motion |
-45° to +85° Vertically, 360° Rotation |
|||
| turing Speed | 12°/ second rotation, 8°/ second vertical | |||
| Power supply | dC 24V is standard | |||
| power consumption | 24V@ 7.5A | |||
|
Waterway Size |
2.5'' (65mm) |
|||
|
Monitor Outlet |
2.5'' nH male thread |
|||
|
Monitor Inlet |
Flange 4" BS4504 is standard ( other sizes & standards are available ) |
|||
|
Material |
Monitor & Nozzle - Hard coated anodized aluminium alloy |
|||
FAQ
Contact US
Our address
NO.278-1, MEITING VILLAGE, MEILIN SUB-DISTRICT, NAN'AN CITY, QUANZHOU CITY, FUJIAN PROVINCE, CHINA.
Phone Number
0086-13107856309 (whatsApp)

About US
QUANZHOU FOREDE FIREFIGHTING EQUIPMENT CO.,LTD.
Since company was found in 2003, FOREDEFIRE has evolved and grown from a small factory in the yard with the limited capacity to only make sprinklers, to a sophisticated and leading company.
In 2013, FOREDEFIRE establish production base in Sanduo Industry Park, Jiangsu PRC to develop and improve fire monitor, fire nozzle, foam system device, fire robot etc. Increased production and enhanced quality and cost control to accommodate our continuing growth
large enterprise scale
Efficient and precise processing and testing equipment.
Standardized Production
Passed ISO9001, CE certification and obtained relevant patent certificates.
High-Quality Customized Services
No intermediate links, providing one-stop service from design, processing, mold trial to mass production.

Work Shop View - Fire Nozzle & Monitor








Hot Tags: fire monitor for fire fighting, China, manufacturers, suppliers, wholesale, price, Dry Fire Sprinklers, Truck Fire Fighting Monitor, Defense Type Fire Hose Nozzle, Remote Foam Monitor Blabbermouth, Fire Fighting Monitors, Fixed Remote Foam Monitor

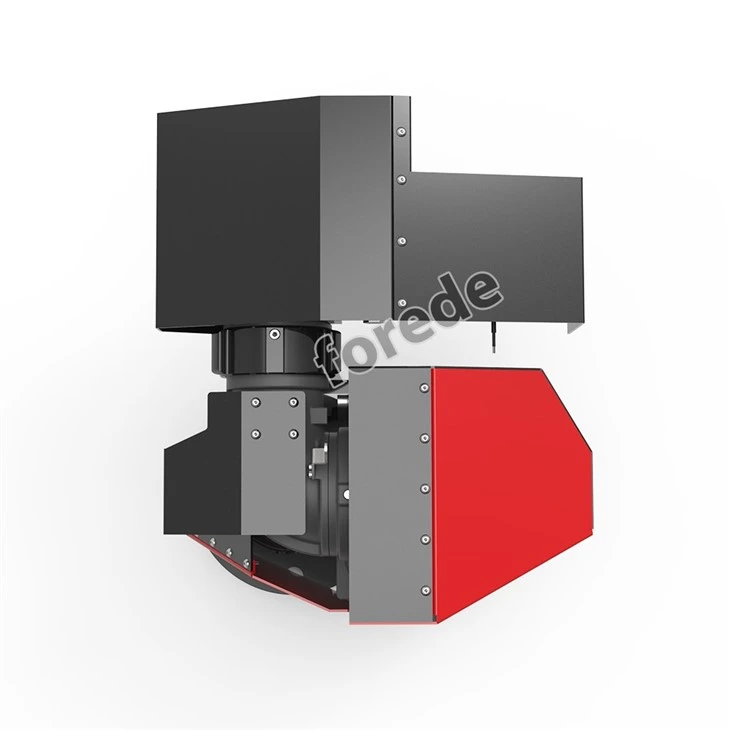

1) Aluminum alloy construction.
2) 1200-1800-2400 LPM flow rate (adjustable or constant flow).
3) Remote control nozzle pattern, for fog spray and straight jetting.
4) 360°rotation,-45°to + 85°Elevate
5) Easy to service and repair.
6) Wireless, remote control.
7) Light weight stable quality.
