FOREDE ® PSKD8/20-40W-A Series cannon/monitor is electric wired (or wireless remote control) DC drive, which fully realizes the advantages of remote separation between the operator and the fire scene, and can well protect the personal safety of the fire extinguishers.
PSKD8/20-40W-A has the characteristics of stable and reliable performance, flexible operation, convenient maintenance, long range, light weight and small size. When spraying water jets, it can extinguish solid fires; when spraying blooming water mist, it can be used for cooling and fire fighting.
This product is suitable for being equipped with light fire trucks and fire boats. It can also be used as the front monitor of fire fighting vehicles to remove fire sources near the fire truck and effectively protect the safety of the fire truck. At the same time, the monitor can also be used as an industrial and mining enterprise and warehouse. Stationary fire extinguishing equipment in places such as, museums, exhibition halls, oil fields, storage tanks, etc.
| Model Number | PSKD8/20-40W-A |
| Flow Rate | 1200-1800-2400LPM ,Adjustable Nozzle |
Working Pressure | 8 bar |
| Max. Fog Angle | 120 ° |
| Max Range Of Motion | -90° to + 90 ° Vertically ,340 ° Rotation |
| Power Supply | DC 24 V is Standard |
| Power Consumption | 24 V @ 7.5 A |
| Waterway Size | 2 1/2" (65mm) |
| Monitor Outlet | 2 1/2" (65mm) NH Male Thread |
| Monitor Inlet | Flange 4" ANSI 150 is Standard ,Other Size and Standard is Available |
| Material | Monitor Body - SS304 Stainless Steel is Standard ,SS316 is available Nozzle - Hard Coated Anodized Aluminum Alloy |

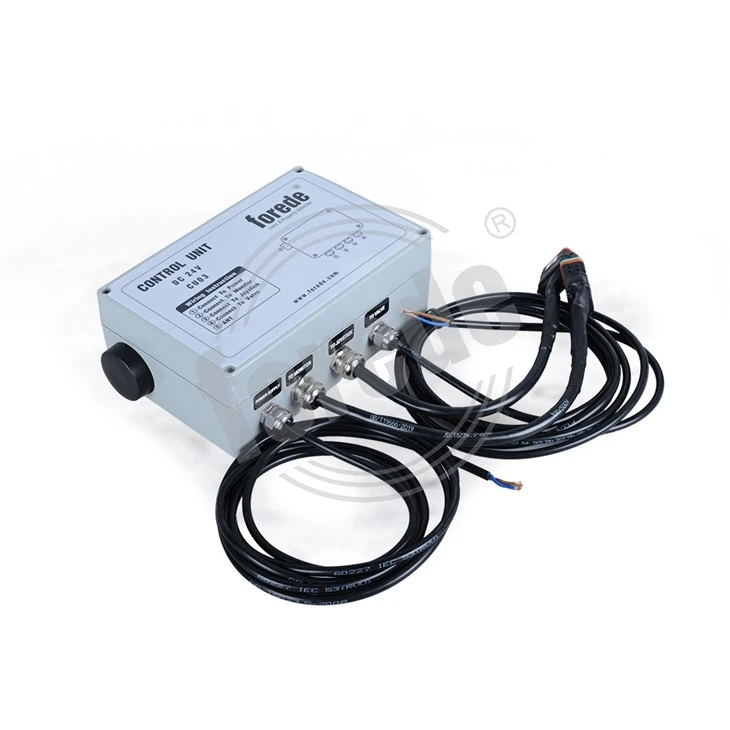

| Control System | ICS-01 or VMCS-01 |
FAQ
Q:Can you accept OEM?
A:Yes, we do customized design for our clients.
Q: What's the MOQ of your products?
A:Our MOQ is one (1) piece/set.
Q:How long does it take to produce the product?
A: Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.
Hot Tags: stainless steel remote control fire monitor, China, manufacturers, suppliers, wholesale, price, Truck Fire Fighting Monitor, Stainless Steel Fire Monitor, Stainless Steel Fire Fighting Monitor, Remote Explosion Fire Monitor, Truck Fire Fighting Cannon, Remote Explosion Proof Fire Monitor
1) SS304 Stainless steel;
2) Automatic monitor nozzle;
3) Vertical travel of 180°,from -90°to +90°;
4) 340°rotation horizontally;
5) Electric control jetting Pattern: Straight stream,Fog;
6) Electric.driver and control unit box are waterproof;
7) Optional power supply 12V/24V DC(optional),or 100-230 V AC.
