The forede® Brand MSQ040 Self-Inducting Monitor Foam Nozzle is an innovative firefighting device designed to deliver superior foam performance with ease and efficiency. Engineered to inducting mix foam concentrate with water, this nozzle ensures a consistent and effective foam stream, enhancing fire suppression capabilities in critical situations.
Built with durability and reliability in mind, the MSQ040 nozzle features an ergonomic design that allows firefighters to operate it effortlessly, reducing fatigue during extended operations. Its advanced self-inducting technology guarantees rapid foam generation without the need for external foam proportioning equipment, making it an ideal choice for both fixed and mobile firefighting applications.
With its high flow capacity and inducting foam setting, the Self-Inducting Monitor Foam Nozzle adapts seamlessly to various fire scenarios, offering flexible and powerful protection. This state-of-the-art equipment empowers firefighting teams to respond confidently and efficiently, safeguarding lives and property with superior foam coverage.
Embrace the future of firefighting technology with the Self-Inducting Monitor Foam Nozzle – where innovation meets performance to create safer environments for all.
01
Self-Inducting Foam Aspiration Pipe

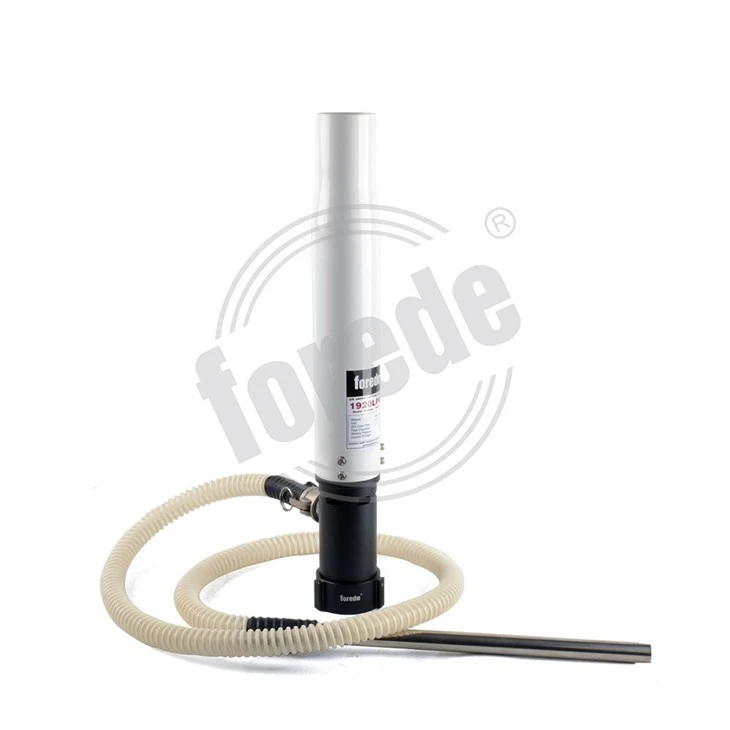

The MSQ040 nozzle comes with 1.5 meters PU flexible hose with cam-lock coupling for inducting foam concentrate, it then introduces sufficient air for mixing with foam solution, to produce foam and deliver it.
02
Compact, Solid, Straight Steam With Far Reach
With bulid-in stream shaper, Long enough straight barrel style MSQ040 monitor water foam nozzle forming a tight, solid straight water or foam steam to have an far reach.
03
Painted Stainless Steel And Anodized Aluminum Alloy
The foam nozzle barrel body adopts stainless steel 304 and aluminum alloy stream shaper, which is durable, pressure-resistant and anti-corrosion for corrosive and non-corrosive applications.
Durable heavy duty stainless steel 304 with aluminum alloy construction
Simple,rugged nozzle with superior stream quality and reach.
Powerful,steady, concentrated,solid stream.
Customized to meet different flow rate @ different working pressure.
Extremly low maintenance, high quality components.
Self-inducting foam tube optional.
Suitable for most of fire monitor assembly of forede brand.
Build-in shape for incredible reach and stream quality.
Simply and qucikly connect with foam tube for inducting foam concentrate.
Style Number : MSQ040
Monitor Nozzle Material: Stainless Steel 304 and Aluminum Alloy
Pattern: Straight Steam
Monitor Nozzle Type: Foam Aspiration Pipe
Max.Flow Rate: 2400 LPM
Media: Water or Foam
Self-Inducting Foam Function: Optional with 1.5 meters PU flexible hose with Cam-lock coupling
Foam Proportion: 3% or 6% Optional
Barrel Color: White/Red/Yellow Optional
Control Type: Manual control.
Inlet Size: 2.5 '' NH Female
Application: For fire monitor,for fire fighting.
Suitable Monitor Assembly: TFS1,TFS2,WFS1,WFS2,EFS1,EFS2,XFS1,XFS2
| Surface Finishing: | Painted Stainless steel 304 with Anodized Aluminum Alloy. | ||||||
| Flow Rate (LPM): | 1440/1920/2400 LPM Constant Flow. | ||||||
| Rated Working Pressure: |
0.8Mpa/8 Bar/115psi. |
||||||
| Max Working Pressure: | 1.38Mpa/13.8bar/200 psi. | ||||||
| Inlet Size: | 2.5" NH Female (Other coupling style is acceptable). | ||||||
| Max.Reach(Water): |
55 meters @1440LPM,60 meters @1920LPM ,65 meters @2400lpm (@ 30 Degree,1.2 Meters To the Ground.Wind Speed ＜2m/s). |
||||||
| Max.Reach(Foam): | 42 meters @1440LPM,48 meters @1920LPM ,55 meters @2400lpm (@ 30 Degree,1.2 Meters To the Ground.Wind Speed ＜2m/s). | ||||||
| Foaming Expansion | ≥ 6 times, upon foam type | ||||||
Note: The throw range of the self-inducting air-aspirating foam monitor nozzle is 10% shorter than the specified range in the table
Petrochemical
Fuel/Oil Storage Tank Area
Oil Rig
Airport & Hanger
Fire & Rescue Services
Fire Truck
Wildland Forest
Marine & Offshore
A Self-Inducting Monitor Foam Nozzle is a specialized firefighting tool designed to effectively combine water and foam concentrate for powerful fire suppression, ideal for tackling flammable liquid fires.
It offers efficient foam generation, quick deployment, and excellent reach, enhancing firefighting safety and effectiveness while minimizing water damage.
Yes, the Monitor Nozzle is suitable for outdoor use and is resistant to weather conditions.
It is perfect for Class B fires involving flammable liquids such as gasoline, oil, and chemicals, providing fast and thorough fire knockdown.
Yes, the nozzle is designed for user-friendly operation with smooth controls, ensuring firefighters can focus on safety and effectiveness during emergency response.
⚠️
- Designed for use with fire monitors – not suitable for handheld use
- See Instruction before use.
- Scheduled maintenance is necessary.
- It's used for Class A/B Fire.
3
Materials
Lightweight anodized aluminum alloy
Wear-resistant brass alloy
Anti-corrosion stainless steel 304/316
3
CONTROL TYPES
Manual Control
Electric Remote Control DC24V
Explosion-proof Electric Remote Control DC24V / AC 220V
5
SERIES
Smoothbore,Stacked Tips & Deluge Tip
Constant Flow
Selectable Flow
Automatic(Constant Pressure) Nozzle
Monitor Foam Nozzle
