Portable Fire Monitor Foam

Product Introduction:

The PSY20-40 Portable Monitor is manufactured in lightweight aluminium and designed for flows up to 2400 LPM (650 GPM) with adjust nozzle.

Send Inquiry

Description

Technical Parameters

Product Description

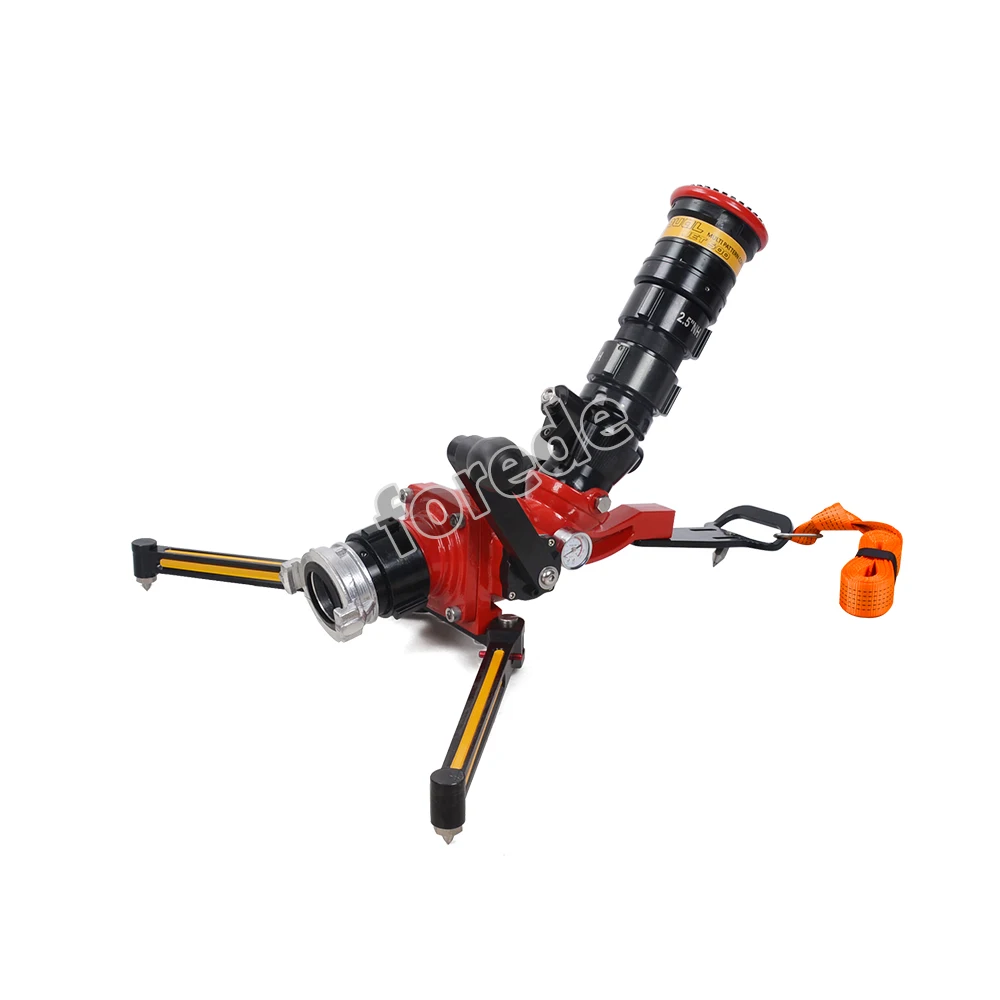

PSY20-40 Portable Fire Monitor

Forede brand PSY20-40 Portable Fire Monitor is generally used in the fire truck .air port,industry place such as oil field ,warehouse,etc. fire fighting water monitor

-Hard Anodized Aluminum Alloy construction
-Adjustable Nozzle from 1200 LPM - 1800 LPM - 2400 LPM
-Vertical travel of 50°,from +30° to +80°
-360° rotation horizontally
-Nozzle: Straight stream,Fog
fire fighting water monitor

Detailed Image

Specification

PSY30-80 Portable Fire Monitor
Body Material	Hard Anodized Aluminum Alloy
Working pressure	10 Bar
Max. working pressure	16 Bar
Jetting Range	65 meters @ 10 bar, 2400LPM
Max. Fog angle	120°
Flow Range	30 - 80 LPS,automatic nozzle
Range of the monitor	360°rotation horizontally,30°- 80°Elevate vertically
Inlet	2.5" ,NH, STORZ, GOST, Instantaneous couplings,etc.
Outlet	2.5" NH
Weight Approx.	12KGS

Order Information

Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.

* Contacts: Email: sales1@forede.com  I  Tel/WhatsApp: 008613107856309  I  Wechat: 13107856309

Hot Tags: portable fire monitor foam, China, manufacturers, suppliers, wholesale, price, Remote Ground Fire Monitor, Pistol Grip Fire Hose Nozzle, Fire Ground Monitor Dual Inlet, Self Oscillating Portable Monitor, Quick Attack Monitor, Remote Control Ground Fire Water Monitor

1) Hard Anodized Aluminum construction.

2) Adjustable nozzle.

3) Available for straight jetting and fog spray.

4) 20°swing left and right from the center,30°- 80°Elevate

5) Easy to service and repair.

6) Light weight 11.5 KGS.

7) Compatible with Quick Attach Foam Tube.
