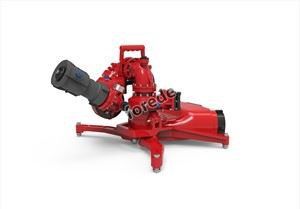

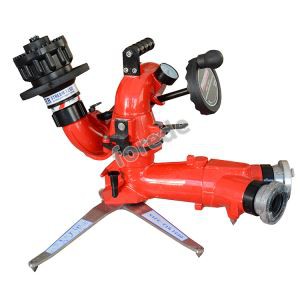

PSY20-40B Portable Ground Fire Water Monitor is made of hard anodized aluminium alloy, with a constant fire nozzle, the flow rate can reach 2400LPM. Also have adjustable fire nozzle to choose, the flow rate from 1200LPM to 2400LPM;
Portable ground fire water monitor is made of corrosion resistant alloy, and carbide-tipped spikes for extended resistance to wear, the dual spring-loaded lock pins are quick and easy to breakapart.
Portable ground fire water monitor is an aluminium alloy construction with large pattern ring allowing production of full stream, wide and narrow angle fog;
The specification of portable ground fire water monitor as below:
Material | Body & Nozzle | Hard Anodized Aluminum alloy | ||
Spike | Anti-skidding tungsten steel | |||
| Model | PSY20B | PSY30B | PSY40B | PSY20-40B |
Flow Rate | 1200LPM | 1800LPM | 2400LPM | 1200-1800-2400LPM |
| Reach range | ≥53m | ≥60m | ≥65m | ≥65m |
Working pressure | 8 bar | |||
Max. Fog angle | 120° | |||
Range of the monitor | +30°~90°Elevate | |||
Water way size | 2.5" | |||
Inlet | 2x3" NH, STORZ, GOST, Instantaneous,etc. | |||
| Outlet | 2.5" NH | |||
FAQ:
Q:Whether the product supports OEM customization?
Yes. Please inform us formally before our production and confirm the design and other requirements firstly.
Q:How long does it take to produce the product?
Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.
Hot Tags: portable ground fire water monitor, China, manufacturers, suppliers, wholesale, price, Fire Ground Monitor Dual Inlet, Remote Ground Fire Monitor, Quick Attack Fire Monitor, Oscillating Monitor, Oscillating Portable Monitor, Remote Ground Fire Water Monitor
*Hard Anodized Aluminum Alloy construction
*Light weight;
*Designed to control fires or to provide sufficient water cooling capacity in tank farms, petrochemical installations,etc.;
*Large handle for excellent portability;
*Fully enclosed worm gear to protect from the elements;
*Liquid-filled pressure gauge
