Products Description

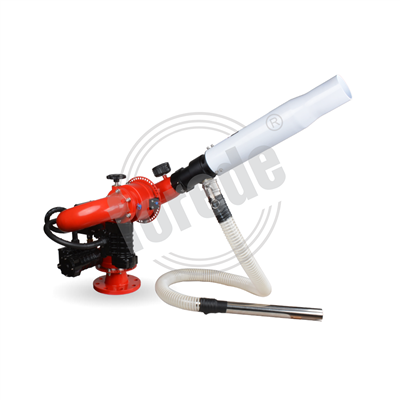

The Remote Control Portable Fire Monitor is a high-tech product that combines the advantages of traditional fire fighting equipment with modern intelligent technology. It has the characteristics of simple operation and fast speed. It can quickly arrive at the fire scene for fire extinguishing and rescue, effectively control the fire and avoid the spread of the fire.
In addition, Remote Control Portable Fire Monitor also has various functions such as automatic control, intelligence, and remote control. When a fire occurs, firefighters only need to control the fire cannon through the remote control to achieve precise water cannon orientation, and automatically adjust the water spray volume and direction according to the fire situation to achieve the best fire extinguishing effect.
The Remote Control Portable Fire Monitor has greatly improved the efficiency and safety of fire rescue, giving us more confidence and security to respond to sudden fire incidents. In the future, I hope that this high-tech product will continue to be innovated and improved to provide better technical support for the safety of people's lives and property!
Technical Parameter
| Model |
PSKDY40ZB
|
PSKDY60ZB
|
PSKDY80ZB
|
|
Flow Rate |
2400 LPM |
3600 LPM |
4800 LPM |
|
Working Pressure |
8 Bar |
8 Bar | 10 Bar |
|
Max. Reach |
65 meters |
70 meters |
80 meters |
|
Max. Fog Angle |
120° |
||
|
Max Range Of Motion |
-15° to +75° Vertically, 360° Rotation |
||
| turing Speed | 12°/ second rotation, 8°/ second vertical | ||
| Power supply | dC 24V is standard | ||
| power consumption | 24V@ 7.5A | ||
|
Waterway Size |
2.5'' (65mm) |
||
|
Monitor Outlet |
2.5'' nH male thread |
||
|
Monitor Inlet |
2X2.5" |
||
|
Material |
Monitor & Nozzle - Hard coated anodized aluminium alloy |
||
FAQ
Contact US
Our address
NO.278-1, MEITING VILLAGE, MEILIN SUB-DISTRICT, NAN'AN CITY, QUANZHOU CITY, FUJIAN PROVINCE, CHINA.
Phone Number
0086-13107856309 (whatsApp)
About US
QUANZHOU FOREDE FIREFIGHTING EQUIPMENT CO.,LTD.
Since company was found in 2003, FOREDEFIRE has evolved and grown from a small factory in the yard with the limited capacity to only make sprinklers, to a sophisticated and leading company.
In 2013, FOREDEFIRE establish production base in Sanduo Industry Park, Jiangsu PRC to develop and improve fire monitor, fire nozzle, foam system device, fire robot etc. Increased production and enhanced quality and cost control to accommodate our continuing growth
large enterprise scale
Efficient and precise processing and testing equipment.
Standardized Production
Passed ISO9001, CE certification and obtained relevant patent certificates.
High-Quality Customized Services
No intermediate links, providing one-stop service from design, processing, mold trial to mass production.
Work Shop View - Fire Nozzle & Monitor
Hot Tags: remote control portable fire monitor, China, manufacturers, suppliers, wholesale, price, Quick Attack Portable Ground Monitor, Portable Fire Fighting Monitor, Self Oscillating Portable Monitor, Quick Attack Fire Monitor, Automatic Oscillating Fire Monitor, Portable Ground Fire Water Monitor
1) SS304 construction.
2) 2400/3600/4800 LPM flow rate (constant flow).
3) Remote control nozzle pattern, for fog spray and straight jetting.
4) 360°rotation,-15°to + 75°Elevate
5) Easy to service and repair.
6) Wireless, remote control.
7) Light weight stable quality.
