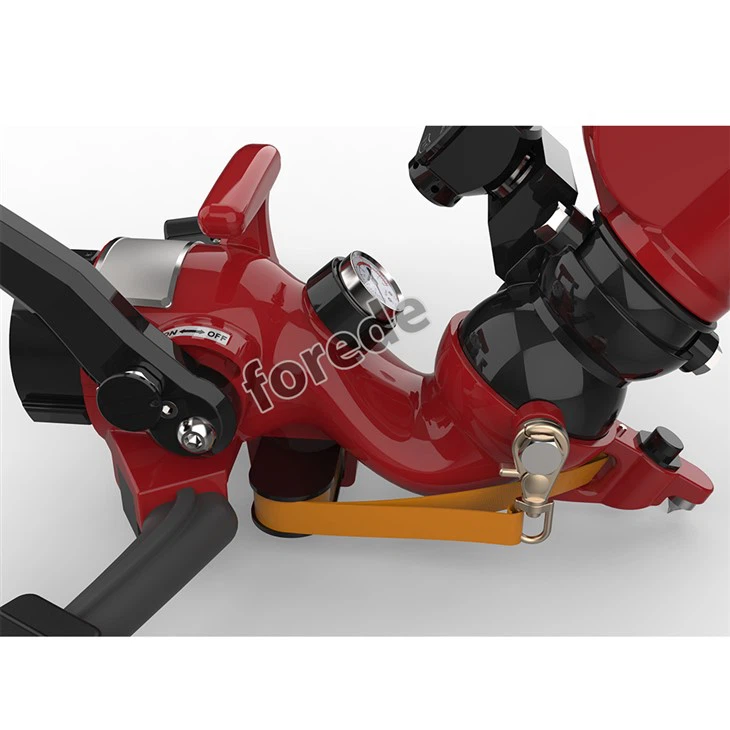

Self Oscillating Portable Fire Monitor

Self Oscillating Portable Fire Monitor
Product Introduction:
Forede brand PSY20-40ZB Automatic Oscillating Fire Monitor is generally used in the fire truck .air port,industry place such as oil field ,warehouse,etc. fire
Send Inquiry
Description
Technical Parameters

1.Carbide-tipped spikes for extended resistance to wear;
2.Large handle for excellent portability;
3.Fully enclosed worm gear to protect from the elements;
4.Liquid-filled pressure gauge;
5.Dual spring-loaded lock pins for quick and easy breakapart;
6.Spring-loaded forged Aluminium folding legs;
7.Compatible with a wide range of nozzles and accessories;
8.Made from corrosion resistant corrosion resistant alloy;
9.Designed to control fires or to provide sufficient water cooling capacity in tank farms, petrochemical installations etc.
10.Complete with movement locking devices;
11.Fited with an infinitely adjustable monitor nozzle tip with flow setting of 1200-1800-2400LPM adjustable nozzle;

12.Constructed with large pattern ring allowing production of full stream, wide and narrow angle fog;

230-3



PSY8/20-40W-B Automatic Oscillating Fire Monitor
Model
PSY8/20W-B
PSY8/30W-B
PSY8/40W-B
PSY8/20-40W-B
Flow Rate
1200LPM
Constant Flow
1800LPM
Constant Flow
2400LPM
Constant Flow
1200-1800-2400LPM
Adjustable Flow
Reach Range
≥53m
≥60m
≥65m
≥65m
Body Material
Hard Anodized Aluminum Alloy
Working Pressure
8 Bar
Max. Fog angle
120°
Overall Angle
360°rotation horizontally,+30°~ +90°Elevate vertically
Inlet
2.5'' ,NH, STORZ, GOST, Instantaneous couplings,etc.
Outlet
2.5" NH
Weight Approx.
12KGS



FAQ:


Q:How water pressure important?

A: Water pressure controls how far and how fast water moves as well as how deeply water penetrates burning materials. For firefighting, more flow rate of water available means more extinguishing agent to cool the fire's fuel. Each nozzle has an expected, or rated, gallonage at a rated pressure. For example, a nozzle may deliver 60 LPM at 6 Bar, and 475LPM at 7 Bar.

Q: What is your term and payment?

Payment<=1000usd, in="" advance.="" payment="">=1000USD, 30% T/T in advance ,balance before shippment.

Q:How to make fixed fire water monitor stable?

There're Vertical & Horizontal lock which allow the operator to fix the monitor stablely and swing to any position.
