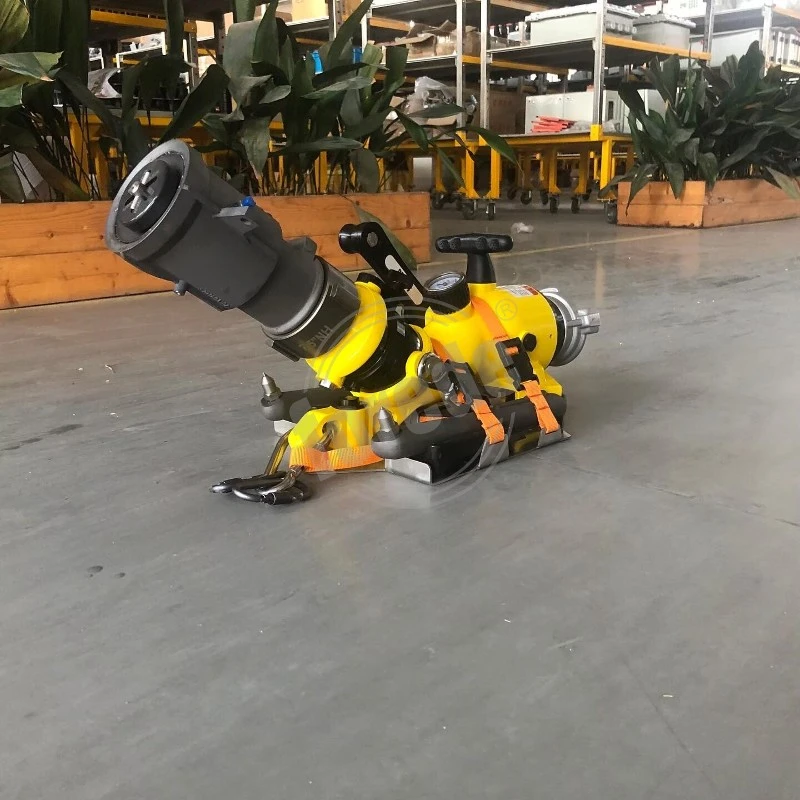

Single Inlet Portable Fire Monitor
FOREDE Single Inlet Portable fire monitor PSY20-40 is mainly used on large fires where copious quantities of water are required or in circumstances when it is necessary to leave a large working jet in a danger position. Its flow range is up to 2400 LPM (650 GPM) with adjust nozzle.
Quick Attack Portable Monitor is made of aluminium alloy.
Stream shaper is available and ensure reaching expected range.Inlet coupling is hose anti-knot ,40° rotation, stainless steel ball valve built-in for long service life.Foam attachment is available for foam fire fighting.
Technical Parameters:
| Model | PSY20-40 |
| Working Pressure | 8 Bar |
| Flow Rate | 1200-1800-2400LPM(Adjustable) |
|
Jetting Range @ 10 bar |
45-65 m @ 2400 LPM |
|
Max. Fog Angle |
120° |
|
Horizontally |
20° left and right from the center |
|
Water Way Size |
2.5" |
|
Inlet |
2.5" GOST,STORZ,Instantaneous,NH,etc (Optional) |
|
Outlet |
2.5" NH |
Light Weight
Working Pressure
Adjustable Flow
warranty
do you have any question?
Q. Is it OK to OEM ?
A: Yes. Please inform us formally before our production and confirm the design and other requirements firstly .
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. Do you have any MOQ limit?
A: For conventional products, Low MOQ, OEM products request 30-40days.
Q. What about the lead time?
A:Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Main Product:
Order Information:
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you
Hot Tags: single inlet portable fire monitor, China, manufacturers, suppliers, wholesale, price, Portable Foam Monitor, Portable Ground Fire Water Monitor, Fixed Remote Fire Monitor, Quick Attack Ground Monitor, Quick Attack Portable Ground Monitor, Quick Attack Portable Monitor
Features:
-
Hard Anodized Aluminum alloy construction;
-
Flow Rate:1200 - 1800 -2400 LPM (Adjustable);
-
Jetting Pattern: Straight stream,Fog;
-
20°swing left and right from the center;
-
+30°to +80°elevate vertically;
-
Coupling standard: GOST,STORZ,Instantaneous,NH,etc
