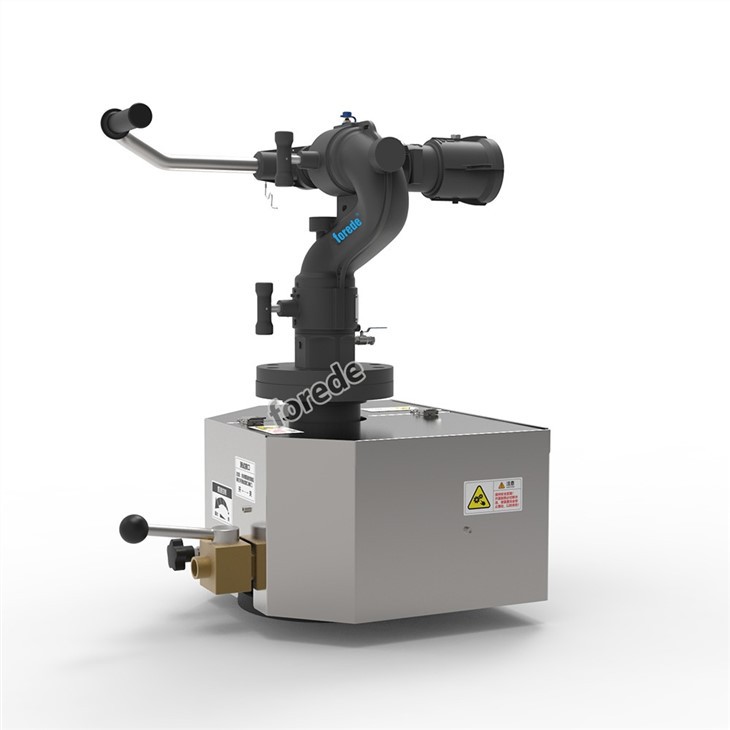

FOREDE Self-Oscillating Flange Device
The FOREDE oscillating flange device could play an important role in firefighting,when it is difficult for the firefighters to closing the fire or stay for a long time.The self-oscillating fire water cannon can use the pressure water source to drive the self-oscillating device of the fire water cannon to realize unmanned operation and protect firefighters.
|
|
|
|
| Model Number | OSC100-SX |
| Minimum W.Pressure | 2.8 bar |
| Maximum W.Pressure | 14 bar |
| Minimum Flow Rate | 600 LPM |
| Maximum Flow Rate | 4800 LPM |
| Oscillating Angle | 30° /60° /90°/120°/140°/165° Adjustable |
| Oscillating Speed | 3 round per minute |
| Inlet & Outlet | 4" DN100 BS4504 is standard,3" DN80 and other standard available |
| Weight | Approx. 25 KGS |
| Color | Red/Yellow/Natural stainless steel |
| Material | Body - Hard coated anodized aluminium alloy |
| Cover - SS304 Stainless steel |
FAQ:
Q. How do you deliver the goods and how long does it take to arrive?
A: We usually deliver mass order by sea and air, delivery time is depended on the carrier,urgent trail order usually deliver by
DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Railway also optional.
Q. Is it OK to OEM ?
A: Yes. Please inform us formally before our production and confirm the design and other requirements firstly .
Q: Do you offer guarantee for the products?
A: Yes, we offer 12 months warranty to our products.
Q: Can I have a sample order?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Order Information:
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
Hot Tags: self-oscillating flange device, China, manufacturers, suppliers, wholesale, price, Automatic Remote Control Fire Monitor, Spray Nozzles, Handline Nozzle
1) Aluminium alloy construction,stainless steel cover;
2) Easily transforms a manual monitor to a oscillating monitor;
3) Totally water-powered,without any electricity power;
4) Oscillating angle adjustable;
5) 4 inch inlet and outlet flange;
6) Flange standard: BS4504,ANSI150,GB,etc.
