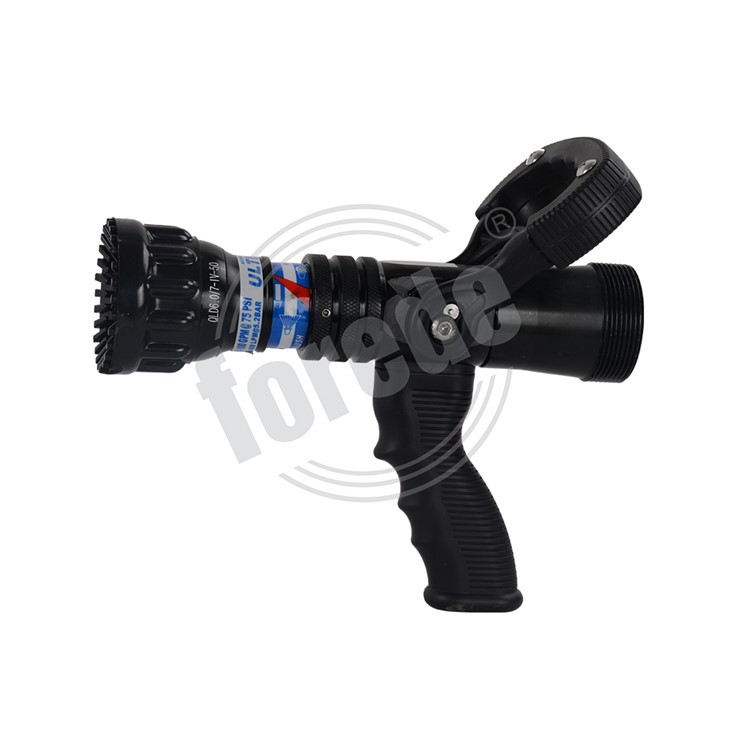

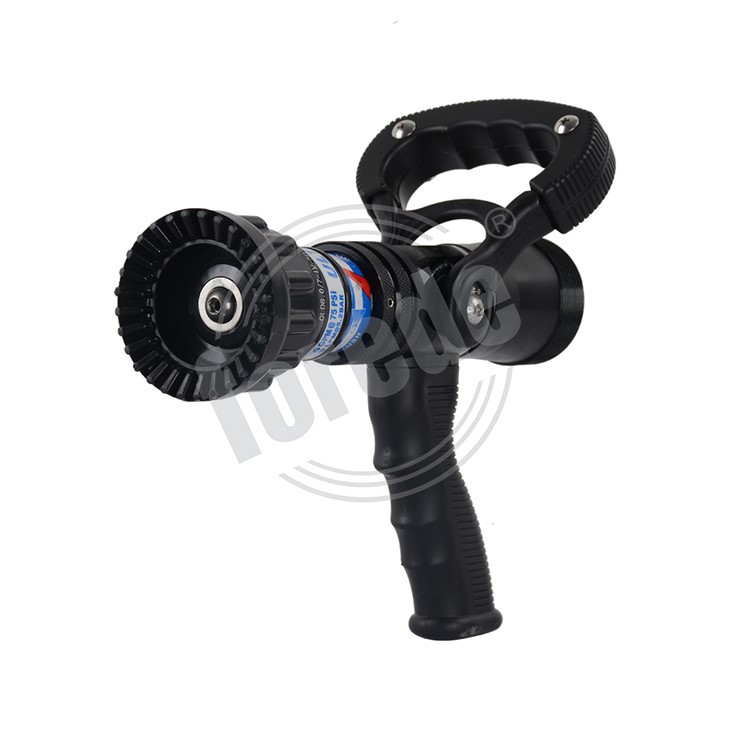

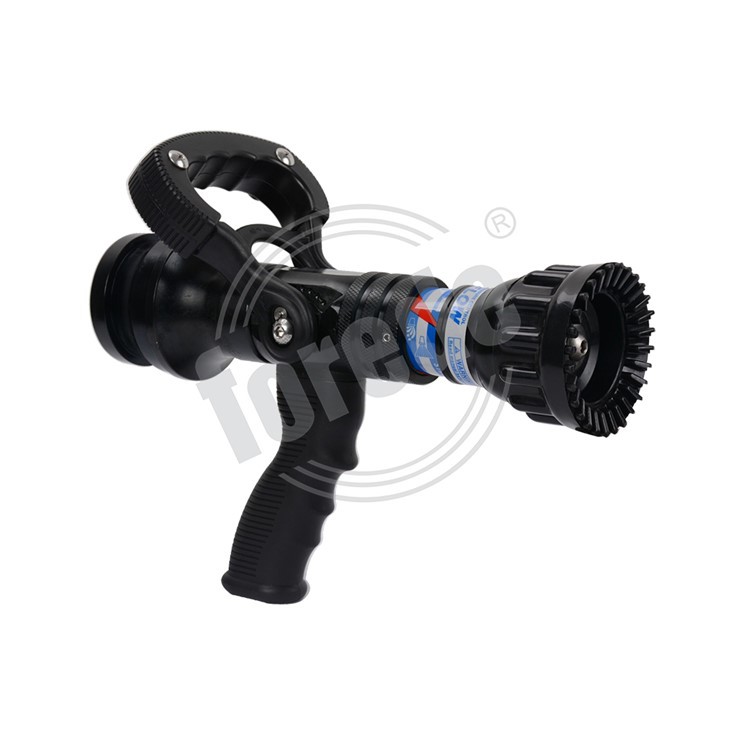

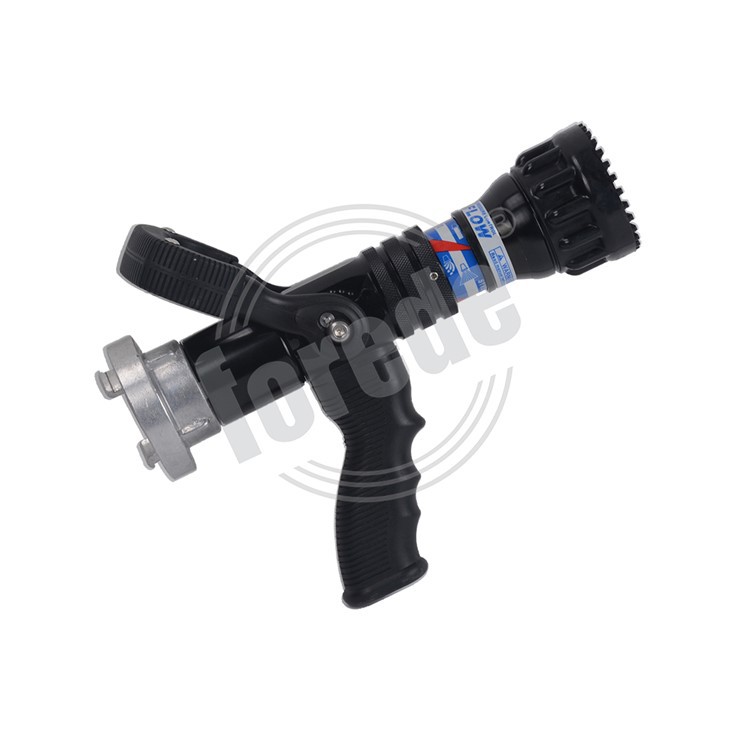

This manual describes nozzles calibrated at 7 bar, QLD6.0/7IV automatic fire nozzle is economical, and dependable nozzles. Their rugged construction is compatible with the use of fresh water as well as firefighting foam concentrate. Other operating features include:
• Quick-acting pattern control from straight stream to wide fog
• Fixed fog teeth;
• Quick-change fire hose coupling;
Specification:
the flow rate of QLD6.0/7IV is a range from 40-400 LPM;
40-400LPM Fire Nozzle is an selectable flow fire nozzle;
This fire nozzle has the advantages of low reaction force, once operated, the flow and jet state can be adjusted according to the fire fighting needs, and it is convenient to straighten out the twisting and knotting phenomenon of the hose;
the coupling standard of fire hose nozzle has INST; NH;GOST;STORZ;etc;
the max. fog angle can reach 120°, and the max. jetting range can reach 40 meters;
while, fire hose nozzle is made of hard anodized aluminium alloy, is lightweight;
a pistol grip which is convenient for firefighters.
Dimension:
1)Slide Valve Handle is to open or close the flow;
2) Head Bumper also called pattern adjustment, this part is to change the jetting pattern between fog and straight stream;
3) Pistol Grip which is a part convenient for firefighters carrying on;
4) Coupling is 360°rotation.
FAQ:
Q:How long does it take to produce the product?
A: Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.
Q:Whether the product supports OEM customization?
A:Yes. Please inform us formally before our production and confirm the design and other requirements firstly .
Hot Tags: different types of fire nozzles, China, manufacturers, suppliers, wholesale, price, Fire Fighting Gun Nozzle, Adjustable Flow Fire Nozzle, Pistol Fire Nozzle, Dry Fire Sprinkler Heads, Attack Fire Nozzle, Fire Fog Nozzle
Flow Rate: 40-400LPM(Automatic flow);
Jetting Pattern: Straight stream,Narrow fog,Wide fog,Flush ;
1/4 turn from straight stream to wide fog ;
360° Swivel inlet, full time, even after tightening ;
Compatible with Quick Attach Foam Tube ;
Coupling standard: Storz,NH,INST,GOST,Machino,etc.
