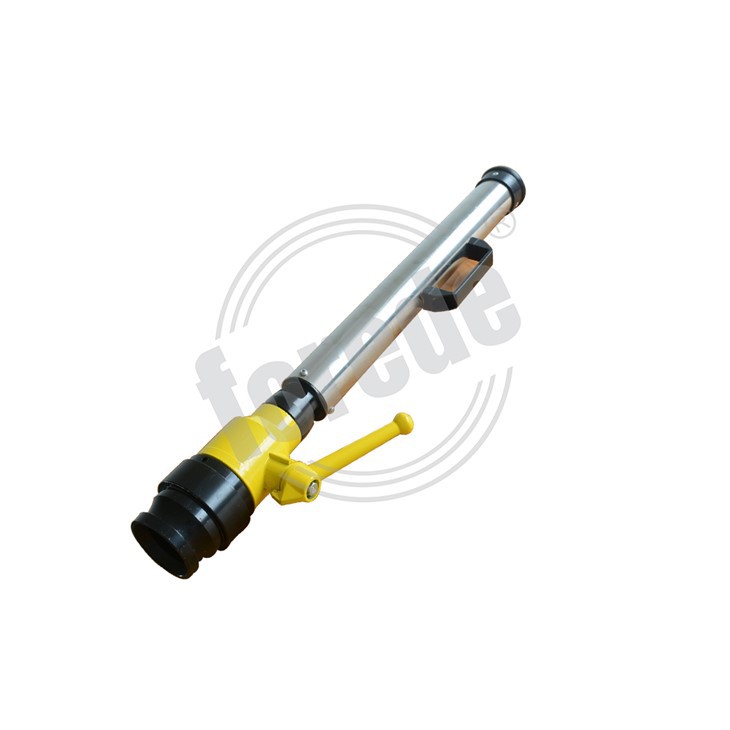

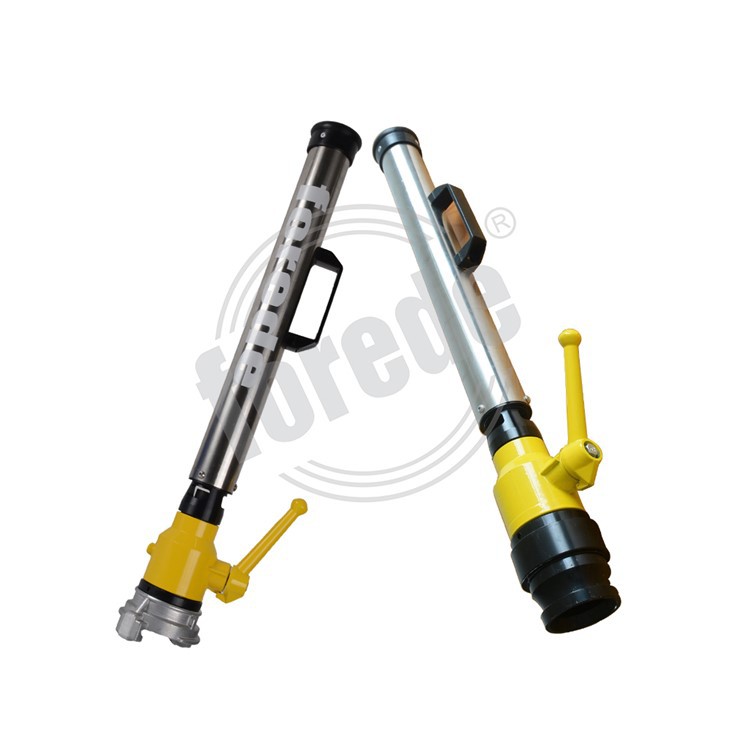

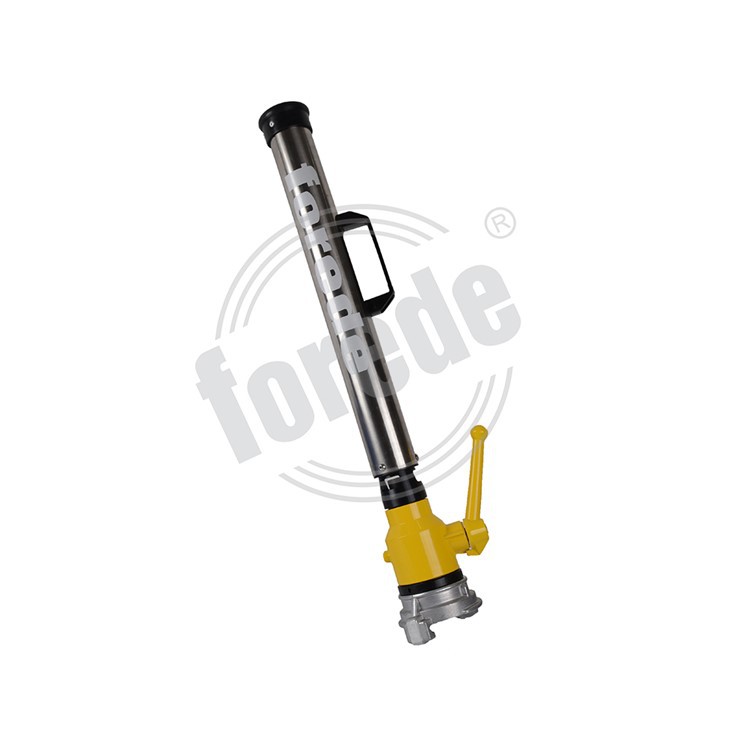

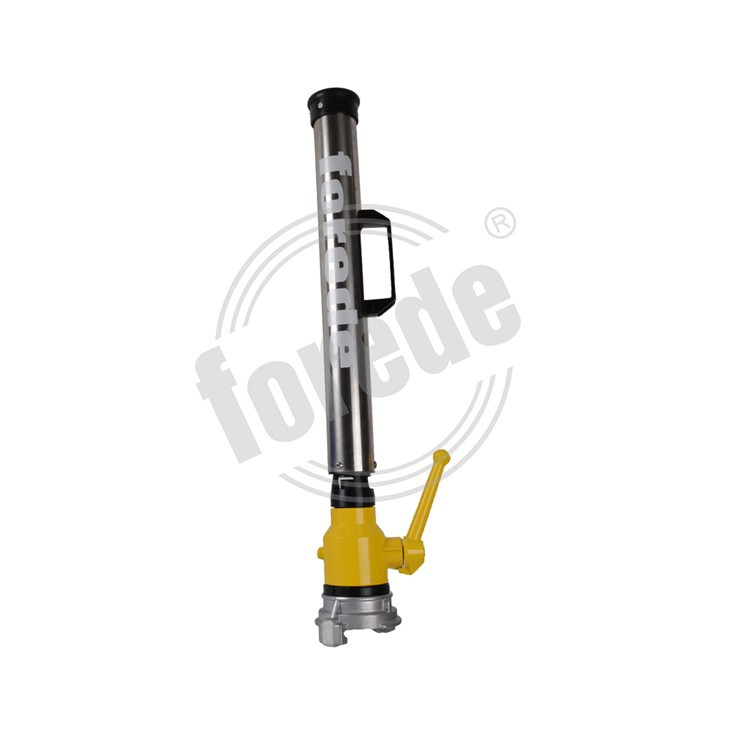

2.5 Inch Low Expansion Branch Pipe Foam Nozzle
FOREDE PQB Low Expansion Foam Branch Pipes have been designed to perform well with all types of foam concentrate, offer longer throw and superior cooling compared to medium expansion foam Branch Pipes. These are available with or without self-induction. Self-inducting model is supplied with foam pick-up tube and stainless steel piercer. Non self-inducting model is fully compatible with Variable Inline Foam Inductors which are available separately.
Forede Foam Branch pipes are air aspirated nozzles for application of foam solution. They have been developed to combine superior throw with the ability to produce stable, cohesive foam. The unique design of these branch pipes results in the required expansion of the foam, ensures proper mixing in the tube & at the same time provides higher velocity to the emerging foam stream, giving excellent range.
Material | Nozzle | Stainless Steel | |
Valve |
Aluminum Alloy | ||
Body |
Aluminum Alloy | ||
Model |
PQB4 |
PQB8 |
PQB16 |
Flow Rate |
240LPM |
480LPM |
960LPM |
Working Pressure | 0.7MPa | ||
Jetting Range |
≥24m |
≥28m | ≥32m |
Foam Expansion |
≥ 5 times |
||
Connecting Inlet |
1.5''(DN40),2''(DN50),2.5''(DN65) |
FAQ
Q:Whether the product supports OEM customization
A:Yes. Please inform us formally before our production and confirm the design and other requirements firstly .
Q: What is the minimum order quantity of the product?
A:For conventional products, Low MOQ.
Q:Can I have a sample order?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: How do you deliver the goods and how long does it take to arrive?
A:We usually deliver mass order by sea and air, delivery time is depended on the carrier,urgent trail order usually deliver by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Railway also optional. In fact, the delivery method depends on the quantity.
Hot Tags: pqb low expansion foam branch pipe, China, manufacturers, suppliers, wholesale, price, Foam Head Fire Fighting, Foam Nozzle Head, Foam Branch Pickup Tube, Medium Foam Branch Pipe, Medium Expansion Foam Nozzle Fire Fighting, AFFF
Features
1) Aluminum alloy construction.
2) 230/475/950 LPM flow rate.
3) Coupling : Storz, NH, John Morris,Gost, Machino,etc.
4) Light weight easy to operate.
5) Easy to service and repair.
6) Light weight stable quality.
Users
FOREDE PQB hand line foam branch pipe is a hand held nozzle used in all types of low expansion foam systems. It is generally used where the foam is required to be applied manually. The branch pipe is used to protecting loading racks, tank farms, chemical plants, spill fires, etc.
