Name: China Storage Tank Foam Chamber Manufacturers, Suppliers - Wholesale Price - FOREDE
Brand: FOREDE
SKU: 257204782

Description

Technical Parameters

Products Description

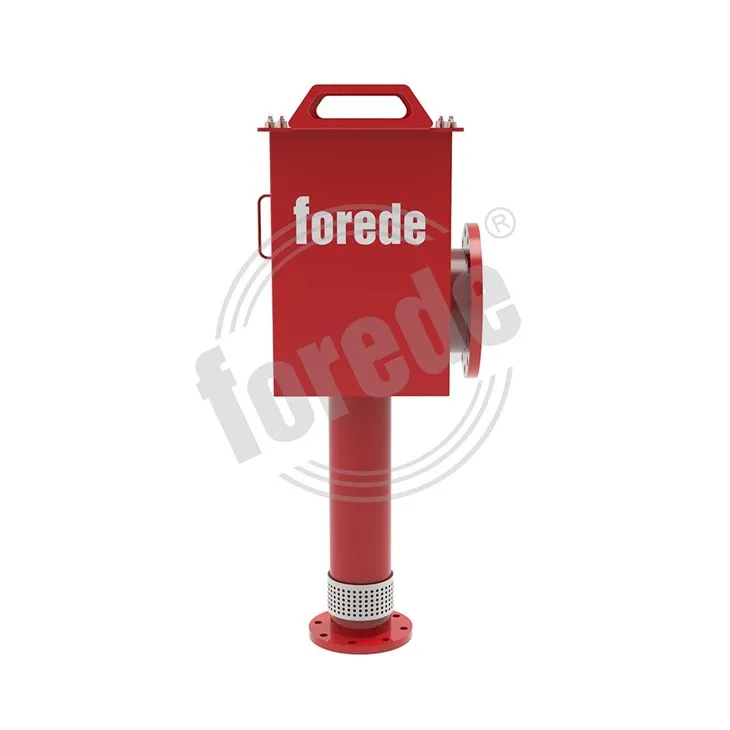

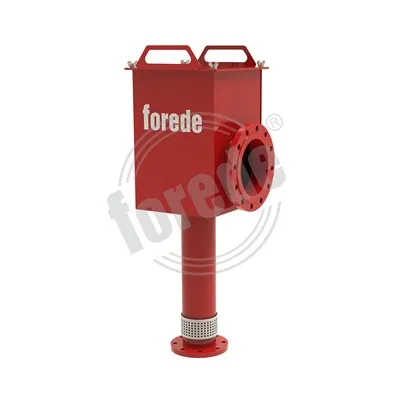

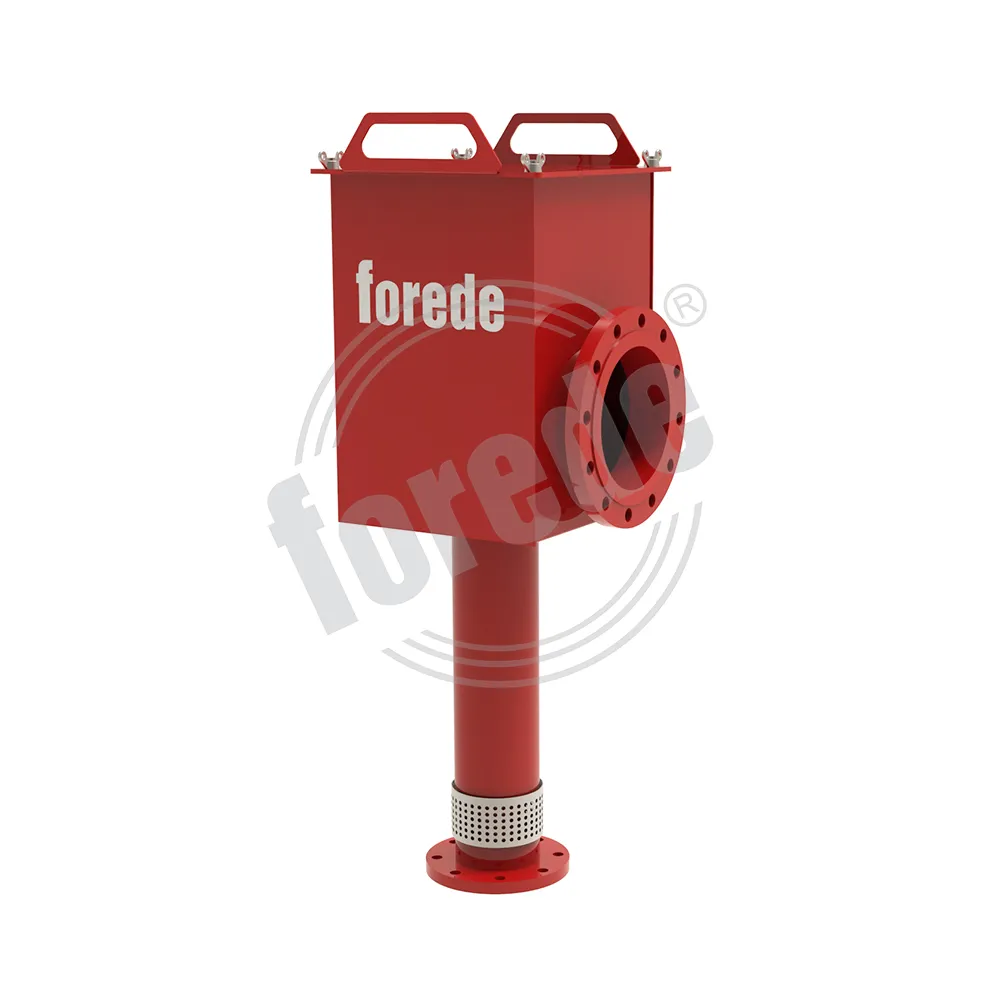

Storage Tank Foam Chamber

forede ® Storage Tank Foam Chamber is an essential component for ensuring the safety of storage tanks, especially those containing hazardous materials. It is designed to suppress any risks associated with fire incidents that may occur within the storage tank.

forede ® Storage Tank Foam Chamber works by delivering a layer of foam across the entire surface area of the storage tank. This foam serves as thermal insulation and helps cool the storage tank's surface, simultaneously preventing the release of hazardous materials and minimizing the risk of an explosion.

This component is typically designed to be a part of forede ® storage tank's fire suppression system, which is responsible for detecting any signs of fire and activating the foam chamber to deliver a blanket of fire suppression foam. These systems are critical, as they can effectively extinguish fires that could otherwise cause significant damage and loss of life.

Products Specification

Features

Flow Rate: 240/480/960/1440LPM

Material: Carbon Steel

Working Pressure: 0.7Mpa;

25% Liquid Drain Time: ≥120s

Flange End: ANSI/BS4504/GB

Surface Finshing: Epoxy Fire Red

forede ® Storage Tank Foam Chamber is used in one of the most common application to protect vertical fixed roof (cone) liquid storage tanks, with or without internal floating roof with the low expansion foam system. The application of foam is on the basis that the risk comprises the total surface area of the fuel.

Material	Carbon steel
Flow Rate	240/480/960/1440LPM
W.P.	0.7Mpa
25% Liquid Drain Time	-45° to +75° Vertically, 360° Rotation
Inlet Size	2"/2.5"/3" /4""

FAQ

1.What is a foam chamber?

Foam Chamber is designed to discharge expanded foam directly onto the surface of a flammable or combustible liquid for fire extinguishment. Classified as a Type II discharge device in accordance with NFPA Standard 11, foam chamber delivers low expansion foam directly onto the fuel surface.

2. What is the difference between foam pourer and foam chamber?

Foam chambers are a combination of a foam mixing chamber and a foam maker with an air inlet. A removable orifice plate is located between the flange inlet and solution pipe flange, and is sized to deliver the required foam solution at a specified pressure.

3. How to use the foam chamber?

To use a foam chamber, first make sure it is securely connected to the foam concentrate tank and water supply. Then turn on the water supply and activate the foam concentrate pump. The foam chamber will automatically mix the foam concentrate with water to create foam. Aim the foam at the fire, covering the base and any remaining flames. Remember to always follow instructions and safety guidelines when using firefighting equipment.

4. What are the advantages of foam chamber?

Foam chambers provide effective and efficient fire suppression capabilities for a range of industrial, commercial, and institutional applications. They offer advantages such as faster knockdown times, reduced water usage, and improved firefighter safety. Additionally, foam chambers are versatile and can be used to protect a variety of fire hazards, including flammable liquid storage tanks, aircraft hangars, and warehouses. Overall, foam chambers are a reliable and essential component of fire protection systems.
