Products Description

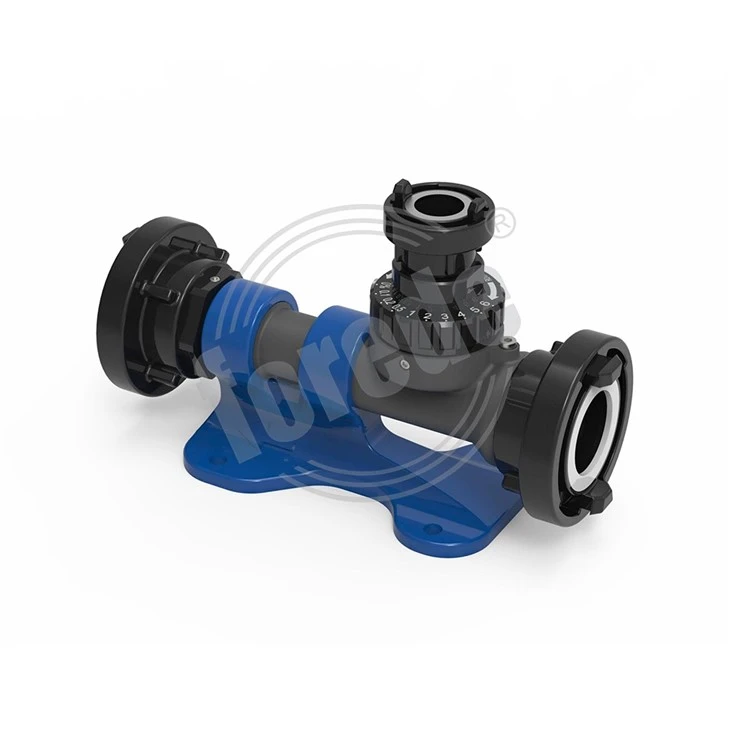

In Line Inductor Foam Mixer 2.5 Inch
forede ® In Line Inductor Foam Mixer 2.5 Inch is used to induct the foam liquid concentrate in water stream to supply proportioned solution of the liquid concentrate and water,to the foam producing equipment.The inductors are designed primarily for use in the fixed foam installation to provide a simple and reliable method of proportioning in constant flow applications.
forede ® In Line Inductor Foam Mixer 2.5 Inch is designed for a pre-determined water pressure to give the correct proportioning at that pressure and discharge rate.The increase or decrease of the inlet pressure will result in an increase or decrease in the flow rate,which in ture will change the proportioning.
Products Specification
Features
Adjustable Ratios from 0.1-0.2-0.5-1-2-3-4-5-6%
Hard anodized aluminum , Laser engraved
Simple to operate (Rotate mixing ring to adjust foam ratio)
Various connection methods, such as BS336, Storz, Gost, etc.
Compatible with DN25 suction tube
forede ® In Line Inductor Foam Mixer 2.5 Inch is designed for a pre-determined water pressure to give the correct proportioning at that pressure and discharge rate.The increase or decrease of the inlet pressure will result in an increase or decrease in the flow rate,which in ture will change the proportioning
| Material | Aluminium Alloy | |||
| MFlow Rate | 200LPM＆400LPM | |||
| W.P. | 72PSI (5 bar) | |||
| Max. W.P. | 205PSI (14 bar) | |||
| Mixing Ratio | OFF-0.1-0.2-0.5-1-2-3-4-5-6 % | |||
| Inlet Size | 2'' | |||
| Coupling | Storz, NH, INST, GOST, Machino, etc. | |||
FAQ
Frequently Asked Questions
What is the use of In Line Inductor Foam Mixer 2.5 Inch?
-
An eductor is a piece of equipment that introduces foam concentrate into your water stream. In the device, water enters an inlet and moves through a tapered section. It then moves through a small orifice and into a bigger chamber to create a low-pressure area within the large chamber
What is the advantage of using an in-line inductor in addition to a foam branch?
-
The advantages of the use of in-line inductors are: generally the cheapest induction system available; simple, robust and with few moving parts; quick deployment/redeployment on the fire ground; foam solution does not pass through the pump or appliance pipe work making clean up easier and reducing the possible
What is the Venturi effect of foam inductor?
-
In-line foam eductors work on the Venturi Principle. This principle uses extreme pressure loss inside the eductor to allow foam concentrate to flow up a pickup tube and into your water stream to create foam solution.
