Name: China PHF-B In- Line Foam Enductor Manufacturers, Suppliers - Wholesale Price - FOREDE
Brand: forede
SKU: 204349001

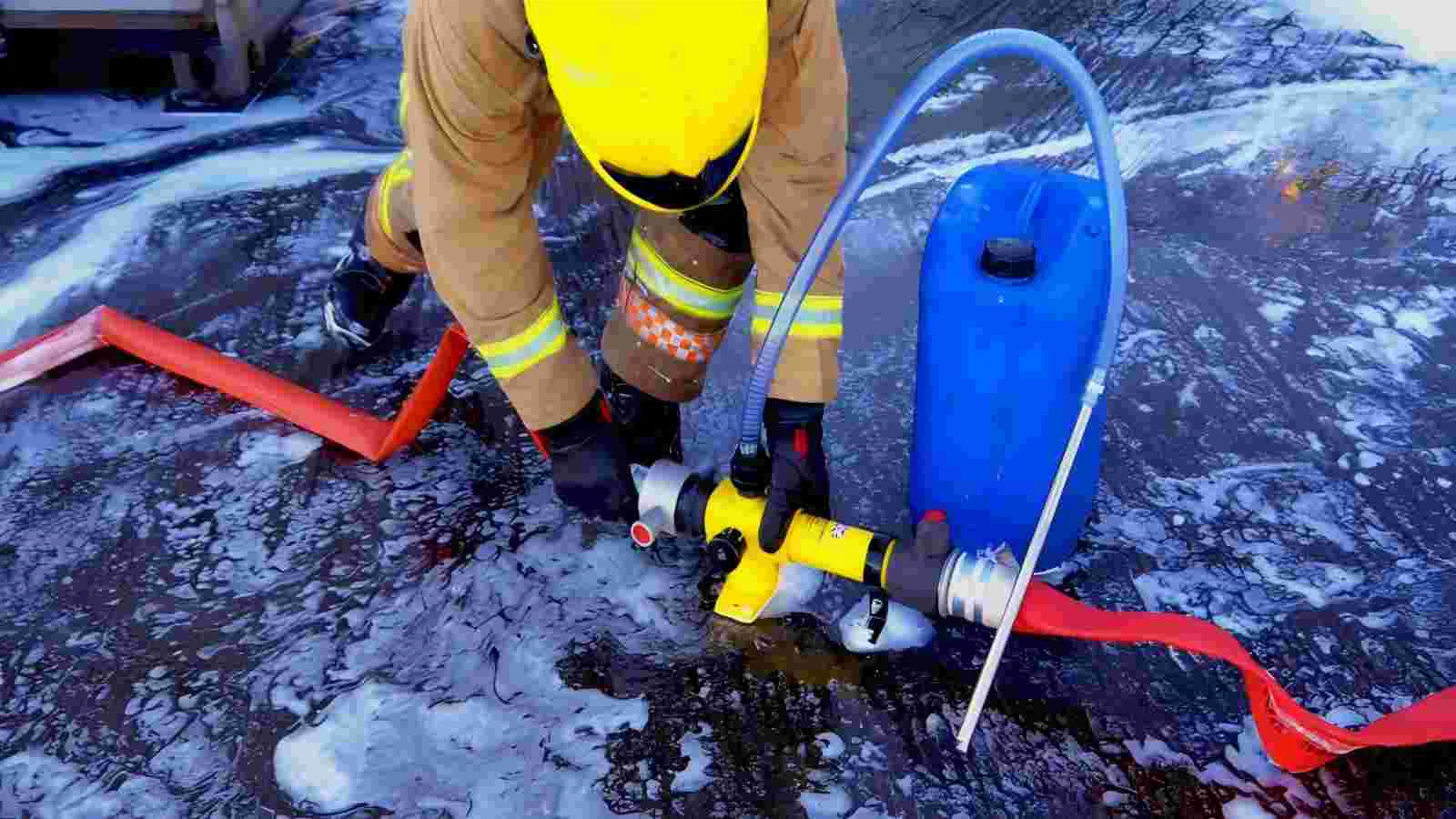

PHF-B In- Line Foam Enductor

Product Introduction:

In line Foam Eductors have a metering head with easy-read knob for use with Class A foam at .25% and .5% and with ARC-AFFF foam at 1%, 3% and 6% . Your choice of extra large 36" pickup hose with stainless steel wand or direct truck connect pickup hose are ideal for use with high viscosity foams. The meter head is equipped with a unique back flflush push-button for fast cleaning, and is secured to the eductor body with a rugged disconnect. All controls are easy to use with gloves. Made of hardcoat anodized aluminum for corrosion protection. The required inlet pressure is 200 psi. The maximum allowable back pressure is 130 psi.

Send Inquiry

Description

Technical Parameters

Products Description

In line Foam Eductors have a metering head with easy-read knob for use with Class A foam at .25% and .5% and with ARC-AFFF

foam at 1%, 3% and 6% . Your choice of extra large 36" pickup hose with stainless steel wand or direct truck connect pickup hose

are ideal for use with high viscosity foams. The meter head is equipped with a unique back flflush push-button for fast cleaning,

and is secured to the eductor body with a rugged disconnect. All controls are easy to use with gloves. Made of hardcoat

anodized aluminum for corrosion protection. The required inlet pressure is 200 psi. The maximum allowable back pressure is 130

psi.

Products Specification

The specification of this foam inductor as following shows:

Model Number

Working Pressure

Flow Rate

Connecting

Foam Solution Ratio

PHF/B4

0.6-1.4MPa

240 LPM

1.5"or 2.5"

0.25%,0.5%,1%,,3%,6%

(adjustable)

PHF/B8

0.6-1.4MPa

480 LPM

1.5"or 2.5"

0.25%,0.5%,1%,,3%,6%

(adjustable)

FAQ

Q:How long does it take to produce the product?

A: Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.

Q:Whether the product supports OEM customization

A:Yes. Please inform us formally before our production and confirm the design and other requirements firstly .

Q: What is the minimum order quantity of the product?

A:For conventional products, Low MOQ.

Q:Can I have a sample order?

A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
