Products Description

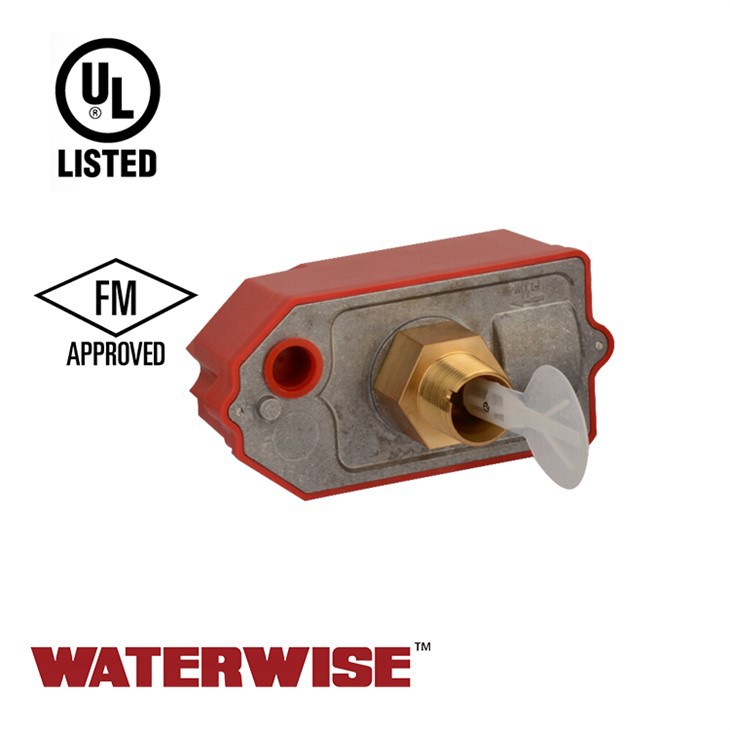

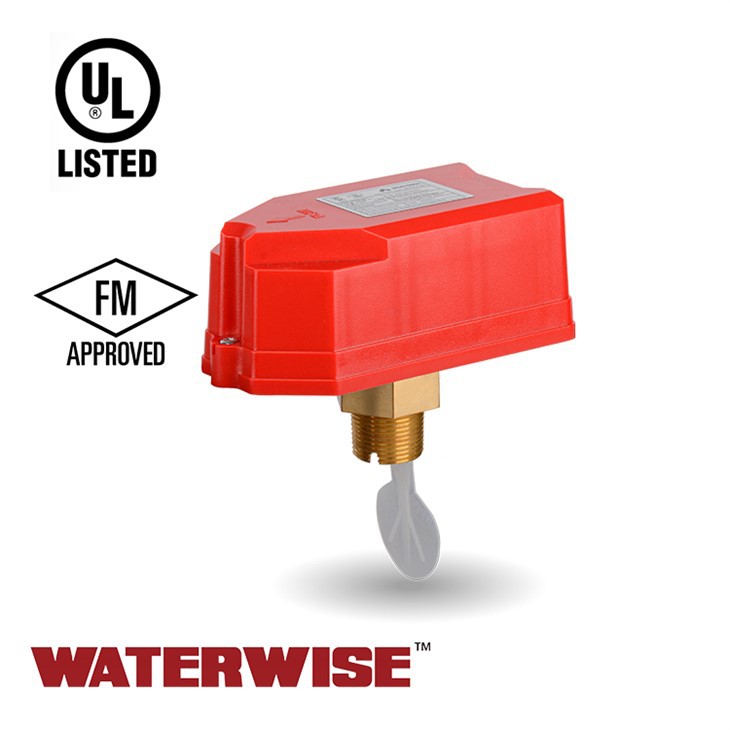

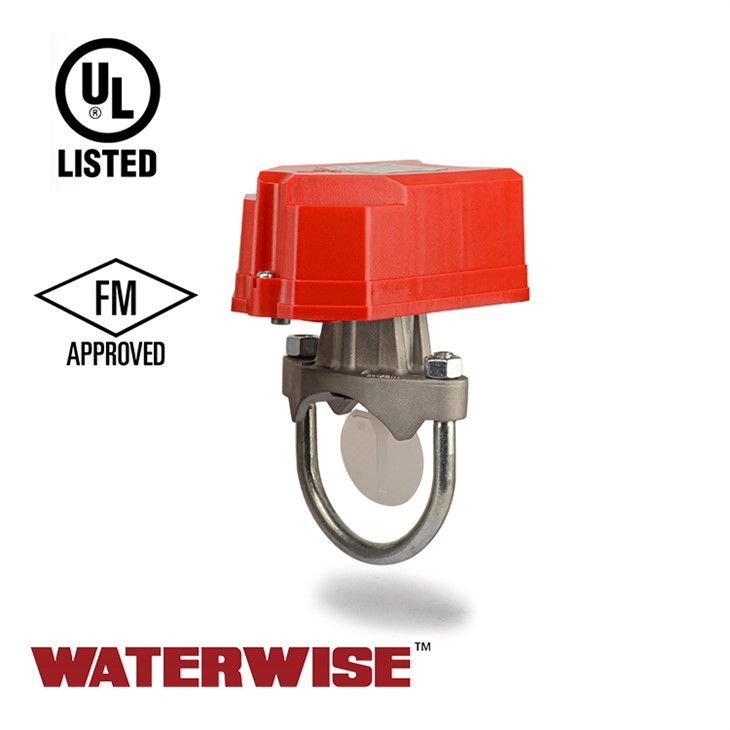

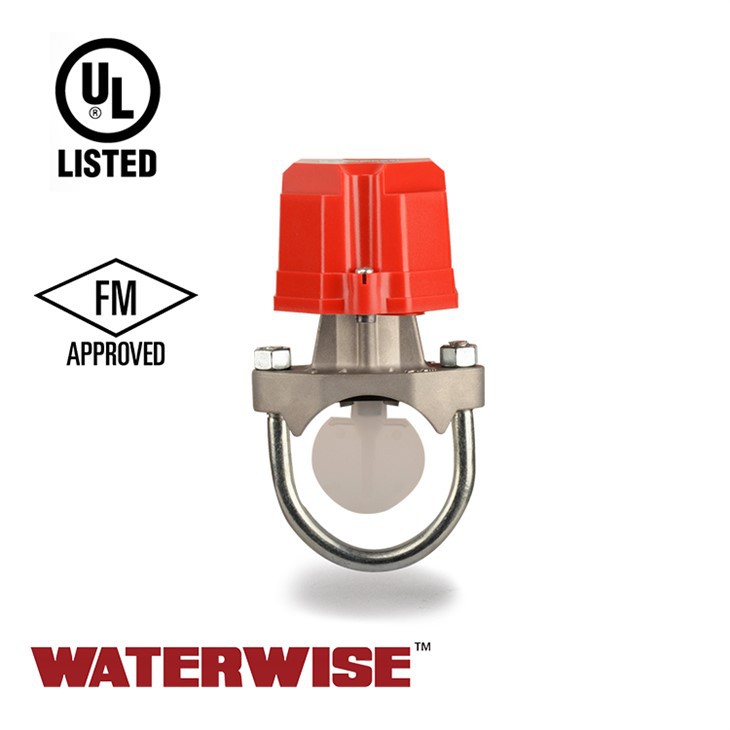

UL FM Water Flow Sensor
Water flow sensor is a device that is used to monitor the flow of water in a plumbing system. This switch is commonly used in industrial and commercial applications where it is vital to monitor water usage and detect potential leaks.
The mechanism of a water flow switch involves a paddle or impeller that is activated by the flow of water. As water flows through the device, the paddle moves and triggers an electrical switch that sends a signal to a controller or alarm system. This signal can be used to shut off the water supply, alert maintenance personnel, or trigger other safety measures.
- Contact Rating: 10A @ 125/250VAC ~ 3A @ 24VDC
- Flow Rate: 15 to 37.8L/min ( 4 to 10 gpm )
- Static Pressure Rating: 31bar ( 450 psi )
- Operating Temperature Range: 32 to 155℉ ( 0℃ to 68℃ )
- Compatible Pipe: Steel pipe, schedule 10 through 40 ( See chart below )
- Shipping Weight: 1.5 to 3.5 Kg (according to size )
- FM Approved; UL Listed
Type
Static Pressure
size
Warrnty
Specification
|
Model Number |
Pipe Size Nominal |
Pipe Schedule |
Working Pressure |
| VDRS50 | DN 50 ( 2 ) | 10 thru 40 | 31Bar ( 450Psi ) |
| VDRS65 | DN 65 ( 2½ ) | 10 thru 40 | 31Bar ( 450Psi ) |
| VDRS80 | DN 80 ( 3 ) | 10 thru 40 | 31Bar ( 450Psi ) |
| VDRS100 | DN 100 ( 4 ) | 10 thru 40 | 31Bar ( 450Psi ) |
| VDRS125 | DN 125 ( 5 ) | 10 thru 40 | 31Bar ( 450Psi ) |
| VDRS150 | DN 150 ( 6 ) | 10 thru 40 | 31Bar ( 450Psi ) |
| VDRS200 | DN 200 ( 8 ) | 10 thru 40 | 31Bar ( 450Psi ) |
| DN |
Dimension mm ( in ) |
DN |
Dimension mm ( in ) |
| 50 | 116 ( 4.6 ) | 125 | 195 ( 7.7 ) |
|
65 |
116 ( 4.6 ) | 150 | 225 ( 8.8 ) |
| 80 | 135 ( 5.3 ) | 200 | 270 (10.6) |
| 100 | 170 ( 6.7 ) |
Frequently Asked Question
Do You Have Any Question?
Q. Can I have a sample order?
-
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. What about the lead time?
-
A:Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Q. Do you have any MOQ limit?
-
A: For conventional products, Low MOQ, OEM products request 30-40days.
Q. What is your term and payment?
-
A:Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
Q. Do you have technical support?
-
A: Yes, we have a professional engineering team.
