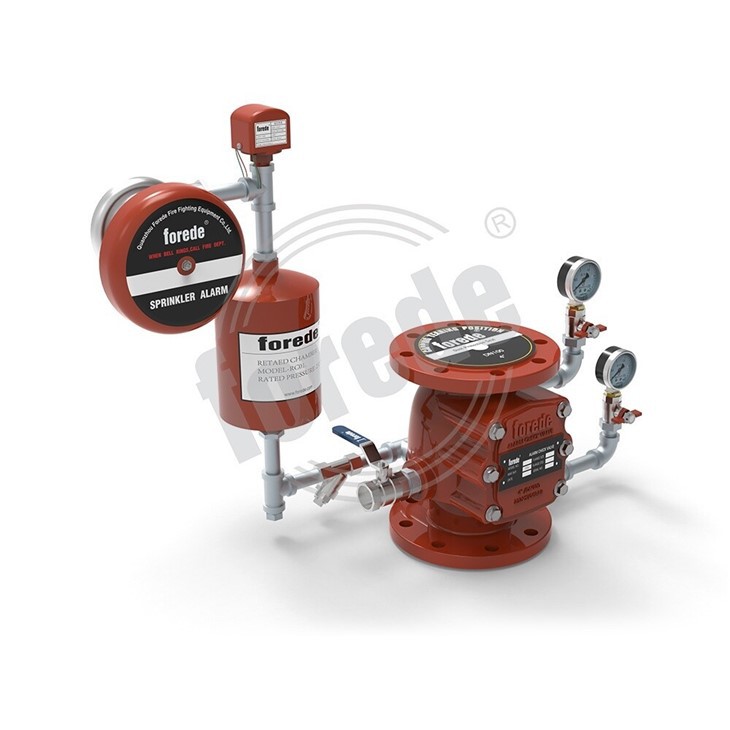

Forede Reliable Alarm Check valve
FOREDE Model FRD-AV1 Alarm Check Valve is a wet pipe sprinkler system water supply check valve that makes possible the installation of sprinkler systems in buildings not subject to freezing temperatures. It is designed so that water pressure in the piping system will hold back water pressure at the valve until a significant flow of water occurs such as a sprinkler is activated.
The Alarm Check Valve serves as a check valve by trapping pressurized water above the clapper and preventing reverse flow from sprinkler piping.
|
Material |
Body |
Ductile iron |
|
Clapper |
SS304 w/NBR |
|
|
Pipes |
SS304 |
|
|
Ball valve & strainer & check valve |
Brass |
|
|
Water motor gong |
SS304 |
|
|
Working pressure |
12 bar |
|
|
Sealing testing pressure |
24 bar |
|
|
Applicable temperature |
4°C to 70°C |
|
|
Installation |
Vertically |
|
|
Flow switch contact capacity |
DC24V,0.5A |
|
|
Connection |
Flange × Flange |
|
|
Available Size |
DN80 thru DN250 (3" thru 10") |
|
FAQ:
Q:What can you buy from us?
Fire Sprinkler system,Foam system,Fire Monitor,Fire Nozzle,Fire Valves,Fire Hydrants
Q:Is the sample provided for free?
A few small products like sprinkler decorative covers can be provided for free, but the buyer needs to pay for the shipping. Other products need to be confirmed according to the specific situation.
Q:How to mail the samples?
Small samples are usually sent by express (DHL, UPS, FEDEX, TNT). If the buyer has other opinions, both parties can discuss with each other.
Q:What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Hot Tags: forede reliable alarm check valve, China, manufacturers, suppliers, wholesale, price, Rubber Expansion Joints For Pumps, Flexible Disc Check Valve With Flange, Water Flow Switch, Oscillating Portable Monitor, Fire Fighting Water Monitors, Fog Spike Nozzle
1) Ductile iron construction valve body,less weight and extra strength.
2) Easy maintenance just require to disassemble the valve cover .
3) The all moving parts can be serviced without removing the valve from the installed position.
4) Simple design for easy installation and operation.
5) Vertical installation.
6) CCCF certificated.
