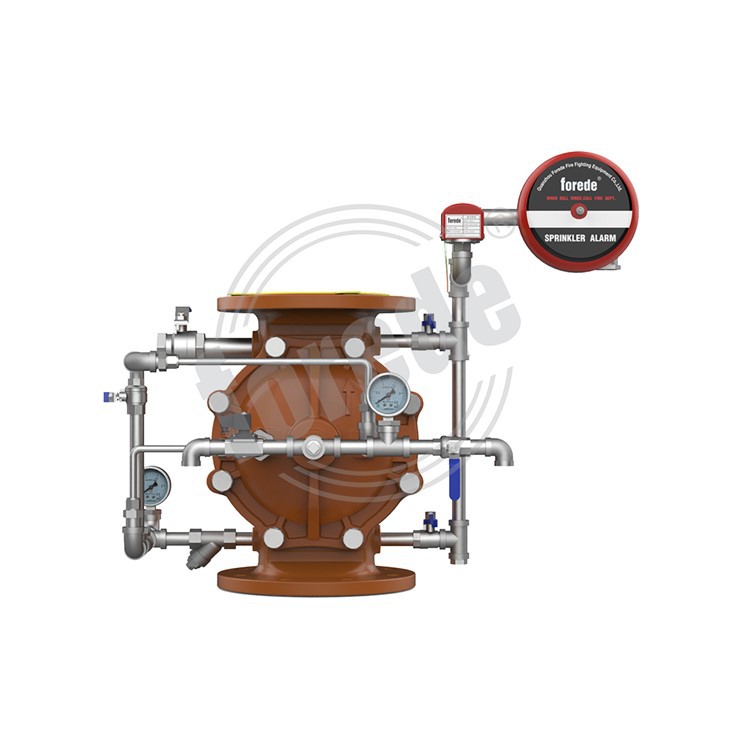

FOREDE Diaphgram Type Deluge Valve
Deluge valves are essential components of fire protection systems that work by controlling water flow. These valves are typically used in high-risk areas where fire hazards are present, such as chemical storage areas and aircraft hangars. Their primary function is to control the discharge of water from sprinklers or foam spray systems in the event of a fire.
|
Material |
Body |
Ductile iron |
|
Diaphragm |
NBR rubber |
|
|
Pipes |
Stainless steel 304 pipe,cooper pipe |
|
|
Ball valve & strainer & check valve |
Brass |
|
|
Water motor gong |
Stainless steel 304 |
|
|
Working pressure |
12 bar |
|
|
Sealing testing pressure |
24 bar |
|
|
Applicable temperature |
4°C to 70°C |
|
|
Installation |
Vertically or horizontally |
|
|
Flow switch contact capacity |
DC24V,0.5A |
|
|
Solenoid valve Voltage |
DC24V |
|
|
Connection |
Flange × Flange |
|
|
Available Size |
DN50 thru DN250 (2" thru 10") |
|
FAQ
Q. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. What about the lead time?
A:Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Q. Do you have any MOQ limit?
A: For conventional products, Low MOQ, OEM products request 30-40days.
Q. What is your term and payment?
A:Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
Q. Can I have a sample order?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Order Information
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
Hot Tags: deluge valve assembly, China, manufacturers, suppliers, wholesale, price, Flange Type Dry Alarm Valve, Groove Type Deluge Valves, Deluge Valve For Fire Protection, Groove End Deluge Valve
1) Ductile iron construction valve body,less weight and extra strength.
2) Available for electric operation,hydraulic operation,manual operation.
3) The all moving parts can be serviced without removing the valve from the installed position.
4) Simple design for easy installation and operation.
5) Vertical or horizontal installation.
6) CCCF certificated.
