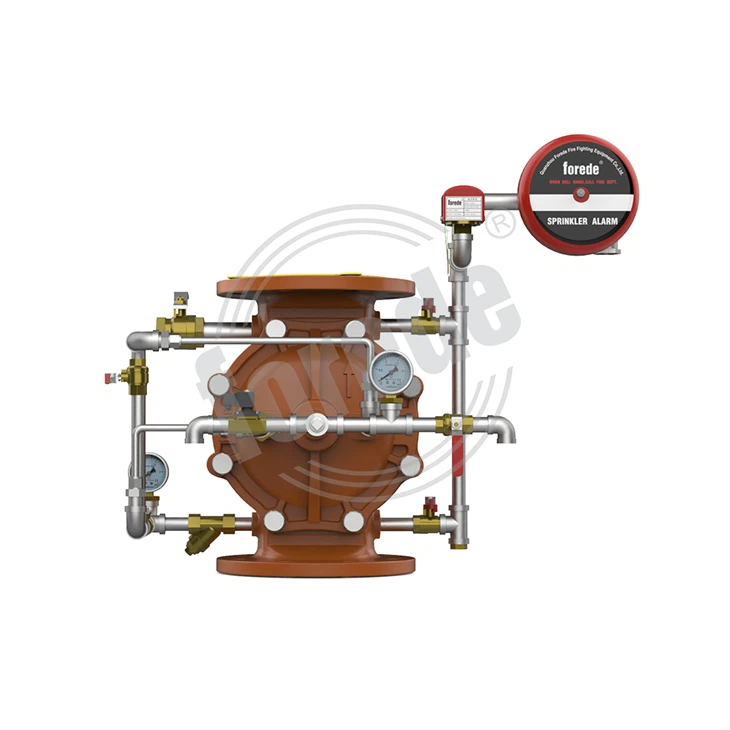

Diaphragm deluge valve "Diaphragm deluge valve is composed of valve body, valve clack, rubber diaphragm and so on. There are three cavities in the valve: inlet, outlet and top chamber. Normally, the top chamber and the inlet have pressure water, and the valve disc is in the closed position by the 2:1 differential pressure ratio. In the event of a fire, after any transmission device opens the electromagnetic pressure relief valve, the pressure in the top chamber drops rapidly, the valve flap opens, and water flows through the inlet to the outlet to fill the entire deluge pipe network.
Material | Body | Ductile iron |
Diaphragm | NBR rubber | |
Pipes | Stainless steel 304 pipe,cooper pipe | |
Ball valve & strainer & check valve | Brass | |
Water motor gong | Stainless steel 304 | |
Working pressure | 12 bar | |
Sealing testing pressure | 24 bar | |
Applicable temperature | 4°C to 70°C | |
Installation | Vertically or horizontally | |
Flow switch contact capacity | DC24V,0.5A | |
Solenoid valve Voltage | DC24V | |
Connection | Flange × Flange | |
Available Size | DN50 thru DN250 (2" thru 10") | |
Hot Tags: deluge valve for sprinkler system, China, manufacturers, suppliers, wholesale, price, Groove Type Deluge Valves, Flange Type Dry Alarm Valve, Groove End Deluge Valve, Deluge Valve For Fire Protection
1) Ductile iron construction valve body,less weight and extra strength.
2) Available for electric operation,hydraulic operation,manual operation.
3) The all moving parts can be serviced without removing the valve from the installed position.
4) Simple design for easy installation and operation.
5) Vertical or horizontal installation.
6) CCCF certificated.
