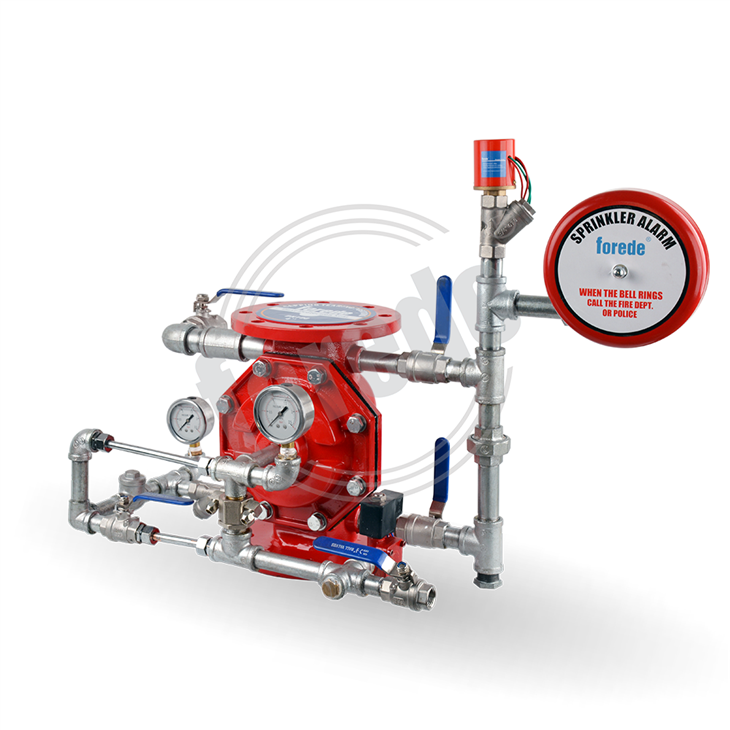

The Induction of Flange End Fire Deluge Valve
The working principle and function of the forede Flange End Fire Deluge Valve is to control the fire water storage in the building's fire protection pipeline to flow toward the sprinkler nozzle in one direction according to the fire situation. It is a timely and efficient fire valve.
The Specification of Flange End Fire Deluge Valve
| Material | Body | Ductile Iron |
| Clab | NBR Rubber | |
| Pipes | 304 stainless steel | |
| Ball Valve&Strainer | Brass | |
Retard Chamber | 304 stainless steel | |
| Water Motor Gong | 304 stainless steel | |
| Working Pressure | 16 bar | |
| Applicable Temperature | 4°C to 70 °C | |
| Installation | Vertically | |
| Flow Switch Contact Capacity | DC 24V ,5A | |
| Connection | Flange x Flange | |
| Available Size | DN80 thru DN250 | |
The FAQ of Flange End Fire Deluge Valve
Q1:Can I have a sample order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2:Do you offer guarantee for the products?
Yes, we offer 1 year warranty to our products.
Q3:What is your term and payment?
Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
Hot Tags: flange end fire deluge valve, China, manufacturers, suppliers, wholesale, price, Flange Type Dry Alarm Valve, Deluge Valve For Fire Protection, Groove Type Deluge Valves, Groove End Deluge Valve
1) Ductile iron construction valve body,less weight and extra strength.
2) Available for electric operation,hydraulic operation,manual operation.
3) The all moving parts can be serviced without removing the valve from the installed position.
4) Simple design for easy installation and operation.
5) Vertical or horizontal installation.
6) CCCF certificated.
