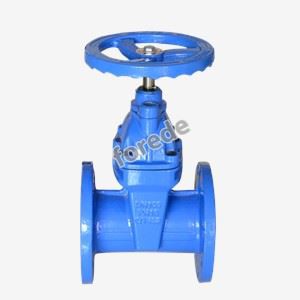

Flange End NRS Gate Valve

Product Introduction:

NRS Water Gate Valve is also called rotating stem gate valve (also called dark stem wedge gate valve). The valve stem nut is set on the gate. The rotation of the handwheel drives the rotation of the valve stem to lift the gate. Usually there is a trapezoidal thread at the bottom end of the valve stem. The thread on the bottom end of the valve and the guide groove on the disc will rotate the gate. It becomes linear motion, that is, the operating torque is changed to operating thrust.

Send Inquiry

Description

Technical Parameters

Production

Z45X Flanged Rising Stem Gate Valve For Water is widely used in various industries such as water supply and drainage, sewage treatment, construction of building, industry environmental protection, food production, medicine, chemical, paper making, ship building, oil etc for open/close or regulation of various non-corrosive or corrosive fluid, gas, powder pipeline.

Specification

Model Number	Inch	mm	Connection	Valve Type	Working pressure	Color
Z45-16Q-50	2	50	Flange End	NRS	1.0/1.6Mpa	Red/Blue
Z45-16Q-65	2.5	65	Flange End	NRS	1.0/1.6Mpa	Red/Blue
Z45-16Q-80	3	80	Flange End	NRS	1.0/1.6Mpa	Red/Blue
Z45-16Q-100	4	100	Flange End	NRS	1.0/1.6Mpa	Red/Blue
Z45-16Q-125	5	125	Flange End	NRS	1.0/1.6Mpa	Red/Blue
Z45-16Q-150	6	150	Flange End	NRS	1.0/1.6Mpa	Red/Blue
Z45-16Q-200	8	200	Flange End	NRS	1.0/1.6Mpa	Red/Blue
Z45-16Q-250	10	250	Flange End	NRS	1.0/1.6Mpa	Red/Blue
Z45-16Q-300	12	300	Flange End	NRS	1.0/1.6Mpa	Red/Blue
Z45-16Q-350	14	350	Flange End	NRS	1.0/1.6Mpa	Red/Blue

FAQ:

Q:What about the lead time?

A:Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.

Q: How To Order ?

A: Step 1, please tell us what model and quantity you need;

Step 2, then we will make a Pl for you to confirm the order details; Step 3, when we confirmedeverything, can arrange the payment; Step 4, finally we deliver the goods within the stipulated time.

Q: When will make delivery ?

A: Delivery Time

-Sample Order: 1-3 days after receipt of the full payment.-

Stock Order: 3-7days after receipt of the full payment

-OEM Order: 12-20days after receipt of the deposit.

3.After-sales Service

5 year warranty for all kinds of products;
