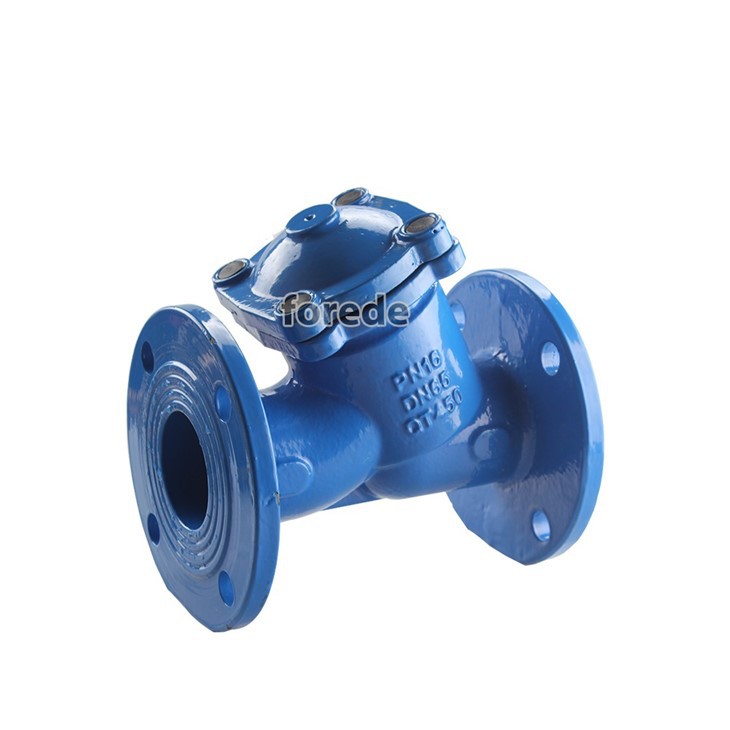

Forede GL41X Flange End Y Strainer
Flange End Y Strainer Strainers are designed to remove solid particles from the medium. This reduces levels of contamination and therefore maintains the quality of end product. Flange End Y Strainer are devices for mechanically removing unwanted solids from liquid, gas or steam lines by means of a perforated or wire mesh straining element. They are used in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment.
Flange End Y Strainer are very cost-effective straining solutions in many applications. Where the amount of material to be removed from the flow is relatively small, resulting in long intervals between screen cleanings, the strainer screen is manually cleaned by shutting down the line and removing the strainer cap.
For applications with heavier dirt loading, Y-Strainers can be fitted with a "blow-off" connection that permits the screen to be cleaned without removing it from the strainer body.
Flange End Y Strainer are used in a wide variety of liquid straining applications to protect downstream process system components in many industries, including chemical processing, petroleum, power generation and marine. Water handling applications, where Y-Strainers are used to protect equipment that could be damaged or clogged by unwanted sand, gravel or other debris, are very common.
Besides steam, Flange End Y Strainer are often used in air and natural gas applications. Here again, high pressures are not uncommon. However, unlike steam high air pressure does not automatically mean high temperature and so, ordinary carbon steel bodies of sufficient wall thickness will generally suffice.
Specification
|
Model number
|
Inch
|
mm
|
Connection
|
Valve
|
Working pressure
|
Color
|
|
GL41X-16Q-50
|
2
|
50
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X--16Q-65
|
2.5
|
65
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X--16Q-80
|
3
|
80
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X--16Q-100
|
4
|
100
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X--16Q-125
|
5
|
125
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X--16Q-150
|
6
|
150
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X--16Q-200
|
8
|
200
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X--16Q-250
|
10
|
250
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X-16Q-300
|
12
|
300
|
Flange End
|
Ball Type
|
1.0/1.6Mpa
|
red/blue
|
FAQ:
Q:Is the sample provided for free?
A few small products like sprinkler decorative covers can be provided for free, but the buyer needs to pay for the shipping. Other products need to be confirmed according to the specific situation.
Q:How to mail the samples?
Small samples are usually sent by express (DHL, UPS, FEDEX, TNT). If the buyer has other opinions, both parties can discuss with each other.
Q:What is your term and payment?
Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
Q:Do you offer guarantee for the products?
Yes, we offer 1 year warranty to our products.
