Products Description

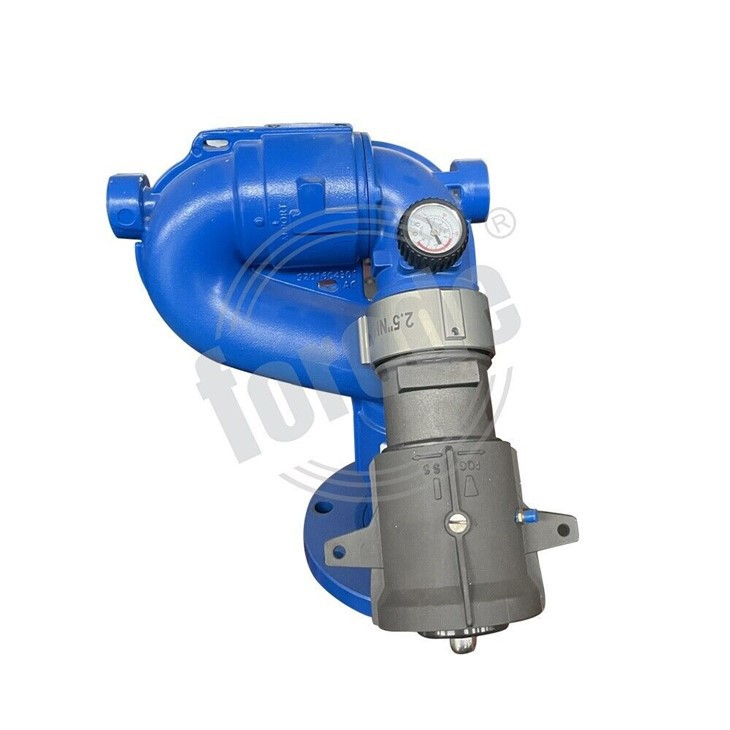

FOREDE ® PSKD8/_W-C Series cannon is a straight stream and fog, pulse integrated integrated cannon(Pulse model need equipped with air operated valve), with compact design to fit on the water spray truck, which can switch between SS/FOG and pulse modes in one nozzle, and can realize the dispersive spray of stimulants or dyes in a large area.
Products Parameters
|
Model Number |
PSKD8/20W-C |
PSKD8/30W-C |
PSKD8/40W-C |
PSKD8/20-40W-C |
|
Flow Rate |
1200 LPM Constant Flow |
1800 LPM Constant Flow |
2400 LPM Constant Flow |
1200-1800-2400 LPM Selectable Flow |
|
Working Pressure |
8 Bar |
|||
|
Max. Reach |
50 meters |
60 meters |
65 meters |
50-65 meter |
|
Max. Fog Angle |
120° |
|||
|
Max Range Of Motion |
-35° to +85° Vertically, 340° Rotation,other degree available |
|||
|
Power Supply |
DC 24V is standard |
|||
|
Power Consumption |
≤200W |
|||
|
Waterway Size |
2 1/2" (65mm) |
|||
|
Monitor Outlet |
2 1/2" (65mm) NH male thread |
|||
|
Monitor Inlet |
Flange 2.5" ANSI 150# is standard,other size and standard available |
|||
|
Material |
Monitor & Nozzle- Hard coated anodized aluminium alloy |
|||
|
Control System |
ICS-01 or VMCS-01 |
|||
Contact Us
Hot Tags: water cannon for truck, China, manufacturers, suppliers, wholesale, price
Aluminium alloy construction,hard anodized;
Constant or Selectable flow rate;
Vertical travel of 120°,from -35° to +85°;
340° rotation horizontally;
Electric control jetting Pattern: Straight stream,Fog;
Electric.driver and control unit box are waterproof;
Optional power supply 12V/24V DC(optional),or 100-230AC.
