Angle Thread Landing Valve

Angle Thread Landing Valve
Product Introduction:
Landing valve is designed to be installed on wet risers in buildings for fire fighting purposes. It is an important source of water which is crucial for fighting fires on any level of your building. They are installed on hydrants, a branch and hose is connected to a coupling on it. By rotating the wet riser landing valve handle anti-clockwise, you can simply activate the water flux in the fire hydrant system.
Send Inquiry
Description
Technical Parameters

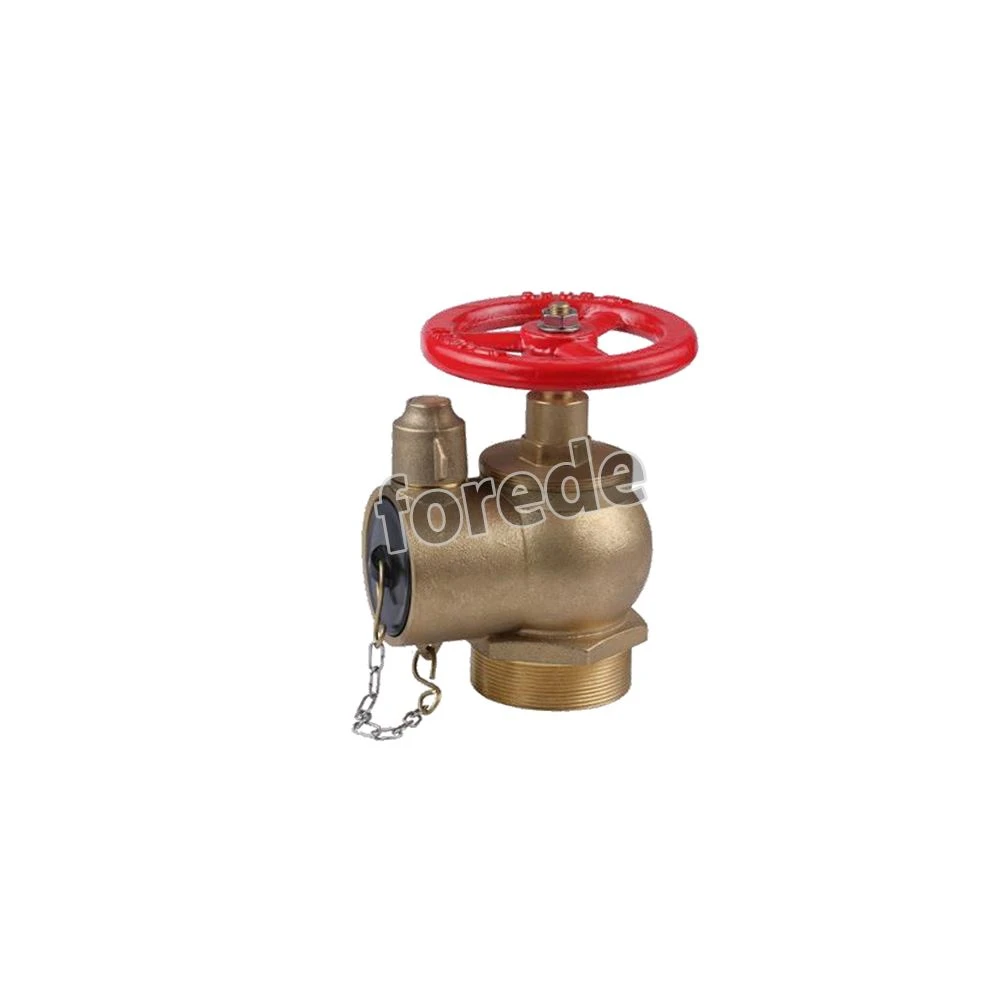

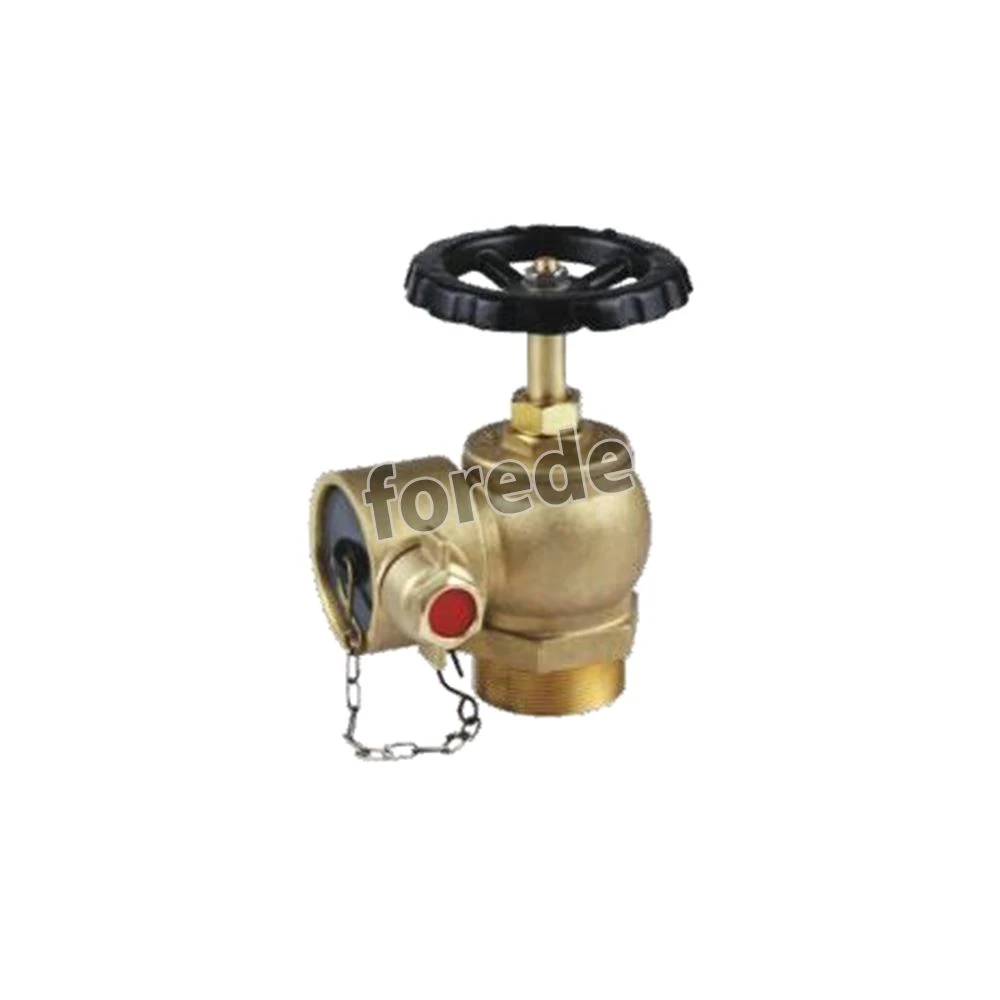

Angle thread landing valve -the model is FRD-RSA65/FRD-RSB65 is one of landing valves, the angle is right.

The body material is copper alloy, and the disc assembly is made of brass with rubber. The inlet connection standard is 2" BSP Male thread, also we have other standards, like BS Flange.

Angle thread landing valve is BS landing valve type, then the outlet standard is BS336 Female Inst. Actually, the outlet adaptor can be changed into GOST, STORZ,NH Thread.

1.png2



*Before you leave an order, please contact us to confirm what you need.


FAQ:


Q: What's landing valve?

Landing valve is designed to be installed on wet risers in buildings for fire fighting purposes. It is an important source of water which is crucial for fighting fires on any level of your building. They are installed on hydrants, a branch and hose is connected to a coupling on it. By rotating the wet riser landing valve handle anti-clockwise, you can simply activate the water flux in the fire hydrant system.

Q:Is it OK to OEM ?

Yes. Please inform us formally before our production and confirm the design and other requirements firstly .

Q: What about the lead time?

Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.



Hot Tags: angle thread landing valve, China, manufacturers, suppliers, wholesale, price, BS Angle Landing Valve, Fire Fighting Landing Valve, Angle Type Landing Valve, Landing Valve In Fire Fighting, Angle Landing Valve, Angle Landing Valve Fire Fighting

  • Body: Copper Alloy to EN 1982

  • Hand Wheel:Grey Cast Iron to BS EN 1561

  • Blank Cap:Copper Alloy to EN 1982

  • Disc assembly: Brass W/ replaceable facing rubber

  • Stem:Brass

  • Chains:SUS304

  • Cap:ABS Plastic
