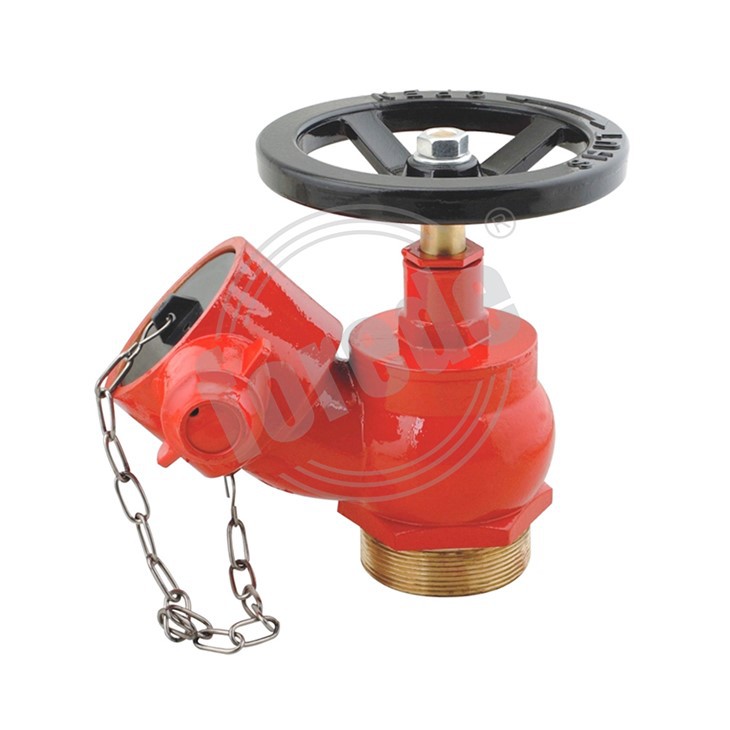

Fire Hydrant Oblique Valve

Fire Hydrant Oblique Valve
Product Introduction:
Forede Thread Oblique Fire Hydrant Valve is indoor pipe network water supply to the fire site, with valve interface, for factories, warehouses, high-rise buildings, public buildings and ships and other indoor fixed fire facilities, usually installed in the fire hydrant box, with fire hoses and water guns and other equipment supporting the use of.
Send Inquiry
Description
Technical Parameters

Thread Oblique Fire Hydrant Valve





Landing valves are suitable for installation on wet risers in a building for firefighting purposes, permanently charged with water from a pressurized supply. The landing valves are oblique type with threaded inlet and are manufactured standard with delivery hose connection and blank cap. The landing valve are classified under low pressure and are suitable for use at nominal inlet pressure up to 16 bar.







Specification



Model
Working Pressure Outlet Inlet
FRD-OS65
16 bar
2.5"BS336 Female Inst.
2.5" Male BSP







Order Information

Dear Customer,



Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.



If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.






FAQ



Q. Can I buy samples placing orders?

A: Yes.Please feel free to contact us.



Q.What is the shipping method?

A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.



Q.How do you make our business long-term and good relationship?

A: We keep good quality and competitive price to ensure our customers benefit and respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.







Hot Tags: fire hydrant oblique valve, China, manufacturers, suppliers, wholesale, price, Fire Sprinklers, Straight Landing Valve Flange End, Angle Landing Valve Fire Fighting, BS Hydrant Valve, Straight Through Landing Valve, FM 200 Fire Suppression System

Key Facts

  • Body: Copper Alloy to EN 1982
  • Hand Wheel:Grey Cast Iron to BS EN 1561
  • Blank Cap:Copper Alloy to EN 1982
  • Disc assembly: Brass W/ replaceable facing rubber
  • Stem:Brass
  • Chains:SUS304
  • Cap:ABS Plastic
  • Test Pressure:Valve Seat@16.5Bar,Body@22.5Bar

*Optional Fitting :Strap And Pad Lock For Securing Hand Wheel
