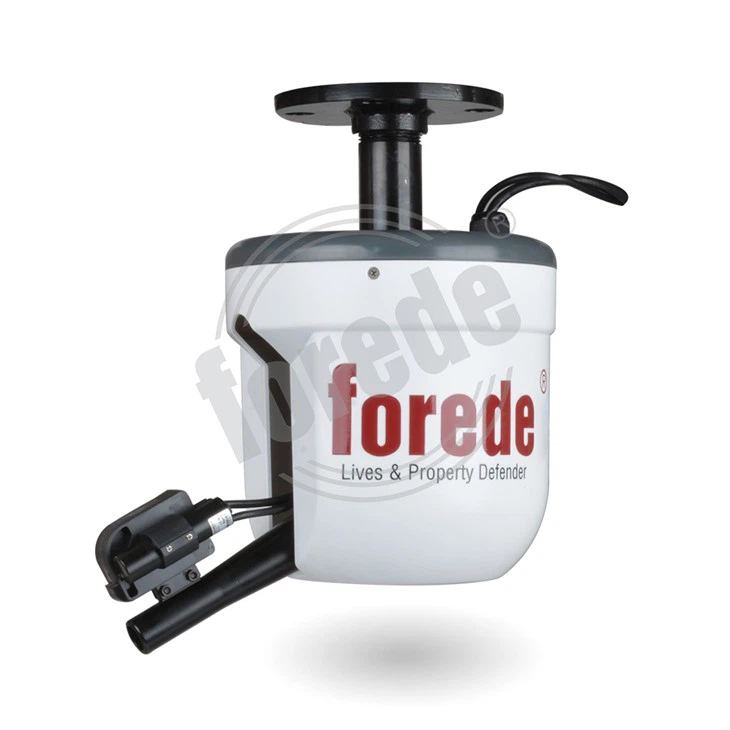

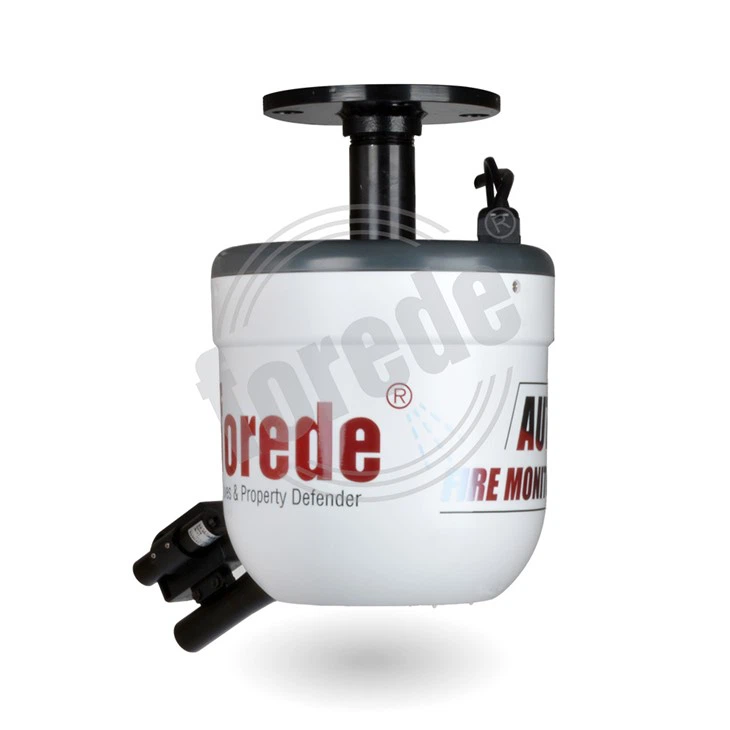

Autonomous Fire Monitor
Autonomous Fire Monitor Fire Cannons are often combined with a Thermal Fire Detection system. This operates by scanning the area for infra-red radiation, which it can then convert into a temperature reading. When a set temperature threshold is reached, the fire alarm is activated and signals relayed to the cannon. The signals received by the cannon include details of the zone in which the fire has been detected. This provides the cannon the information on the area to concentrate the suppression, and the water cannon, mounted on a motorised chassis with a self-aligning system, turns and directs the water jet directly at the risk area identified by the detection system.This targeted approach ensures that the risk is dealt with swiftly and efficiently and minimises clean up costs.
Features:
1.Using the dual-band infrared ultraviolet composite detection technology;
2.Early fire, high accuracy, wide range and no blind spot;
3. fire location and sprinkler;
4. High efficiency in extinguishing early fire suppression;
5. the water injection direction of fire extinguishing device nozzle can be controlled manually by 485 bus;
5.using bus image transmission technology, Remote manual control;
6. using the principle of laser irradiation
estinguisher
Working Pressure
Optional
Warranty
Technological Parameters
|

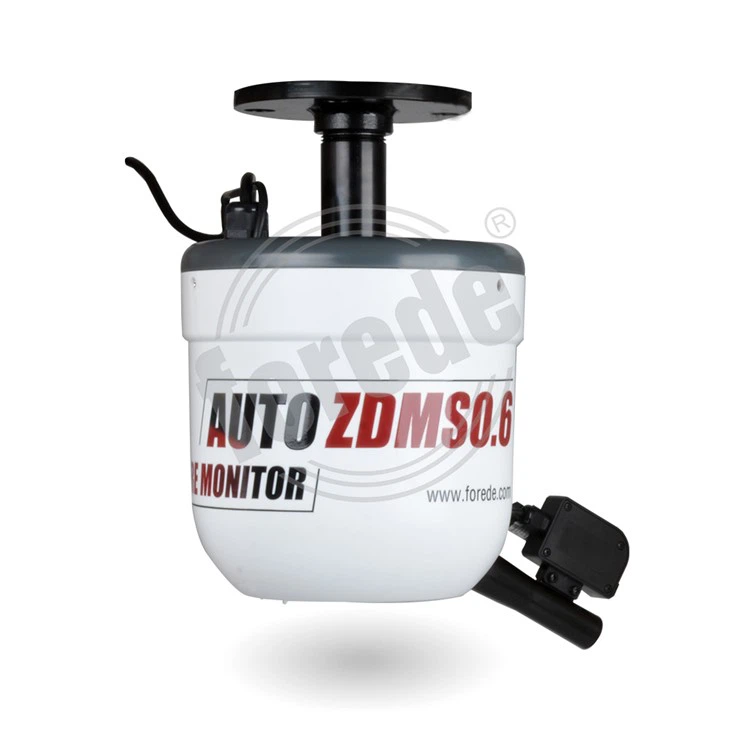

ZDMS0.6 Automatic Fire Monitor
|
||
|
Model
|
ZDMS0.6 /5S
|
ZDMS0.6 /10S
|
|
Jet Mode
|
Columnar
|
Columnar
|
|
Rated Flow
|
5 LPS
|
10 LPS
|
|
Working Pressure
|
6 Bar
|
6 Bar
|
|
Jet Radius
|
34 m
|
39 m
|
|
Max Protection Radius
|
30 m
|
35 m
|
|
Monitoring Radius
|
50 m
|
|
|
Horizontal Rotation Angle
|
360°
|
|
|
Vertical Rotation Angle
|
-90°~+30°
|
|
|
Mounting Height
|
6~15 m
|
|
|
Operating Voltage
|
AC 220V
|
|
|
Detector Type
|
Red ultraviolet composite
|
|
|
Size
|
DN50 Flange
|
|
|
Installation
|
Hanging
|
|
|

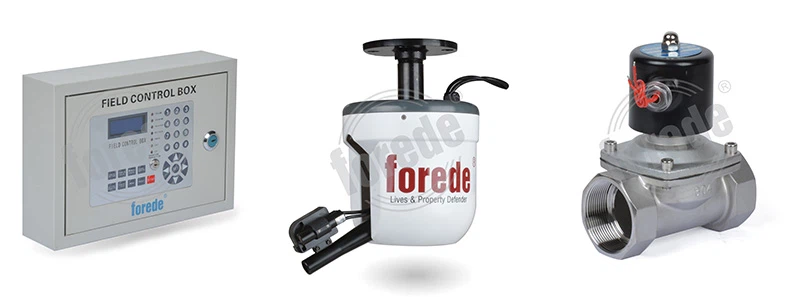

Part Name
|
Quantity
|
Remarks
|
|
Automatic Fire Monitor
|
1
|
|
|
Control Box
|
1
|
Switch operation mode Automatic/Manual
|
|
Signal Decoder
|
1
|
Convert the signal into the information it represents
|
|
Solenoid Valve
|
1
|
Control fluid automation infrastructure components
|
|
Camera(optional)
|
1
|
Video Surveillance
|
Frequently Asked Questions
Frequently Asked Questions
Q. What about the lead time?
-
A:Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Q.How can I get the price?
-
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q.Can I buy samples placing orders?
-
A: Yes.Please feel free to contact us.
Q. Is it OK to OEM ?
-
A: Yes. Please inform us formally before our production and confirm the design and other requirements firstly .
Q.How do you make our business long-term and good relationship?
-
A: We keep good quality and competitive price to ensure our customers benefit and respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Recommend Product
Fire Monitor
Fixed Manual Fire Monitor
Fixed Remote Fire Monitor
Portable Fire Monitor
Automatic Fire Monitor
Monitor Nozzle
Main Product
Our Main Product
Contact Information
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
Our address
Nan'an City, Quanzhou City Fujian PRC-China
Phone Number
Hot Tags: autonomous fire monitor, China, manufacturers, suppliers, wholesale, price, Water Curtain Nozzle Fire Fighting, Fire Fighting Foam Concentrate, Fire Hydrant System Fire Fighting, RC Fire Fighting Monitor, Foam Monitor Fire, Oblique Type Landing Valve
1) Single strand incoming line, anti-winding design
2) Integrated design without junction box
3)Single tube spherical appearance, smaller size
4) Hard anodized surface, more suitable for harsh environments
5) Made of high-strength nylon material, fire retardant
6) Ring alarm lamp
7) Removable sensor guard case
8) Laser positioning indication, high-definition screen monitoring
