forede® Fixed Station Manual Fire Monitor Introduction
A forede® fixed manual fire monitor is a type of fire suppression system used in industrial and commercial settings to control fires. It is generally mounted on a fixed position and operated manually by a trained professional during a fire emergency.Forede® fixed station manual fire monitors are pure mechanical devices that operate without external power, ensuring reliable performance even during power failures or in hazardous environments.
The device works by releasing a stream of water or other suppressant material at a high velocity to extinguish any flames within its range. It is often integrated with other fire detection and alarm systems to provide a comprehensive fire safety solution.
Forede® fixed station monitors are strategically deployed in high-risk industrial and municipal environments where large-volume, remote-controlled fire suppression is critical.Such as Petrochemical & Refining Facilities,Marine & Offshore,Aviation & Industrial Warehousing,Municipal & Infrastructure.
Despite its simplicity, a fixed manual fire monitor is a highly effective fire suppression fire equipment, and it can play a crucial role in preventing the spread of fire and minimizing damage to property.
Stainless Steel Fixed Station Manual Control Fire Water Cannon/Monitor
Statinless Steel Fixed Station Fire Water Cannon/Fire Monitor
Forede offers two precision-engineered fixed station manual control fire monitor platforms . the tiller bar controlled series (including style TFS1,TFS2) and the worm gear driven series (including WFS1,WFS2,WFS3). Both are designed for permanently mounted on fire Truck, fire hydrants (hydrant mounted monitor), monitor tower, mobile trailers(trailer mounted monitor), and mobile trolley carts . Manufactured in high-grade stainless steel 304/316/316L, these monitors are built to withstand harsh conditions, including corrosive marine and chemical environments, while maintaining smooth, reliable operation.
With full compatibility with various monitor nozzles, both series can deliver substantial flow rates of water or foam, enabling firefighters to combat large-scale fires from a safe operational distance. The tiller bar control series provides rapid, intuitive aiming via a tiller bar for quick directional changes, while the worm gear control series offers precise, gear-driven control for stable and accurate targeting under high-pressure or high-flow rate discharge.
01
High Quality Material
All of our Swivel ,worm gear ,elbows ,tiller bar are made by stainless steel 304, 316L optional.Fully fabricated from stainless steel for superior strength and corrosion protection.
02
Low Friction Loss
full 2.5",3",4" diameter elblows and pipe ,and "S" design with less elbows to make the low friction loss to be least.
03
Compatiable With full forede monitor nozzle
Tiller bar control and worm gear control Monitor assembly is fully designed with 2.5",3",3.5" NH male outlet for forede's types of monitor nozzles.replace easily and quickly.
tiller bar controlled Manual Fire Monitor (TFS1,tFS2 Series)
Heavy duty stainless steel 304/316 optional construction for corrison resistant.
Long Tiller bar with curved rubber handle for easy and fast aiming and operating
TFS1 with full DN65 waterway size to make flow rate up to 2400 LPM@8 bar.
TFS2 With full DN80 waterway size to make flow rate up to 4800 LPM@ 8 bar.
Elevation travel of 160 degree,from-75degree to 85 degree,Horizontally rotation 360 degree.
Adjustable mechanical stopper to adjust the horizontal and vertical angle accroding to your request.
Speicial "S" design ,less elbow,low Friction Loss.
Complete with elevation and horizontal locking knob.
With stainless steel 304 automatic drain valve.
Long service and low maintance,high quality components.
Suitable for most of fire monitor nozzles of forede brand.
TFS1.AF040
Style: TFS1,flow rates up to 2400LPM
Waterway Size :DN65
Main Material :Stainless Steel 304/316L Optional.
Operation Type: SS 304 Tiller Bar Controlled
Inlet Size: 2.5" ,3 " or 4 " Optional
Outlet Size: 2.5" NH Male
Surface Finishing:RAL 3000.Powder Painting.
Nozzle Type: MAF040 Constant Gallonage Nozzle
ANSI 150# Flange ,BS5404 Flange
TFS1.SF040
Style: TFS1,flow rates up to 2400LPM
Waterway Size :DN65
Main Material :Stainless Steel 304/316L Optional.
Operation Type: SS 304 Tiller Bar Controlled
Inlet Size: 2.5" ,3 " or 4 " Optional
Outlet Size: 2.5" NH Male
Surface Finishing:RAL 3000.Powder Painting.
Nozzle Type: MSF040 Constant Gallonage Nozzle
ANSI 150# Flange ,BS5404 Flange
tFS1.BF040
Style: TFS1,flow rates up to 2400LPM
Waterway Size :DN65
Main Material :Stainless Steel 304/316L Optional.
Operation Type: SS 304 Tiller Bar Controlled
Inlet Size: 2.5" ,3 " or 4 " Optional
Outlet Size: 2.5" NH Male
Surface Finishing:RAL 3000.Powder Painting.
Nozzle Type: MBF040 Constant Gallonage Nozzle
ANSI 150# Flange ,BS5404 Flange
tFS1.AP040
Style: TFS1,flow rates up to 2400LPM
Waterway Size :DN65
Main Material :Stainless Steel 304/316L Optional.
Operation Type: SS 304 Tiller Bar Controlled
Inlet Size: 2.5" ,3 " or 4 " Optional
Outlet Size: 2.5" NH Male
Surface Finishing:RAL 3000.Powder Painting.
Nozzle Type: MSP040 Air Foam Tube
ANSI 150# Flange ,BS5404 Flange
tFS1.AZ-4
Style: TFS1,flow rates up to 2400LPM
Waterway Size :DN65
Main Material :Stainless Steel 304/316L Optional.
Operation Type: SS 304 Tiller Bar Controlled
Inlet Connection Type Size: 3 " or 4 " ANSI 150# Flange
Outlet Size: 2.5" NH Male
Surface Finishing:RAL 3000.Powder Painting.
Nozzle Type: MSF040 Monitor Nozzle
Brass/ Stainless Steel 304 or 316 optional
tFS1.SQ040
Style: TFS1,flow rates up to 2400LPM
Waterway Size :DN65
Main Material :Stainless Steel 304/316L Optional.
Operation Type: SS 304 Tiller Bar Controlled
Inlet Connection Type Size: 3 " or 4 " ANSI 150# Flange
Outlet Size: 2.5" NH Male
Surface Finishing:RAL 3000.Powder Painting.
Nozzle Type: MSQ040 Monitor Nozzle
Brass/ Stainless Steel 304 or 316 optional
tFS2.AA080
Style: TFS2,flow rates up to 4800LPM
Waterway Size :DN80
Main Material :Stainless Steel 304/316L Optional.
Operation Type: SS 304 Tiller Bar Controlled
Inlet Connection Type Size: 3 " or 4 " ANSI 150# Flange
Outlet Size: 2.5" /3 " NH Male
Surface Finishing:RAL 3000.Powder Painting.
Nozzle Type: MAA080 Monitor Nozzle
Brass/ Stainless Steel 304 or 316 optional
tFS2.AF080
Style: TFS2flow rates up to 4800LPM
Waterway Size :DN80
Main Material :Stainless Steel 304/316L Optional.
Operation Type: SS 304 Tiller Bar Controlled
Inlet Connection Type Size: 3 " or 4 " ANSI 150# Flange
Outlet Size: 2.5" /3 " NH Male
Surface Finishing:RAL 3000.Powder Painting.
Nozzle Type: MAF080 Monitor Nozzle
Brass/ Stainless Steel 304 or 316 optional
WFS1,WFS2 ,WFS3 Series:Worm Gear controlled Manual Fire Monitor
Heavy duty stainless steel 304/316 optional construction for corrison resistant.
Worm Gear Operated by Handwheel to self-locked while monitor is jetting with high reation force.
WFS1 with full DN65 waterway size to make flow rate up to 2400 LPM@8 bar.
WFS2 With full DN80 waterway size to make flow rate up to 4800 LPM@ 8 bar.
WFS3 With full DN100 waterway size to make flow rate up to 7200 LPM@ 10 bar.
Elevation travel of 160 degree,from-75degree to 85 degree,Horizontally rotation 360 degree.
Adjustable mechanical stopper to adjust the horizontal and vertical angle accroding to your request.
Speicial "S" design ,less elbow,low Friction Loss.
Complete with elevation and horizontal locking knob.
With stainless steel 304 automatic drain valve.
Long service and low maintance,high quality components
Suitable for most of fire monitor nozzles of forede brand.
WFS1
Style: WFS1
Waterway Size :DN65
Main Material :Stainless Steel 304/316L Optional.
Operation Type: SS 304 Tiller Bar Controlled
Inlet Connection Type Size: 3 " or 4 " ANSI 150# Flange
Outlet Size: 2.5" NH Female
Surface Finishing:RAL 3000.Powder Painting.
Nozzle Type: MSF040 Monitor Nozzle
Brass/ Stainless Steel 304 or 316 optional
WFS1
Style: WFS1
Waterway Size :DN65
Main Material :Stainless Steel 304/316L Optional.
Operation Type: Handwheel Controlled
Inlet Connection Type Size: 3 " or 4 " ANSI 150# Flange
Outlet Size: 2.5" NH Female
Surface Finishing:RAL 3000.Powder Painting.
Nozzle Type: MSF040 Monitor Nozzle
Brass/ Stainless Steel 304 or 316 optional
WFS2
Style: WFS2
Waterway Size :DN80
Main Material :Stainless Steel 304/316L Optional.
Operation Type: SS 304 Tiller Bar Controlled
Inlet Connection Type Size: 3 " or 4 " ANSI 150# Flange
Outlet Size: 2.5" NH or 3" NH Female
Surface Finishing:RAL 3000.Powder Painting.
Nozzle Type: MSF040 Monitor Nozzle
Brass/ Stainless Steel 304 or 316 optional
WFS3
Style: WFS3
Waterway Size :DN100
Main Material :Stainless Steel 304/316L Optional.
Operation Type: SS 304 Tiller Bar Controlled
Inlet Connection Type Size: 3 " or 4 " ANSI 150# Flange
Outlet Size: 3.5" NH Female
Surface Finishing:RAL 3000.Powder Painting.
Nozzle Type: MSF040 Monitor Nozzle
Brass/ Stainless Steel 304 or 316 optional
Aluminum alloy Fixed Station Manual Control Fire Monitor
Advantages of forede® Fixed Station Manual Fire Monitor
Easy To Use
The forede® Fixed Station Manual Fire Monitor is a user-friendly device and can be easily operated by anyone with minimal training. The control valve and lever are easy to access, and the operator can quickly direct the flow of water or foam towards the fire.
High Discharge Rate
The forede® Fixed Station Manual Fire Monitor has a high discharge rate, and can deliver large quantities of water or foam to quickly extinguish the fire. This makes it an ideal solution for controlling fires in high-risk areas such as industrial environments, oil rigs, and airports.
Ersatile
The forede® Fixed Station Manual Fire Monitor can be used with a wide variety of nozzles, allowing it to be adapted to different types of fires. It can also be configured for different flow rates depending on the application, making it a versatile solution for fire safety.
Reliable
The Forede® Fixed Station Manual Fire Monitor is a highly reliable piece of equipment that has been built to withstand extreme conditions. It is made from high-quality materials and designed to withstand the harsh environments in which it may be used. This makes it a sound investment for any business or organisation looking to improve their fire safety measures.
-
![80LPS Industrial Water Cannon]()
80LPS Industrial Water Cannonforede 80LPS Industrial Water Cannon is a heavy-flow fixed fire monitor customized for industrial high-risk premises. Constructed with optional 304 or 316 stainless steel main body and aluminum...read more -

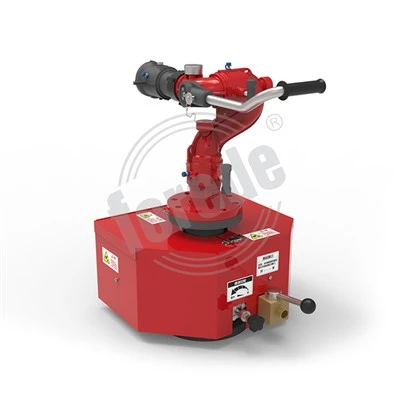

![Water Powered Oscillating Monitors]()
Water Powered Oscillating Monitorsforede® water powered oscillating monitor is an automatic fire monitor equipped with an internal hydraulic drive mechanism. As water flows through the monitor body, part of the water energy powers...read more -
![Water Powered Oscillator]()
Water Powered Oscillatorforede® Water powered oscillator is a power unit for fixed fire monitors/foam monitors. It relies on the water pressure of the fire pipeline to drive the internal impeller and reduction gear. It...read more -
![Stainless Steel Fire Monitor With 5LPS Brass Nozzle]()
Stainless Steel Fire Monitor With 5LPS Brass NozzleThe forede® Brand Stainless Steel Fire Monitor with 5LPS Brass Nozzle is a high-quality firefighting device designed to deliver exceptional performance and reliability in emergency situations....read more -
![300LPM Stainless Steel Fire Monitor]()
300LPM Stainless Steel Fire MonitorThe forede® Brand 300LPM Stainless Steel Fire Monitor – a powerful and reliable solution designed to enhance firefighting efficiency and safety. Crafted from high-quality stainless steel, this...read more -
![Low Flow Rate Stainless Steel Fire Monitor]()
Low Flow Rate Stainless Steel Fire MonitorThe forede® Brand Low Flow Rate Stainless Steel Fire Monitor is an innovative firefighting device designed to deliver precise and efficient water or foam application with minimal flow rates....read more -
![Water Powered Oscillating Device]()
Water Powered Oscillating Deviceforede® water power oscillating device is a power unit for fixed fire monitors/foam monitors. It relies on the water pressure of the fire pipeline to drive the internal impeller and reduction...read more -
![Water Power Oscillating Device]()
Water Power Oscillating Deviceforede® water power oscillating device is a power unit for fixed fire monitors/foam monitors. It relies on the water pressure of the fire pipeline to drive the internal impeller and reduction...read more -
![Fire Monitor With Brass Nozzle]()
Fire Monitor With Brass Nozzleforede® TFS1.BS040 brass nozzle fire monitor is a firefighting water cannon that uses a brass (or bronze) nozzle mounted on a fire monitor (manual or remote-controlled). It’s commonly used in...read more -
![Fixed Station Stainless Steel Monitor]()
Fixed Station Stainless Steel Monitorforede® WFS2.AA080 Fixed Station Stainless Steel Monitor it provides good long jet range and stable quality, the fire monitor nozzle is automatic nozzle(4800 LPM).WFS2.AA080 with few and easy...read more -
![4800LPM Stainless Steel Fire Monitor]()
4800LPM Stainless Steel Fire MonitorThe forede® Brand 4800LPM Stainless Steel Fire Monitor is a high-performance firefighting device designed to deliver powerful and precise water flow in emergency situations. Crafted from durable...read more -
![SS316 Manual Fire Water Monitor]()
SS316 Manual Fire Water Monitorforede® TFS1.SS040 SS316 manual fire water monitor it provides good long jet range and stable quality, the fire monitor nozzle with selectable nozzle 20-30-40LPS.WFS1.SS040 with few and easy...read more
Fixed Manual Fire Monitor Applications
chemical plants
A forede® Fixed Manual Fire Monitor, also known as a turret, is an essential piece of equipment used in chemical plants to prevent and control fires. These monitors are designed to provide a steady stream of water, foam, or other firefighting agents to suppress a fire and protect the surrounding area.
The use of forede® Fixed Manual Fire Monitors is critical to ensuring the safety of workers and minimizing damage to equipment and facilities. In the event of a fire, these monitors can be quickly and easily deployed to suppress the flames and prevent them from spreading further.
Modern forede® Fixed Manual Fire Monitors are built with sophisticated technology that ensures their performance and reliability. They are made of high-quality materials that can withstand harsh weather conditions and corrosive environments. They are also equipped with advanced control systems that allow operators to adjust the flow rate and direction of the fire suppressing agents.
oil refineries
forede® Fixed Manual Fire Monitor is an essential safety equipment used in oil refineries to protect workers, the environment and infrastructure from the devastating effects of fire. This safety equipment is designed to discharge large volumes of water or foam to quickly extinguish fires and prevent them from spreading.
The forede® Fixed Manual Fire Monitor is a reliable and robust equipment that is often installed at strategic locations within the refinery. This includes the refinery's storage tanks, loading and unloading facilities, as well as processing units.
Using forede® Fixed Manual Fire Monitors in oil refineries is a proactive approach to managing safety risks and preventing catastrophic incidents. Refineries that prioritize safety by equipping their facilities with state-of-the-art safety equipment like the Fixed Manual Fire Monitor are more likely to achieve a safer work environment and enhanced operational efficiency.
power plants
The fixed manual fire monitor is an essential safety tool used in power plants to protect employees and equipment from fire hazards. These fire monitors are strategically placed throughout the plant and monitored by dedicated personnel to ensure rapid response in the event of a fire.
One of the great advantages of forede® fixed manual fire monitors is their reliability and effectiveness. In the event of a fire, these monitors are ready to spring into action at a moment's notice, providing a consistent and powerful stream of water to control and extinguish the flames. This quick response can mean the difference between a close call and a catastrophic event.
Furthermore, these forede® fire monitors are built to withstand the harsh conditions commonly found in power plants. They are designed with high-quality materials and rigorous testing to ensure they can continue to function properly even when exposed to extreme temperatures, chemicals, and other environmental factors.
