Dry Sprinklers Brief Introduction

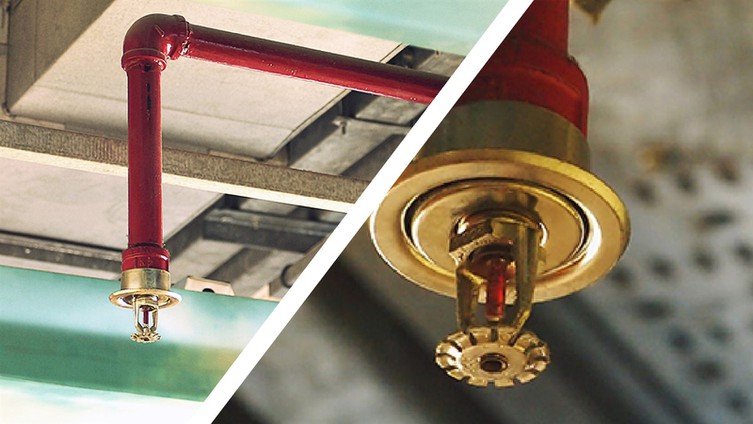

forede® Dry sprinklers, also known as Dry Pipe Fire Sprinklers, are an innovative and effective way of protecting buildings from fire. A dry sprinkler is composed of a special pipe and a sprinkler mounted at the outlet of a special pipe. A seal is provided at the entrance of the pipe to prevent water from entering the pipe before the sprinkler is operated.They work by using pressurized air or nitrogen to fill the sprinkler pipes instead of water. When a fire breaks out, a valve opens and the air or nitrogen escapes, allowing water to flow into the pipes and extinguish the fire.
One of the primary benefits of dry sprinklers is that they are ideal for buildings in which freezing temperatures are a concern. Traditional wet sprinklers use water, which can freeze in the pipes if the temperature drops below freezing, rendering the system useless. With dry sprinklers, this is never an issue.
Moreover, dry sprinklers also offer flexibility and versatility in terms of application. They can be used in a variety of settings, including cold storage facilities, unheated warehouses, parking garages, and outdoor areas. This makes them an excellent choice for a wide range of businesses and industries.
types of Dry Pipe Fire Protection Sprinklers
forede® provide various types of fire dry sprinklers to meet the market needs of storage,cold warehouse,machine room,underground parking,office building and other fields. In addition, we support high customization according to the characteristics of the products.
Standard Coverage Dry Sprinkler
Extended Coverage Dry Sprinkler
Storage Dry Sprinkler
ESFR Dry Sprinkler
Concealed Dry Sprinkler
Other Types of Dry Sprinklers
Standard Coverage Dry Sprinkler
forede® Standard Coverage Dry Sprinklers cover a variety of standard and quick depending on the response type or K-factor. Standard Response Dry Sprinklers are very versatile for unheated applications, freezers,cold warehouse and underground parking. It is a reliable and efficient fire sprinkler system that uses compressed air to maintain a dry valve, preventing any water from entering the pipes until the system is triggered by a fire event.
| Dry Sprinklers Type | Connection | K Factor | Glass Bulb | Response |
| Standard Coverage Dry Sprinkler | 1"(DN25) BSP | K5.6@US(80@Metric) | ∅5mm | Standard |
| Standard Coverage Dry Sprinkler | 1"(DN25) BSP | K8.0@US(115@Metric) | ∅5mm | Standard |
| Standard Coverage Dry Sprinkler | 1 1/4"(DN32) BSP | K11.2@US(161@Metric) | ∅5mm | Standard |
| Standard Coverage Dry Sprinkler | 1"(DN25) BSP | K5.6@US(80@Metric) | ∅3mm | Quick |
| Standard Coverage Dry Sprinkler | 1"(DN25) BSP | K8.0@US(115@Metric) | ∅3mm | Quick |
| Standard Coverage Dry Sprinkler | 1 1/4"(DN32) BSP | K11.2@US(161@Metric) | ∅3mm | Quick |
Extended Coverage Dry Sprinkler
forede® Extended Coverage Dry Sprinklers cover a variety of standard and quick depending on the response type or K-factor. Expand coverage dry Sprinklers are very versatile for unheated applications, freezers,cold warehouse and underground parking. It is a reliable and efficient fire sprinkler system that uses compressed air to maintain a dry valve, preventing any water from entering the pipes until the system is triggered by a fire event.
| Dry Sprinklers Type | Connection | K Factor | Glass Bulb | Response |
| Extended Coverage Dry Sprinkler | 1"(DN25) BSP | K8.0@US(115@Metric) | ∅3mm | Quick |
Storage Dry Sprinkler
forede® Storage dry sprinklers combine the suppression benefits of storage sprinkler with the advantages of a dry type sprinkler for warehose. When supplied from a wet pipe system installed in a conditioned space, forede’s storage dry type sprinklers allow for the protection of certain cold storage facilities with ceiling only sprinklers. storage sprinklers are approved to protect the same commodities and storage arrangements as their corresponding standard (wet) storage sprinklers with the same K-factor.
| Dry Sprinklers Type | Connection | K Factor | Sensitive | Response |
| Storage Dry Sprinkler | 1 1/4"(DN32) BSP | K14@US(202@Metric) | Fusible Alloy | Fast |
Early suppression Fast Response Dry Sprinkler (ESFR Dry Sprinkler)
forede® Early Suppression Fast Response (ESFR) dry sprinklers combine the suppression benefits of an ESFR sprinkler with the advantages of a dry type sprinkler for cold storage facilities. When supplied from a wet pipe system installed in a conditioned space, forede’s ESFR dry type sprinklers allow for the protection of certain cold storage facilities with ceiling only sprinklers. Dry ESFR sprinklers are approved to protect the same commodities and storage arrangements as their corresponding standard (wet) ESFR sprinklers with the same K-factor.
| Dry Sprinklers Type | Connection | K Factor | Sensitive | Response |
| ESFR Dry Sprinkler | 1 1/4"(DN32) BSP | K14@US(202@Metric) | Fusible Alloy | Fast |
Concealed Dry Sprinkler
forede® Concealed dry sprinklers,this fire sprinkler system is highly beneficial as it ensures that the water supply is not exposed to freezing temperatures, thus reducing the risk of pipe bursts. Additionally, it is an ideal solution for buildings where aesthetics are a priority, as the sprinklers are hidden from view.
| Dry Sprinklers Type | Connection | K Factor | Glass Bulb | Response |
| Concealed Dry Sprinkler | 1"(DN25) BSP | K5.6@US(80@Metric) | ∅5mm | Standard |
| Concealed Dry Sprinkler | 1"(DN25) BSP | K8.0@US(115@Metric) | ∅5mm | Standard |
| Concealed Dry Sprinkler | 1 1/4"(DN32) BSP | K11.2@US(161@Metric) | ∅5mm | Standard |
| Concealed Dry Sprinkler | 1"(DN25) BSP | K5.6@US(80@Metric) | ∅3mm | Quick |
| Concealed Dry Sprinkler | 1"(DN25) BSP | K8.0@US(115@Metric) | ∅3mm | Quick |
| Concealed Dry Sprinkler | 1 1/4"(DN32) BSP | K11.2@US(161@Metric) | ∅3mm | Quick |
Other Types of Dry Sprinklers
forede® Other Types of Dry Sprinklers,this dry pipe fire protection sprinkler system is highly beneficial as it ensures that the water supply is not exposed to freezing temperatures, thus reducing the risk of pipe bursts.
| Dry Sprinklers Type | Connection | K Factor | Glass Bulb | Response |
| Other Types of Dry Sprinklers | 1"(DN25) BSP | K5.6@US(80@Metric) | ∅5mm | Standard |
| Other Types of Dry Sprinklers | 1"(DN25) BSP | K8.0@US(115@Metric) | ∅5mm | Standard |
| Other Types of Dry Sprinklers | 1 1/4"(DN32) BSP | K11.2@US(161@Metric) | ∅5mm | Standard |
| Other Types of Dry Sprinklers | 1"(DN25) BSP | K5.6@US(80@Metric) | ∅3mm | Quick |
| Other Types of Dry Sprinklers | 1"(DN25) BSP | K8.0@US(115@Metric) | ∅3mm | Quick |
| Other Types of Dry Sprinklers | 1 1/4"(DN32) BSP | K11.2@US(161@Metric) | ∅3mm | Quick |
Advantages of forede® Dry Sprinklers
No Water Damage
The forede® Dry sprinklers Unlike wet sprinklers, dry sprinklers do not use water until the sprinkler head is activated. This means that in the event of a false alarm or minor fire, there will be no water damage to the building or its contents.
Prevent Icing
The forede® Dry sprinklers are ideal for buildings fire sprinkler system that are not at risk of freezing. Since water is not present in the piping until it is needed, dry sprinklers are less likely to freeze and cause damage.
Wide Range of Application
The forede® The forede® Dry sprinklers are suitable for the temperature below 4℃ or above 70℃ environment, because its pipe is filled with pressurized gas, will not freeze or crack due to changes in ambient temperature.Dry sprinklers require less maintenance than wet sprinklers because there is no water in the pipes to contend with.
Customizable
The forede® Dry sprinklers The length of Dry Sprinklers needs to be customized according to specific usage scenarios and needs, so as to better meet the needs of different customers. According to different buildings, facilities and fire protection requirements, the length of Dry Sprinklers can be customized to achieve a better fire protection effect.The length of pipe usually customized 80~1500mm.
-
Dry Pendent ESFR SprinklerThe forede® Brand Dry Pendent ESFR Sprinkler is a cutting-edge fire suppression system that provides efficient and reliable protection for a wide range of commercial and industrial facilities....read more
-
Dry Sprinkler ESFRThe forede® Brand Dry Sprinkler ESFR systems are a vital component of fire protection in commercial and industrial buildings. These systems are designed to quickly and effectively suppress fires...read more
-
Dry Sprinkler BarrelThe forede® Brand A dry sprinkler barrel is an essential component of a fire sprinkler system. It is designed to activate and release water in the event of a fire, helping to control and...read more
-
Concealed Dry Fire SprinklerConcealed dry fire sprinkler systems have been designed to be aesthetically pleasing as well as functional. The sprinkler heads are concealed behind a ceiling tile or cover plate, making them...read more
-
Dry Type Fusible Alloy Fire SprinklerDry Type Fusible Alloy Fire Sprinkler incorporates advanced technology, the most important of which is its fusing alloy language trigger and rapid response mechanism. This sprinkler has higher...read more
-
Customized Dry Type SprinklerCustomized Dry Type Sprinkler is a type of fire protection system that is becoming increasingly popular in many industries. It is a robust and reliable solution that is used to control and...read more
-
Fire Dry Type SprinklerFire Dry Type Sprinkler is an advanced fire protection equipment, it can control the spread of fire in time to protect people's lives and property safety. Compared with the traditional water...read more
-
Concealed Dry Type SprinklerConcealed dry type sprinklers are a type of fire protection system that is designed to provide reliable and efficient fire suppression in a variety of settings. These sprinkler systems are...read more
-
Brass Dry Type SprinklerBrass dry type sprinkler system is a cutting-edge technology that is used as a fire suppression system in various buildings. The system utilizes a network of pipes that have sprinklers attached...read more
-
Dry Type SprinklerDry sprinkler system is typically used in commercial and industrial buildings where temperatures fall below freezing and pipes may freeze and burst. These systems use pressurized air or nitrogen...read more
-
Dry Fire Sprinkler SystemDry sprinkler are suitable for dry systems and pre-action systems where there is a danger of freezing or the ambient temperature may exceed 70°C, so that the water in the pipeline is vaporized and...read more
-
Different Types Of Fire SprinklersFire sprinklers are automated systems that release water or other suppressants when triggered by heat or smoke from a fire. They are a highly effective and reliable way to protect buildings and...read more
Dry Sprinklers for fire sprinkler system applications
Dry sprinklers is a widely used fire sprinkler system, which is suitable for some specific places and environments.

Dry Sprinklers in cold Warehouse
Dry Sprinklers are a vital part of fire sprinkler systems in cold warehouses. Unlike traditional sprinkler systems that use water, dry sprinklers use compressed air or nitrogen to hold back the water in pipes until triggered. This feature makes it ideal for areas that are prone to freezing temperatures, preventing water from freezing in the pipes and causing damage to the system.
Dry sprinklers offer several benefits, including their ability to protect valuable goods and equipment in cold warehouses. They can quickly respond to a fire, releasing water evenly across the entire area, which can effectively control or extinguish a fire.
Moreover, dry sprinklers are cost-effective and require less maintenance compared to other sprinkler systems. They can operate with lower-pressure water sources, resulting in lower installation and operating costs. Additionally, dry sprinklers require less maintenance since they have no water sitting in pipes, lessening the risk of corrosion and leaks.
Dry Sprinklers in machine room
Dry sprinkler systems are an important component of fire sprinkler system in machine room. These systems work by using compressed air to power water through the sprinkler heads, which then extinguishes the fire. Unlike traditional wet sprinkler systems, dry systems use pressurized air instead of water to prevent freezing in colder climates.
One of the advantages of dry sprinkler systems is that they require less maintenance than traditional wet sprinkler system. Because the pipes are not filled with water, there is less risk of corrosion or damage. Additionally, dry systems are less likely to accidentally discharge water, which can cause costly damage to equipment or property.
Installing a dry sprinkler system in a machine room is an excellent way to ensure that fires will be quickly and effectively extinguished. This not only protects the equipment and property within the room, but also reduces the risk of injury or death to those who may be present during a fire.
In short, dry sprinkler systems are an essential component of fire sprinkler system in machine rooms. By installing a dry system, you can rest assured that your equipment, property, and personnel will be kept safe in the event of a fire.


Dry Sprinklers in underground parking
Dry sprinklers are a type of fire protection system that is commonly found in underground parking lots. They are designed to quickly detect and suppress fires, helping to prevent major damage and keep people safe.
Unlike traditional sprinkler systems, dry sprinklers are filled with pressurized air or gas instead of water. This makes them ideal for use in areas where water damage could be a major issue, such as underground parking garages. In the event of a fire, the system automatically releases the gas or air, which then opens the sprinkler heads and allows water to flow out and extinguish the flames.
Dry sprinklers offer a number of benefits for underground parking garages. First and foremost, they provide a high level of protection against fires, which can be particularly devastating in enclosed spaces like parking lots. They also help to minimize water damage, as the water is only released when needed and in controlled amounts.
Dry Sprinklers in Office building
In modern buildings, dry sprinkler system has become one of the necessary facilities. Especially in high-rise buildings such as office buildings, its role is indispensable. A dry sprinkler system is a special fire extinguishing system whose operation is based on an efficient design that guarantees security for all types of offices to protect the safety of employees and office workers.
Dry sprinkler systems reduce potential water damage and equipment damage. Especially in the design of fire suppression systems, it is very important to prioritize the prevention of property damage and casualties.
Dry sprinkler systems also have the advantage of operating at extreme temperatures. Since there is no water in the system, there is no problem of icing. This is a matter that must be considered when the fire extinguishing system is designed in the cold winter in the north. This means that even in these harsh conditions, the dry spraying system can continue to operate and provide the necessary safety and security.

We're well-known as one of the leading dry sprinklers manufacturers and suppliers in China for our quality products and good service. Please feel free to wholesale dry sprinklers at competitive price from our factory. Contact us for more details.
