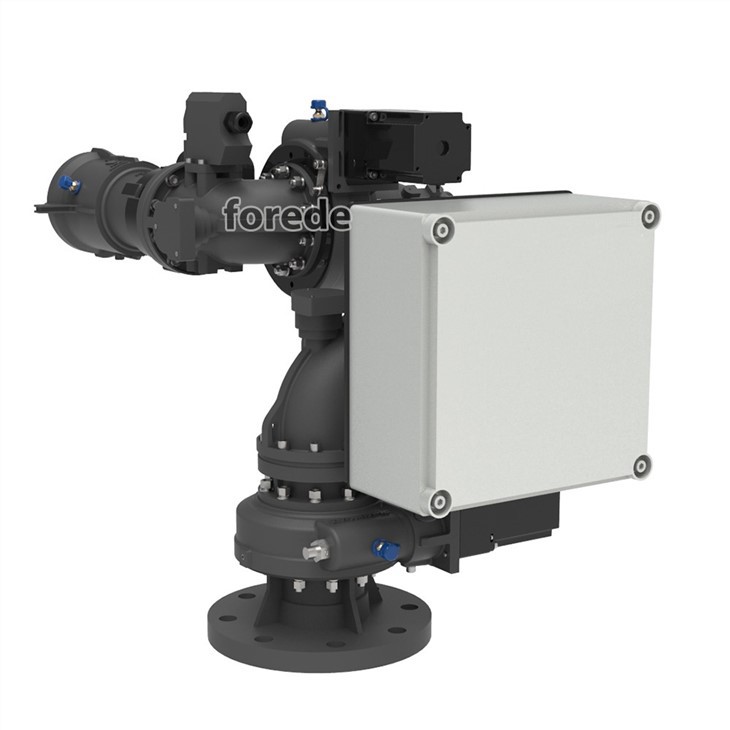

Auto Tracking Fire Monitor
FOREDE auto tracking fire monitor won a warm reception around the world,one the fire occurred the monitor will target it and extinguish the fire by itself,1200LPM-1800LPM flow rate constant could be suitable for most circumstance
|
ZDMS0.6 Automatic Fire Monitor
|
||
|
Model
|
ZDMS0.8 /20S-W
|
ZDMS0.8 /30S-W
|
|
Control
|
Automatic,Control box,Field manual
|
Automatic,Control box,Field manual
|
|
Rated Flow
|
20 LPS
|
30 LPS
|
|
Working Pressure
|
8 Bar
|
8 Bar
|
|
Jet Radius
|
56 m
|
62 m
|
|
Max Protection Radius
|
50 m
|
55 m
|
|
Monitoring Radius
|
80 m
|
|
|
Horizontal Rotation Angle
|
360°
|
|
|
Vertical Rotation Angle
|
-90°~+30°
|
|
|
Mounting Height
|
8~15 m
|
|
|
Targeting Time
|
≤60S
|
≤60S
|
|
Communication Mode
|
RS485
|
|
|
Detector Type
|
Infrared ray&UV sensor technology
|
|
|
Inlet
|
2.5''BS Flange, others size and standard available
|
|
|
Power Consumption
|
Monitoring 1W,Detecting 50W
|
|
|
Part Name
|
Quantity
|
Remarks
|
|
Automatic Fire Monitor
|
1
|
|
|
Control Box
|
1
|
Switch operation mode Automatic/Manual
|
|
Signal Decoder
|
1
|
Convert the signal into the information it represents
|
|
Solenoid Valve
|
1
|
Control fluid automation infrastructure components
|
|
Camera(optional)
|
1
|
Video Surveillance
|
FAQ
Q.How can I get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q. Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q.What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.
Q.How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit and respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Order Information
Dear Customer,
Hot Tags: firefighting auto fire monitor, China, manufacturers, suppliers, wholesale, price, Automatic Scanning Positioning Fire Monitor, Automatic Positioning Fire Monitor, Automatic Fire Monitor Water Cannon, Storage Sprinklers, Landing Valve, Explosion Remote Fire Monitor
1) Hard anodized aluminium alloy constrcution;
2) Iaser positioning indication, high-definition screen monitoring;
3) Straight stream＆Fog or Straight stream nozzle;
4) Vertical travel of 120°,from -90°to+30°
5) Electric control jetting pattern: Straight stream,Fog
6) Eletric.driver and control unit box are waterproof;
7) Optional power supply 12V/24V DC(optional),or 100-230AC
