Product Introduction:
The forede® Brand An Air Aspirating Fire Foam Monitor is an advanced firefighting device designed to deliver a powerful and efficient foam stream for fire suppression. Utilizing air aspiration technology, it mixes air with foam concentrate and water to produce high-quality foam with excellent expansion and adhesion properties. This foam effectively blankets flames, cools hot surfaces, and prevents re-ignition, making it an essential tool for combating flammable liquid fires and protecting critical infrastructures.
Send Inquiry
Description
Technical Parameters
Products Description
DN801

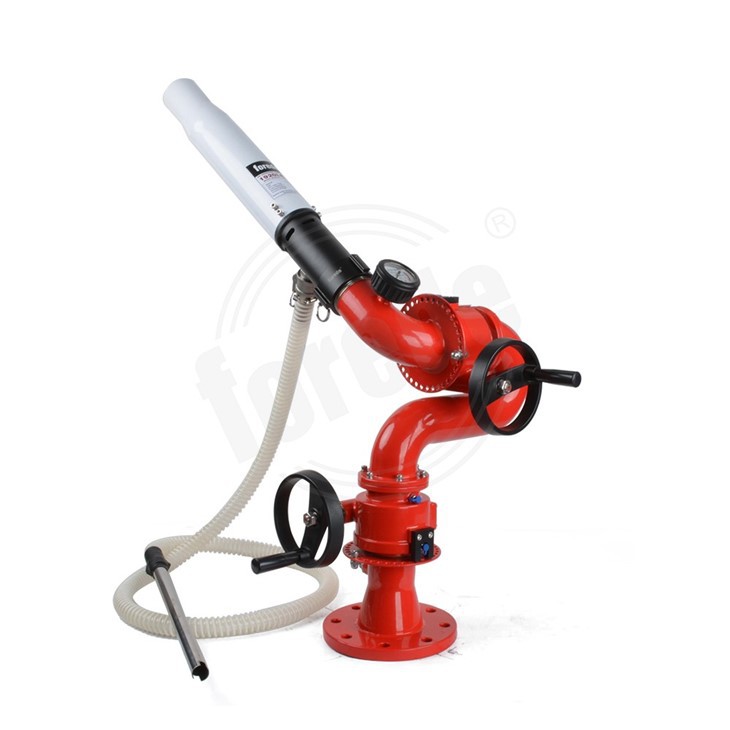

forede® Air Aspirating Fire Foam Monitor

The forede® Brand An Air Aspirating Fire Foam Monitor is an advanced firefighting device designed to deliver a powerful and efficient foam stream for fire suppression. Utilizing air aspiration technology, it mixes air with foam concentrate and water to produce high-quality foam with excellent expansion and adhesion properties. This foam effectively blankets flames, cools hot surfaces, and prevents re-ignition, making it an essential tool for combating flammable liquid fires and protecting critical infrastructures.



Engineered for reliability and ease of use, the air aspirating foam monitor offers precise control over flow rate and spray pattern, allowing firefighters to adapt quickly to varying fire conditions. Its robust construction ensures durability in demanding environments, while its versatile design supports both fixed installations and portable operations.



With its ability to generate thick, consistent foam, the air aspirating fire foam monitor significantly enhances firefighting efficiency and safety. It empowers firefighting teams to respond swiftly and decisively, safeguarding lives, property, and the environment. This innovative equipment represents a vital advancement in fire suppression technology, embodying a commitment to excellence and protection.



Products Features

 Body Material: Stainless Steel

 Flow Rate: 1200/1800/2400 LPM

 Jetting Pattern:Straight stream

 Inlet:3"/4" BS4504 flange


Technical Parameter



Model Number

WFS1.AP020 WFS1.AP030 WFS1.AP040
TFS1.AP020 TFS1.AP030 TFS1.AP040
Flow Rate 1200 LPM

1800 LPM

2400 LPM

Working Pressure

8 bar

8 bar

8 bar
Foam Jetting Range 42m 48m 55m
Water Jetting Range

55m

60m 65m
Foam Expansion ≥6 times ≥6 times ≥6 times
Outlet 2.5" NH 2.5" NH 2.5" NH
Inlet Flange 3"/4" BS4504 is standard (other sizes & standards are availabe)



FAQ

Q: What is an Air Aspirating Fire Foam Monitor?

A: An Air Aspirating Fire Foam Monitor is a device designed to efficiently mix foam concentrate with air and water to produce high-quality fire-fighting foam, enhancing fire suppression efforts.

Q:How does the air aspirating foam monitor work?

A: It draws air into the foam solution, creating a rich, stable foam that can cover and cool fire surfaces quickly, providing excellent fire control.

Q:What types of fires can it be used on?

A: It is ideal for Class A and Class B fires, especially flammable liquids and hydrocarbons, helping to control and extinguish fires effectively.

Q:What are the benefits of using an air aspirating foam monitor?

A: Benefits include efficient foam production, wider spray coverage, reduced water usage, and faster fire suppression.

Q:Is the foam produced environmentally friendly?

A: Modern foam concentrates used with these monitors are designed to be environmentally responsible and safe when used properly.
