Double Handwheels Fire Monitor

Double Handwheels Fire Monitor
Product Introduction:
The forede® Brand Double Handwheels Fire Monitor is an essential firefighting device designed to deliver powerful and precise water flow control in emergency situations. Featuring two ergonomically designed handwheels, this fire monitor allows firefighters to easily adjust both the horizontal and vertical direction of the water stream, ensuring optimal coverage and effectiveness. Constructed from high-quality, durable materials, it guarantees long-lasting performance and reliability even under the most demanding conditions.
Send Inquiry
Description
Technical Parameters
Products Description
4D1D1618394AA573483B9838F8E46367

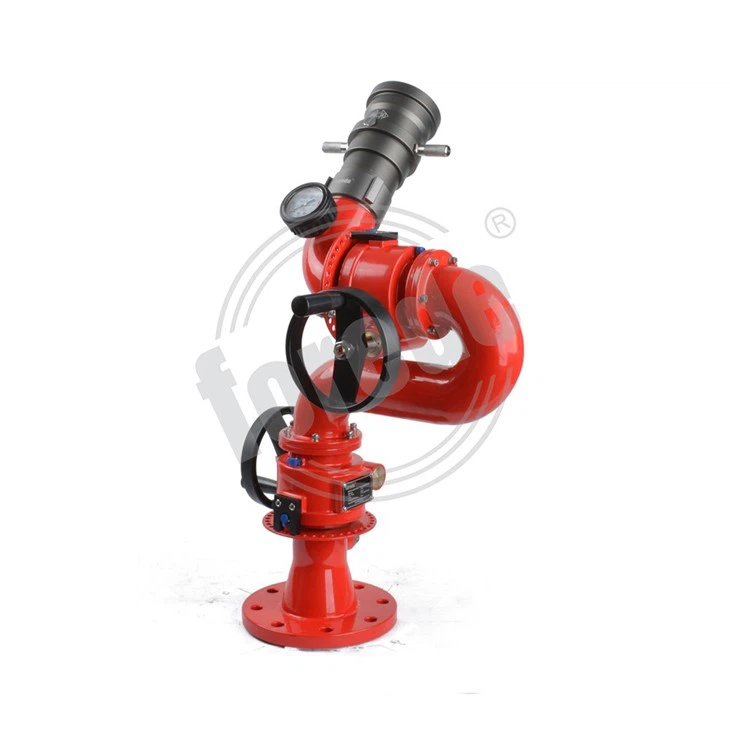

forede® Double Handwheels Fire Monitor

The forede® Brand Double Handwheels Fire Monitor is an essential firefighting device designed to deliver powerful and precise water flow control in emergency situations. Featuring two ergonomically designed handwheels, this fire monitor allows firefighters to easily adjust both the horizontal and vertical direction of the water stream, ensuring optimal coverage and effectiveness. Constructed from high-quality, durable materials, it guarantees long-lasting performance and reliability even under the most demanding conditions.



With its smooth operation and responsive control, the Double Handwheels Fire Monitor enhances firefighting efficiency, enabling rapid and accurate targeting of flames to protect lives and property. Its robust design and user-friendly interface make it an invaluable asset for fire safety teams, supporting their mission to safeguard communities with confidence and precision. Embracing innovation and quality, this fire monitor exemplifies excellence in firefighting technology, promoting a safer and more secure environment for all.



Products Features

 Body Material: Stainless Steel

 Flow Rate: 1200/1800/2400 LPM

 Jetting Pattern:Straight stream,fog

 Inlet:3"/4" BS4504 flange


Technical Parameter



Model Number

WFS1.AF020 WFS1.AF030 WFS1.AF040 WFS1.AS040
Flow Rate 1200 LPM 1800 LPM 2400 LPM 1200-1800-2400 LPM

Working Pressure

8 bar

8 bar 8 bar 8 bar
Water Jetting Range 50 m

60 m

65 m 50-65 m
Body Material Stainless Steel 304

Nozzle

Material

Aluminium Alloy
Flange Inlet 3"/4" BS4504



FAQ

Q: What is a Double Handwheels Fire Monitor?

A: A Double Handwheels Fire Monitor is a firefighting device designed for precise water or foam discharge control, using two handwheels for easy directional adjustment.

Q:How does the double handwheel design benefit operation?

A: The dual handwheels allow smooth and independent control of horizontal and vertical movements, making aiming more accurate and user-friendly.

Q:How easy is it to operate the handwheel?

A: The handwheel is designed for easy manual control, allowing smooth and precise aiming of the foam stream during firefighting.

Q:In what environments can this fire monitor be used?

A: It is ideal for industrial sites, ports, oil refineries, and any location where reliable fire suppression is essential.

Q:What types of fires can this fire monitor handle?

A: It is effective on Class A and Class B fires, especially those involving flammable liquids and solids.
