Products Description

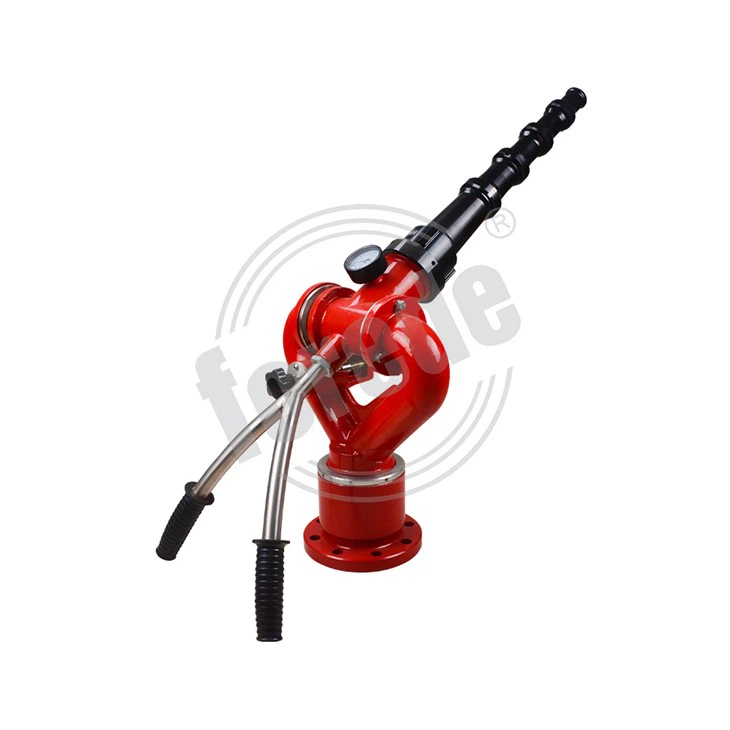

Fixed Manual Fire Monitors-Fire Boat Water Cannon
The PS10/20-50-T Fire Boat Water Cannon is an impressive piece of equipment that can handle large amounts of water flow at high pressure. With a flow rate of up to 3000 LPM and a working pressure of 10 Bar, it's a powerful tool for firefighting operations.
One of the most impressive things about this water cannon is its reach. At full pressure, it can reach up to 70 meters, making it ideal for use on large ships or in other situations where access is limited. Additionally, its ability to rotate 360 degrees and tilt between -45° and +70° vertically means that it can easily cover a wide area without the need for constant repositioning.
Despite its power, the PS10/20-50-T is designed with safety in mind. It's made from high-quality materials that are resistant to corrosion and other forms of damage, ensuring that it will perform reliably even under challenging conditions. Additionally, it's easy to install and operate, meaning that even novice firefighters can use it effectively.
Products Detailed
Technical Parameter
What Is The Fire Boat Water Cannon?
Fire boat water cannons come in different shapes and sizes, depending on the specific needs of the department or organization using them. Some are mounted on top of a boat, while others are designed to be portable and can be moved around as needed.
One of the key benefits of using a fire boat water cannon is that it allows firefighters to attack fires from a safe distance, which can be especially important in situations where there is danger from explosions or collapses. This also means that firefighters can work more efficiently and effectively, reducing potential damage and helping to prevent further incidents.
Another advantage of using a fire boat water cannon is that it can be used to apply different types of firefighting materials, such as foam or chemical retardants. This can be particularly useful in dealing with certain types of fires, such as those involving flammable liquids or gases.
|
Model Number |
PS10/20-50-T |
|
Flow Rate |
1200 LPM up to 3000 LPM |
|
Working Pressure |
10 Bar |
|
Max. Reach @ 10 bar |
70 meters @ 3000 LPM |
|
Max Range Of Monitor |
-45° to +70° Vertically, 360° Rotation |
|
Waterway Size |
2.5"(65mm) |
|
Monitor Outlet |
2.5" (65mm) NH male thread |
|
Monitor Inlet |
Flange 4" BS4504 is standard ( other sizes & standards are available ) |
|
Material |
Monitor & Nozzle - Hard coated anodized aluminium alloy Tiller - SS304 Stainless steel |
Application Area
Rescue Services
Residential Buildings
Industrial Settings
Public Space
Frequently Asked Questions
Q: Can I choose the specifications of the fire monitor?
Q: How to Use Fire Monitor?
Q: Can the Monitor Head of the Fire Monitor Be Replaced?
Q: What Are the Flange Standards for Fire Monitors?
