Products Description

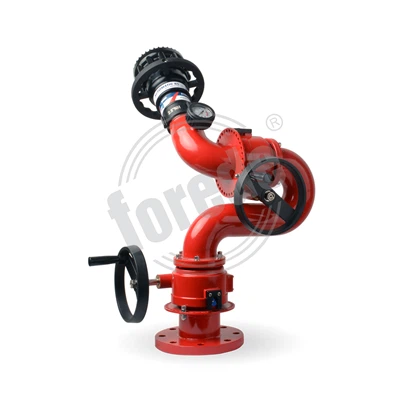

Fire Fixed Station Manual Fire Fighting Water Monitor
forede Fire Fixed Station Manual Fire Fighting Water Monitor is a permanent-installation mechanical fire suppression device, featuring an SS304 stainless steel body, aluminum alloy nozzle head, and integrated manual handle control. It offers three adjustable flow rates (20/30/40 LPS) with corresponding ranges of 50/58/65 meters, operating at 0.8-1.0 MPa and supporting straight stream/spray modes. Permanently mounted via flanges to the central water system, it ensures stable positioning and continuous supply for fixed-point fire protection.
SS304 Stainless Steel Construction;
Tiller Control;
Flow Rate: 20/30/40 LPS (Optional)or 20-30-40LPS (Selectable);
Flange standard: BS4504,ANSI150,GB,etc.
Nozzle Material: Aluminium Alloy
Handle
Working Pressure
Adjustable Flow
Warranty
| Model Number | TFS1.AF020 | TFS1.AF030 | TFS1.AF040 | TFS1.AS040 |
| Flow Rate | 1200LPM | 1800LPM | 2400LPM | 1200LPM-1800LPM-2400LPM Selectable |
| Working Pressure | 8 bar | 8 bar | 8 bar | 8 bar |
| Max.Reach@8 bar | 50 Meters | 60 Meters | 65 Meters | 50-65 Meters |
| Max.Fog Angle | 120° | |||
| Max Range of Motion |
-45° to +75° Vertically, 360° Rotation
|
|||
| Waterway Size | 2.5''(65mm) | |||
| Monitor Outlet |
2.5"(65mm) NH male thread
|
|||
| Monitor Inlet |
Flange 3" BS4504 is standard ( other sizes & standards are available )
|
|||
| Material |
Monitor & Nozzle - Hard coated anodized aluminium alloy
Tiller - SS304 Stainless steel
|
|||

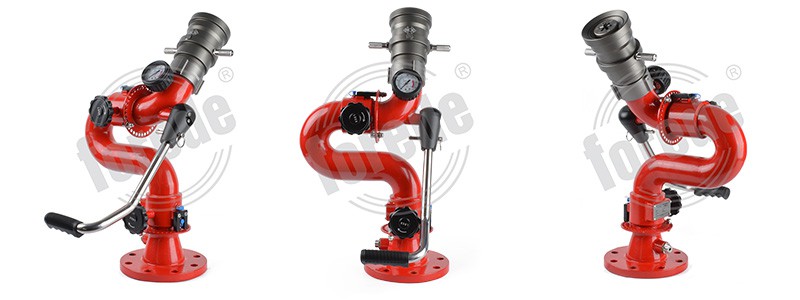

Detail Images
Frequently Asked Questions
Q:What is the production time of the sample?
-
A:A sample will be produced within 15 days.
Q.How can I get the price?
-
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q. Can I buy samples placing orders?
-
A: Yes.Please feel free to contact us.
Q.What is the shipping method?
-
A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.
Q.How do you make our business long-term and good relationship?
-
A: We keep good quality and competitive price to ensure our customers benefit and respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
