Products Description
Fixed Manual Fire Monitors-geared Water Foam Monitor
The flow rate of the manual foam fire monitor tiller control is an essential feature that enables firefighters to control and direct the flow of water and foam. The PL8/24-C, PL8/32-C, and PL8/40-C models have flow rates of 1440 LPM, 1920 LPM, and 2400 LPM, respectively. These flow rates are essential for fighting fires of different magnitudes and intensities.
Products Detailed
Products Feature
Flow Rate
The flow rate of the manual foam fire monitor tiller control is an essential feature that enables firefighters to control and direct the flow of water and foam. The PL8/24-C, PL8/32-C, and PL8/40-C models have flow rates of 1440 LPM, 1920 LPM, and 2400 LPM, respectively. These flow rates are essential for fighting fires of different magnitudes and intensities.
Working Pressure
Working pressure is crucial for the efficiency and effectiveness of firefighting operations. The PL8/24-C, PL8/32-C, and PL8/40-C models have a working pressure of 8 Bar, which ensures that the water and foam are delivered at adequate pressure to extinguish the fire.
Foam Jetting Range
The foam jetting range is the distance over which the foam can be projected onto the fire. The PL8/24-C, PL8/32-C, and PL8/40-C models have foam jetting ranges of 42 meters, 48 meters, and 55 meters, respectively. These ranges enable firefighters to tackle fires from a safe distance and prevent injuries.
Water Jetting Range
The water jetting range is the distance over which the water can be projected onto the fire. The PL8/24-C, PL8/32-C, and PL8/40-C models have water jetting ranges of 55 meters, 60 meters, and 65 meters, respectively. These ranges allow firefighters to combat fires from a safe distance and prevent further damage.
Foam Expansion
The foam expansion is the number of times the foam increases in volume when mixed with water. The PL8/24-C, PL8/32-C, and PL8/40-C models have foam expansions of at least 6 times, which expands the foam volume and increases its effectiveness in controlling fires.
Outlet

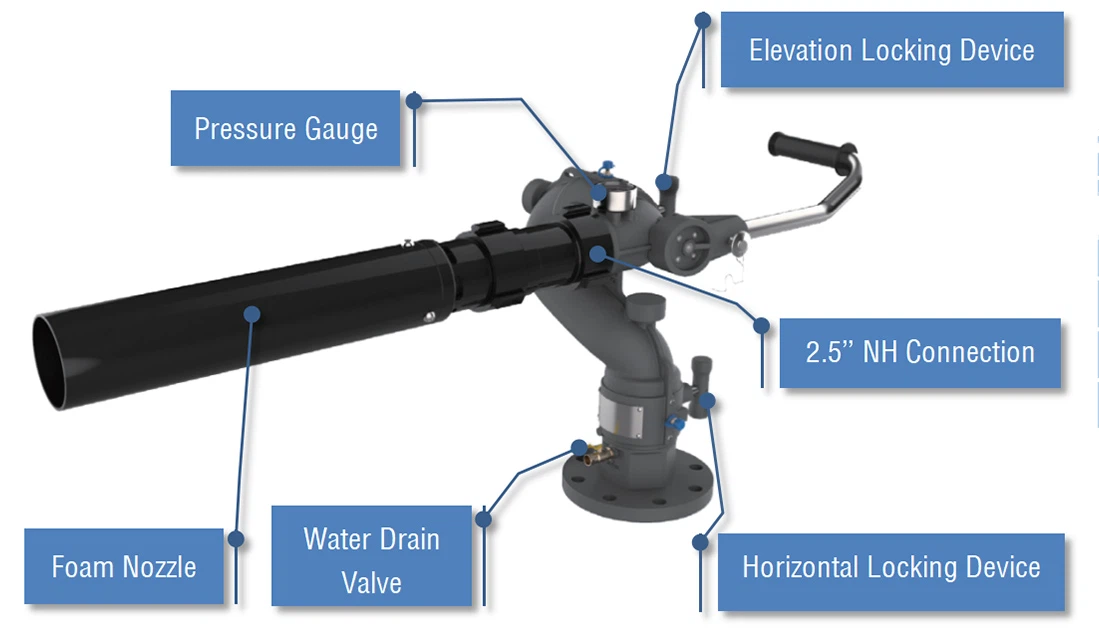

All three models of manual foam fire monitor tiller controls have a 2.5" NH outlet, which is required for proper connection of the device to water sources and hoses.
Technical Parameter
How to Maintain the Fire Fighting Manual Foam Fire Monitor Tiller Control?
1) Regular Inspection: It is important to conduct regular inspections of the equipment to ensure that it is in good condition. Check for any cracks, corrosion, and loose connections. Make sure that all moving parts are lubricated and not binding.
2) Cleaning: The equipment needs to be cleaned regularly to remove any dust and debris. This can be done using a soft, dry cloth or a vacuum cleaner. Avoid using water or other liquids as this may damage the equipment.
3) Storage: Store the equipment in a dry and cool place to prevent damage from moisture and extreme temperature changes.
4) Testing: Conduct a test of the equipment regularly to ensure that it is functioning properly. Make sure that the foam output and nozzle selection are working as they should.
5) Keep a record: Keep a record of all inspections, tests, and maintenance activities performed on the equipment. This will help you track its condition and know when it is time for repairs or replacements.
|
Model |
PL8/24-C |
PL8/32-C |
PL8/40-C |
|
Flow Rate |
1440 LPM |
1920 LPM |
2400 LPM |
|
Working pressure |
8 Bar |
8 Bar |
8 Bar |
|
Foam Jetting Range |
42 meters |
48 meters |
55 meters |
|
Water Jetting Range |
55 meters |
60 meters |
65 meters |
|
Foam Expansion |
≧ 6 times |
≧ 6 times |
≧ 6 times |
|
Outlet |
2.5" NH |
2.5" NH |
2.5" NH |
|
Inlet |
Flange 3'' ANSI 150# is standard ( other sizes & standards are available ) |
||
Application Area
Rescue Services
Residential Buildings
Industrial Settings
Public Space
Frequently Asked Questions
Q: Can I choose the specifications of the fire monitor?
Q: How to Use Fire Monitor?
Q: Can the Monitor Head of the Fire Monitor Be Replaced?
Q: What Are the Flange Standards for Fire Monitors?
forede® Fire Monitor System Series
forede® Main Products
How to contact us?
Our address
Nan'an City, Quanzhou City Fujian PRC-china
Phone Number
Hot Tags: fire monitor for tunnel, China, manufacturers, suppliers, wholesale, price, Quick Response Standard Spray Sprinklers, Fire Hydrant System, Alarm Check Valves, Flange Type Signal Gate Valve, Inline Eductor, Vertical Foam Chamber
Aluminium alloy construction;
Tiller Control;
Complete with Self-Inducting Hose
Flow Rate: 24/32/40 LPS (Optional);
Available for water and foam both;
Flange standard: BS4504,ANSI150,GB,etc.
Foam Proportion: 3%/6% (Optional).
