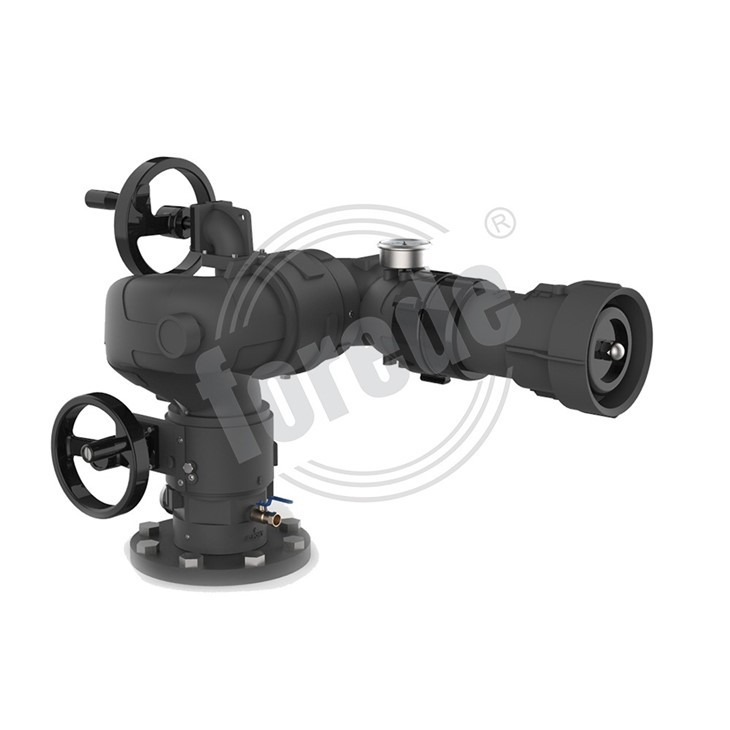

Fire Monitor Water Monitor Fire Fighting System

Fire Monitor Water Monitor Fire Fighting System
Product Introduction:
A fixed manual fire monitor is an essential component of a fire protection system. It is a device that is used to control and extinguish fires in large areas such as industrial facilities or buildings. These monitors are typically attached to a fixed structure such as a wall or a ceiling and are operated manually by a person. The fixed manual fire monitor works by discharging water or other firefighting agents onto the fire source. It is controlled by a valve that is manually opened and closed, allowing the operator to adjust the flow and direction of the firefighting agent. The monitor can also be rotated to cover a wide area, ensuring that the entire location is covered in case of a fire emergency. One of the key benefits of a fixed manual fire monitor is that it can provide fast and effective fire protection. This is particularly important in facilities where combustible materials are being used, as a fire outbreak could potentially cause significant damage and put lives at risk. The monitor's ability to cover a wide area and deliver a high volume of water quickly can significantly reduce the spread of the fire and enable emergency services to arrive on time. Furthermore, fixed manual fire monitors are typically easy to maintain and cost-effective, making them an ideal solution for businesses of all sizes. They require minimal maintenance and can provide round-the-clock protection, ensuring that business operations can continue as usual with minimal disruption.
Send Inquiry
Description
Technical Parameters

Products Description






3




Feature
  • Aluminium alloy construction,hard coated anodized;
  • Flow Rate: 50-60-80-100 LPS (Selectable/Constant);
  • Jetting Pattern: Straight stream,Fog;
  • Flange standard: BS4504,ANSI150,GB,etc.









.





Model

PS10/80W-B

PS10/100W-B

Flow Rate

4800 LPM

6000 LPM

Working Pressure

10 bar

Max. Reach

85 m 95 m

Max. Fog Angle

120°

Max Range Of Motion

-85° to +90° Vertically, 360° Rotation

Waterway Size

4"(100mm)

Monitor Outlet

3.5" (90mm) NH male thread

Monitor Inlet

Flange 4" BS4504 is standard ( other sizes & standards are available )

Material

Monitor & Nozzle - Hard coated anodized aluminium alloy

Handwheel - Hard coated anodized aluminium alloy







4
5

7










Products Question


2



Q. Do your offer free sample for your clients?

A: Yes, we offer free sample for many of the products



Q. What's the MOQ of your products?

A: Our MOQ is one (1) piece/set.



Q. What's your payment terms?

A: We accept T/T, L/C, Western Union, Paypal,etc.



Q. How long is the delivery time?

A: Usually around 15 days after payment.


Order Information




Dear Customer,


Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.


If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
