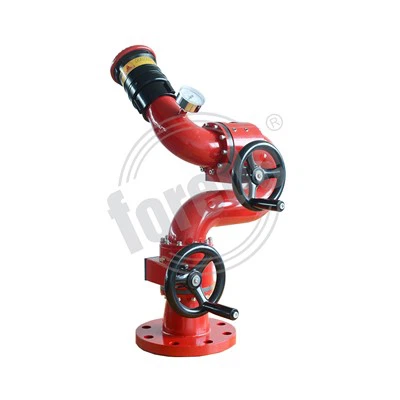

Fixed Fire Monitor
FOREDE brand Handwheel control fire monitor PS8/20-40W-H construction by SS304 stainless steel, suitable for most circumstance,its flow rate could reach 4800LPM,and the automatic nozzle is made of hard coated anodized aluminium alloy, easy to control and durable made it won a warm reception.
Features:
*304 Stainless Steel construction;
*Flow Rate: 80 LPS (Automatic Nozzle);
*Jetting Pattern: Straight stream,Fog;
*360° rotation horizontally;
*-45° to +90° elevate vertically;
*Flange standard: BS4504,ANSI150,GB,etc.
Material | Body | SS304 Stainless steel |
Nozzle & Handwheel | Hard coated anodized aluminum alloy | |
Model | PS8/20-40W-H | |
Flow Rate | 1200-1800-2400LPM (selectable nozzle) | |
Working Pressure | 10 Bar | |
Jetting Range @ 10Bar | 60 m @2400 LPM | |
Max.Fog Spray Angle | 120° | |
Rotation | 360° | |
Elevate | -45° to +80° | |
Inlet | 4" in flange as standard, other size and standard also available | |
Outlet | 2.5" NH male thread | |
FAQ
Q. How do you deliver the goods and how long does it take to arrive?
A: We usually deliver mass order by sea and air, delivery time is depended on the carrier,urgent trail order usually deliver by
DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Railway also optional.
Q. Is it OK to OEM ?
A: Yes. Please inform us formally before our production and confirm the design and other requirements firstly .
Q. Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q.Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Order Information:
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
Hot Tags: fixed fire monitor, China, manufacturers, suppliers, wholesale, price, Fixed Water Monitor, Fire Water Monitor Design, Cast Iron Fire Hydrant, Manual Water Cannon, Fire Fighting Water Monitors, Foam Monitor Fire
1) This fire monitor is made of 304stainless steel;
2) The flow rate is adjustable, from 1200 LPM to 2400 LPM;
3) The jetting pattern can change into either straight stream or fog;
4) The flange standards are various, BS4504,ANSI150,GB,etc.
