Name: Fixed Station Monitor
Brand: forede
SKU: 258509620

Description

Technical Parameters

Products Description

Overview

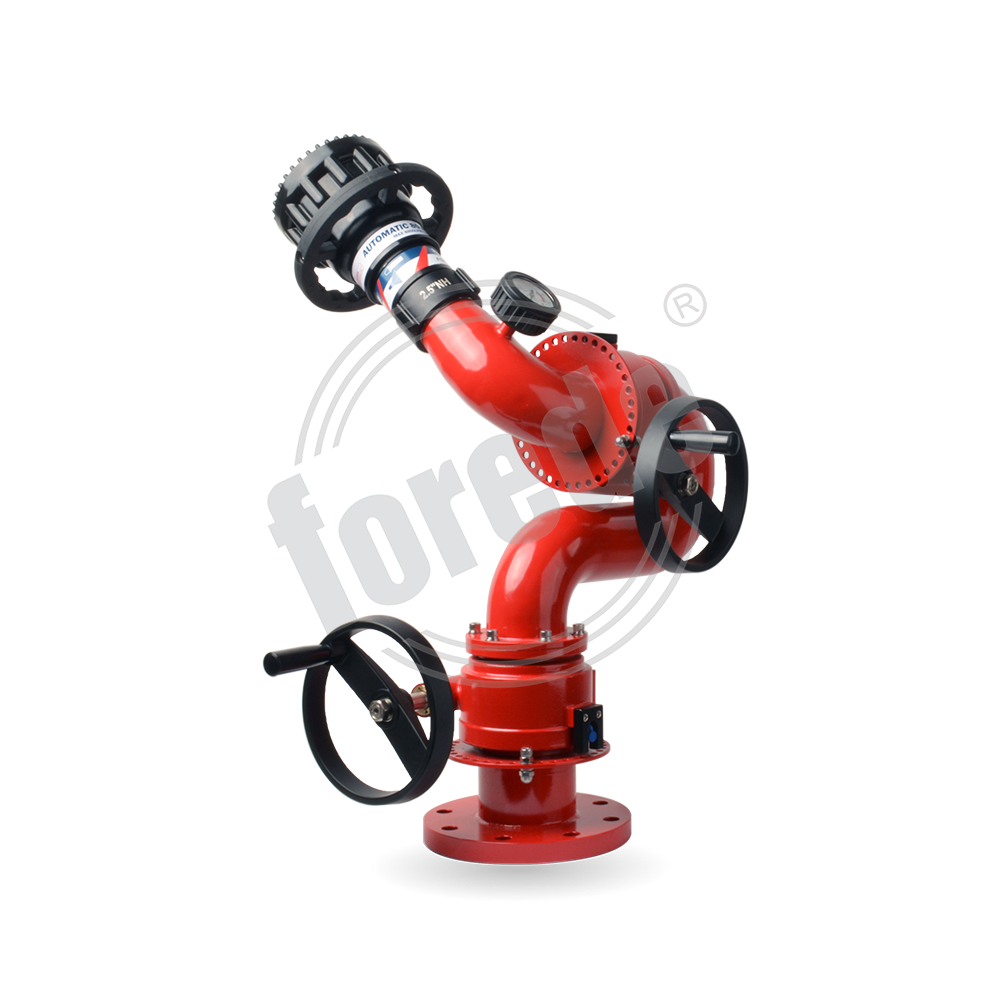

forede® PS10/80W-AH fixed station monitor with full 3" waterway provides flows of up to 4800 LPM (1270 GPM) and can be used with a choice of forede monitor zozzles to suit a wide range of specific applications. With full 360° rotation capabilities and adjustable elevation of 90° above and 60° below the horizontal, the PS10/80W-AH fixed station monitor is infinitely maneuverable via the wheels. Vertical and Horizontal quick-action locks allow the operator to fix the monitor swiftly to any position.

Available in a choice of either Lever-Operated or Geared models the PS10/80W-AH fixed station monitor is easily operated under pressure and maximizes performance through an efficient flow-engineered design. It is available with either 3" or 4" ANSI 150lb Flanged inlets for use on fixed pipework.

Features

Product Name: Fixed station monitor

Flow Rate: 4800 LPM
Jetting Pattern: Straight stream, Fog
Max. Reach: 85 meters

Products Description

forede® fixed station monitor with different size and standard for option:

Model Number	PS10/80W-AH
Flow Rate	4800 LPM Automatic Nozzle
Working Pressure	10 Bar
Max. Reach	85 meters @ 4800 LPM
Max. Fog Angle	120°
Max Range Of Motion	-60° to +90° Vertically, 340° Rotation, other degree available
Waterway Size	3"(80mm)
Monitor Outlet	3" (80mm) NH male thread
Monitor Inlet	Flange 4" BS4504 is standard ( other sizes & standards are available )
Material	Monitor - SS304 stainless steel Nozzle & Hand wheel - Aluminium alloy

FAQ

Q: What is a fixed station monitor, and how does it work?

A fixed station monitor is a firefighting system in which a stationary nozzle is installed in a fixed location. It is connected to a water supply source, such as a fire hydrant or a water tank, and can deliver large volumes of water and other foams or chemicals to extinguish the fire.

Q: Where are fixed station monitor typically used?

Fixed station monitors are commonly installed in areas where there is a high risk of fire, such as storage tanks, loading and unloading areas, chemical processing units, refineries, large warehouses, and other industrial and commercial buildings. These monitors are also used in outdoor locations, such as airports, docks, and oil rigs, where fires can spread quickly and cause extensive damage.

Q: . What are the maintenance requirements for fixed station monitors

Fixed station monitors require regular maintenance to ensure that they are functioning correctly and are ready to use in case of fire. This includes regular inspection, testing, and cleaning of the system.

Q: Can the operate lever instead the operate wheel?

Yes, PS10/80W-AH fixed station monitor is available in a choice of either Lever-Operated or Wheel models.
