Products Description

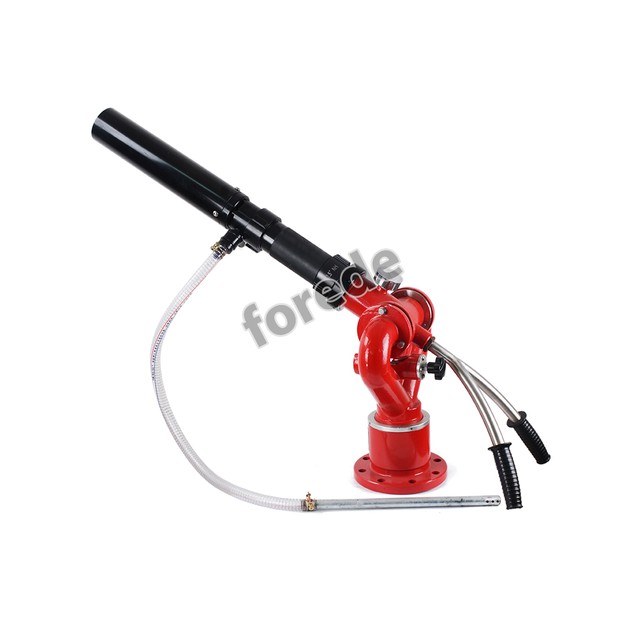

The PLZ series Foam Monitor Fire Fighting is controlled by a handle. It is made of aluminum alloy with hard anodized coating which makes it high in cost-effectiveness and strong in stability. The long service life of the product is also notable. It is suitable for a wide range of locations where fire emergency situations may arise.
Fire Water Monitor Specifications
It is a reliable and efficient tool that can greatly increase the safety of a location. The handle control operation enables the user to easily and quickly adjust the direction and flow rate of the water stream to target the fire source accurately.
The body of the fire monitor is made of strong and durable material. The hard anodized coating on the aluminum alloy provides excellent resistance to corrosion and wear which ensures a longer lifespan of the product.
The PLZ series manual fire monitor is easy to install and use. It can be installed on a tripod or fixed on a wall or other support structures. The 360-degree rotation range and various adjustable spray angles make it a versatile tool for different applications.
It has been rigorously tested and certified to meet international standards. It is an ideal solution for many public buildings such as airports, shopping malls, hospitals, hotels, and industrial parks.
In summary, the PLZ series manual fire monitor is a cost-effective, reliable, and durable fire protection tool that enhances the safety of a location. Its easy operation, versatility, and long lifespan make it an ideal choice for various applications.
Technical Parameter
| Model |
PLZ24
|
PLZ32
|
PLZ40
|
PLZ48
|
|
Flow Rate |
1440 LPM |
1920 LPM |
2400 LPM |
2880 LPM |
|
Working Pressure |
10 Bar |
10 Bar | 10 Bar | 10 Bar |
|
Max. Foam Reach |
40 meters |
45 meters |
50 meters |
55 meters |
| Max. Water Reach | 45 meters | 50 meters | 55 meters | 60 meters |
|
Foam Expansion |
≥6 times | |||
|
Max Range Of Motion |
-45° to +90° Vertically, 360° Rotation |
|||
|
Waterway Size |
2.5'' (65mm) |
|||
|
Monitor Outlet |
2.5'' nH male thread |
|||
|
Monitor Inlet |
Flange 4" BS4504 is standard ( other sizes & standards are available ) |
|||
|
Material |
Monitor & Nozzle - Hard coated anodized aluminium alloy Tiller - SS304 Suction Hose - Rubber & SS304 |
|||
FAQ
Contact US
Our address
NO.278-1, MEITING VILLAGE, MEILIN SUB-DISTRICT, NAN'AN CITY, QUANZHOU CITY, FUJIAN PROVINCE, CHINA.
Phone Number
0086-13107856309 (whatsApp)
About US
QUANZHOU FOREDE FIREFIGHTING EQUIPMENT CO.,LTD.
Since company was found in 2003, FOREDEFIRE has evolved and grown from a small factory in the yard with the limited capacity to only make sprinklers, to a sophisticated and leading company.
In 2013, FOREDEFIRE establish production base in Sanduo Industry Park, Jiangsu PRC to develop and improve fire monitor, fire nozzle, foam system device, fire robot etc. Increased production and enhanced quality and cost control to accommodate our continuing growth
large enterprise scale
Efficient and precise processing and testing equipment.
Standardized Production
Passed ISO9001, CE certification and obtained relevant patent certificates.
High-Quality Customized Services
No intermediate links, providing one-stop service from design, processing, mold trial to mass production.
Work Shop View - Fire Nozzle & Monitor
Hot Tags: foam monitor fire fighting, China, manufacturers, suppliers, wholesale, price, Fire Truck Fire Monitor, Fire Monitor Water Cannon, Fire Water Cannon, Jet Water Cannon, Water Foam Monitor, Water Monitor Fire Fighting
1) Aluminum alloy construction.
2) 1440/ 1920/ 2400/ 2880 LPM flow rate (constant flow).
3) Available for fog spray and straight jetting.
4) 360°rotation,-45°to + 90°Elevate
5) Easy to service and repair.
6) Tiller control.
7) Light weight stable quality.
