Products Description

Overview

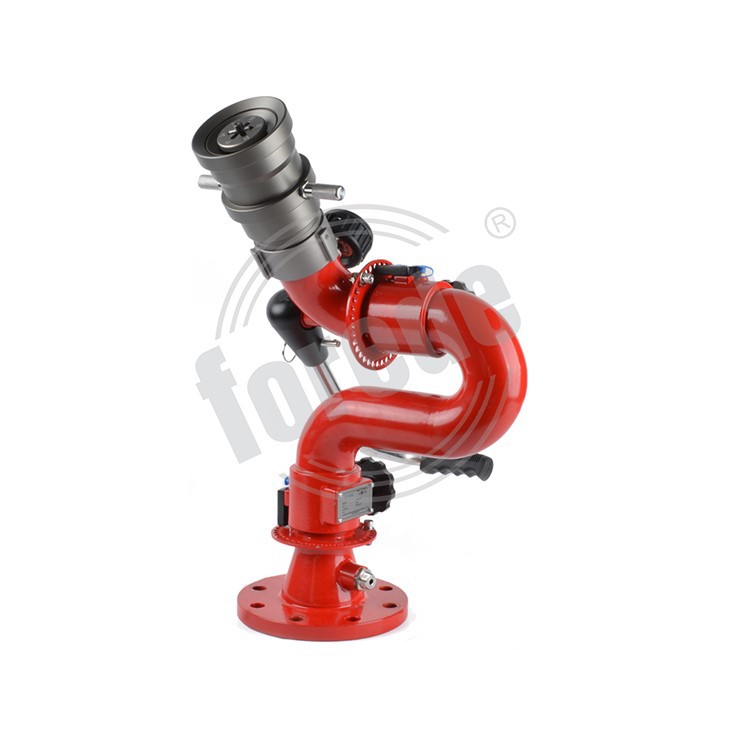

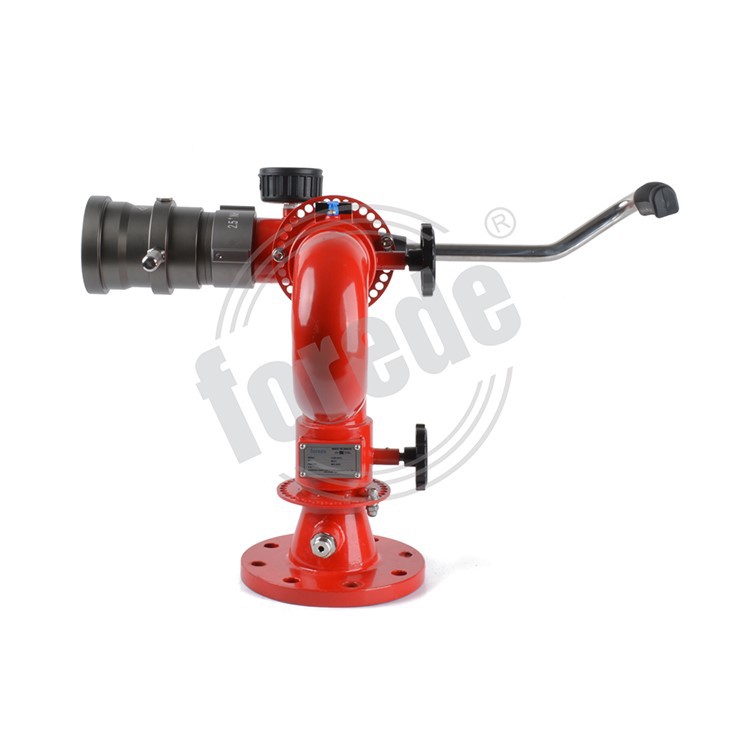

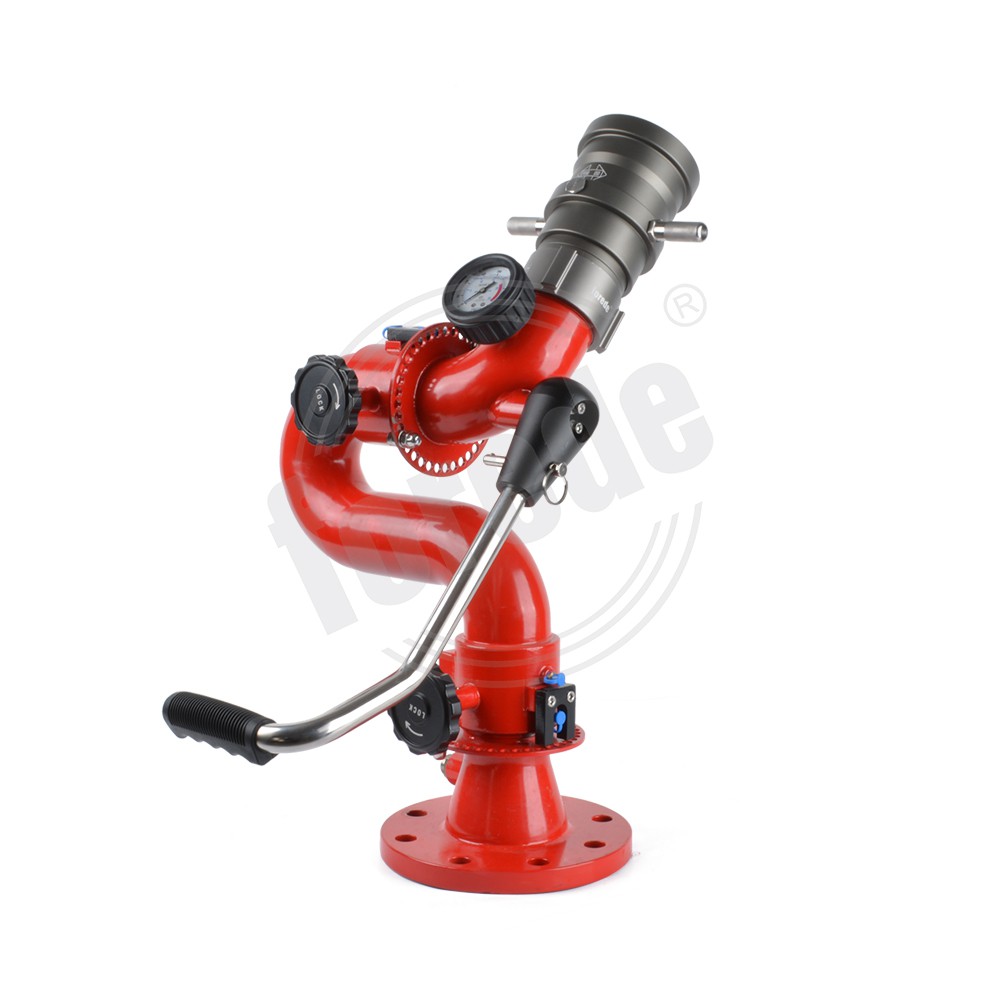

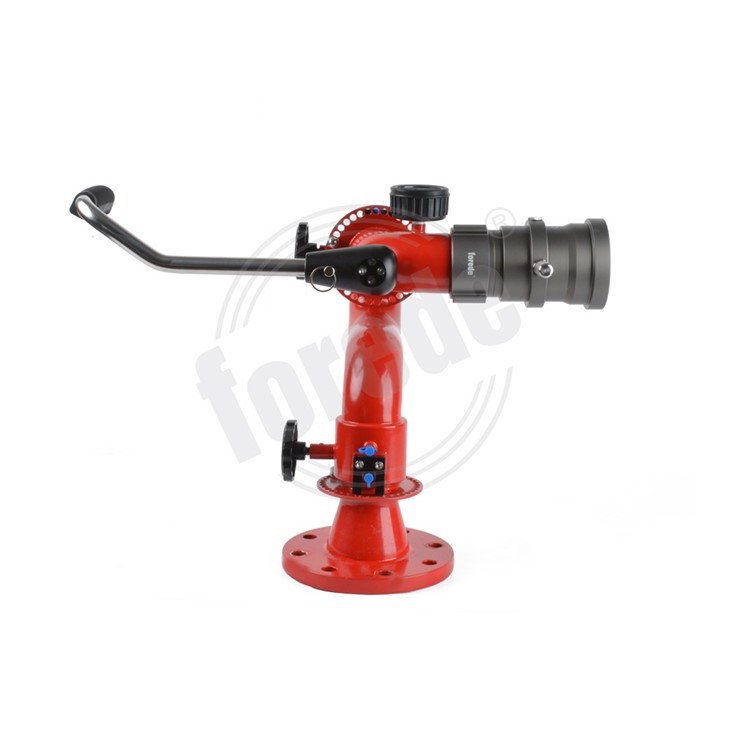

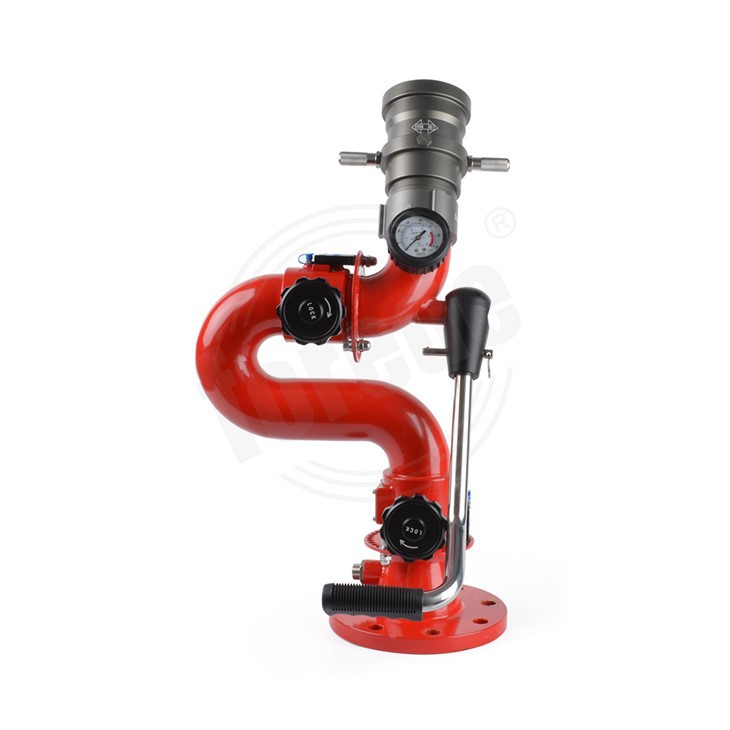

Lever control fire water monitor is a device used by firefighters to spray large amounts of water at a fire from a remote location. It is typically mounted on a special stand or vehicle and can be controlled by a single lever for ease of use. The monitor shoots a strong stream of water, can be rotated left and right for greater coverage. Additionally, some lever control fire water monitors also have the ability to apply foam or other fire-fighting agents to the area.

Specifications

Model Number	TSF1
Material	304 Stainless Steel construction
Flow Rate	1200-1800-2400 LPM Adjustable Nozzle
Working pressure	8 bar
Max. Reach@10 bar	65 meters @ 2400 LPM
Max. Fog angle	120°
Range of the monitor	360°horizontal rotation,-45°/+90°vertical elevate
Water way	2.5(65mm)"
Inlet	Flange 4''BS4504 is standard ,other standard flange is available
Outlet	2.5"(65mm) NH male thread
Material	Monitor & Tiller - SS304 Stainless steel Nozzle - Hard coated anodized aluminium alloy

FAQ

Q: How do you deliver the goods and how long does it take to arrive?

A:We usually deliver mass order by sea and air, delivery time is depended on the carrier,urgent trail order usually deliver by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Railway also optional. In fact, the delivery method depends on the quantity.

Q:Is it OK to OEM ?

A:A: Yes. Please inform us formally before our production and confirm the design and other requirements firstly .

Q:How many agents the company currently has overseas?

A:Currently we have 2 agents abroad. One in Israel and one in Maldives.

Q: What is your term and payment?

Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
