Products Description
Fire Monitor Water Cannon

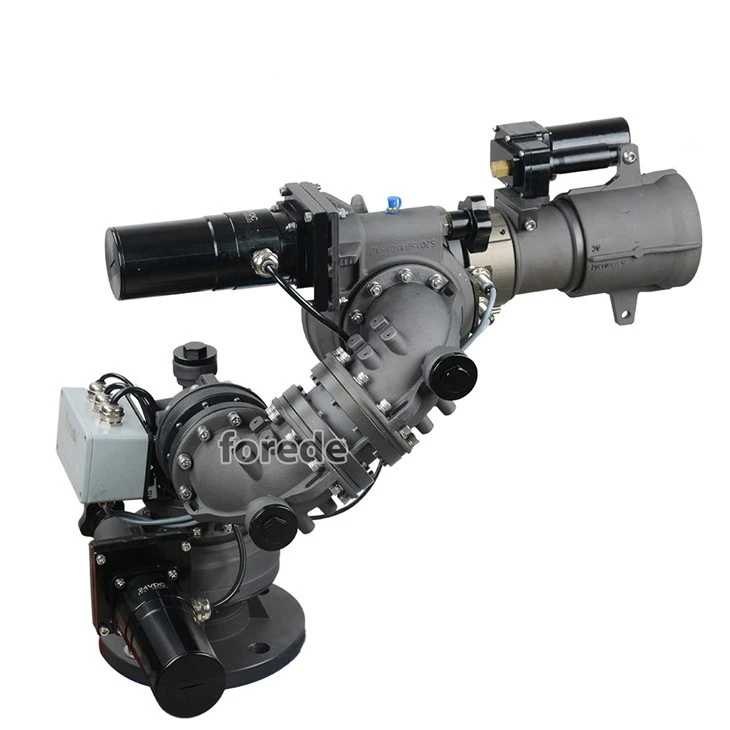

forede PSKD8/20-40W-B remote fire monitor, also known as a remote-controlled monitor, is a type of firefighting equipment used to control and extinguish fires from a safe distance. It is a crucial tool in industrial settings such as oil refineries, chemical plants, and airports where large volumes of flammable liquids are stored and processed.
Essentially, a remote fire monitor is a water cannon mounted on a fixed or mobile platform, which can be remotely operated by a firefighter. It can deliver large volumes of water or firefighting foam to rapidly extinguish fires, and its range and direction can be adjusted remotely to target the source of the flames without endangering firefighters.
Remote Control
Working Pressure
Selectable Flow
Warranty
Technological Parameters
|
Model Number
|
PSKD8/20-30-40W-B |
|
Flow Rate
|
1200-1800-2400 LPM Selectable Flow
* Constant Flow Optional
|
|
Working Pressure
|
8 Bar |
|
Max. Reach @ 8 bar
|
50-65 Meters |
|
Max. Fog Angle
|
120°
|
|
Max Range Of Motion
|
-90° to +90° Vertically, 340° Rotation,other degree available
|
|
Power Supply
|
DC 24V is standard
|
|
Power Consumption
|
≤200W
|
|
Waterway Size
|
2 1/2" (65mm)
|
|
Monitor Outlet
|
2 1/2" (65mm) NH male thread
|
|
Monitor Inlet
|
Flange 2.5" ANSI 150# is standard,
other size and standard available
|
|
Material
|
Monitor & Nozzle-
Hard coated anodized aluminium alloy
|
|
Control System
|
ICS-01 or VMCS-01
|
Detail Image
Control System
Control System
The Modular Design of the PSKD Remote Contrl Fire Monitor is easily assembled and operated by user.The control system include RC transmitter,RC receiver,Control unit,and Joystick,it is available for Wireless remote control by the RC Transmitter,and field control by the Joystick.The RC Transmitter is optional according to the requirement of customers.
Frequently Asked Questions
Frequently Asked Questions
Q. What about the lead time?
-
A:Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Q.How can I get the price?
-
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q.Can I buy samples placing orders?
-
A: Yes.Please feel free to contact us.
Q. Is it OK to OEM ?
-
A: Yes. Please inform us formally before our production and confirm the design and other requirements firstly .
Q.How do you make our business long-term and good relationship?
-
A: We keep good quality and competitive price to ensure our customers benefit and respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Recommend Product
Fire Monitor
Fixed Manual Fire Monitor
Fixed Remote Fire Monitor
Portable Fire Monitor
Automatic Fire Monitor
Monitor Nozzle
Main Product
Our Main Product
Contact Information
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
Our address
Nan'an City, Quanzhou City Fujian PRC-China
Phone Number
Hot Tags: electric remote fire monitor, China, manufacturers, suppliers, wholesale, price, Extended Coverage Fire Sprinklers, Fixed Water Cannon, Stainless Steel Fire Monitor, Remote Water Foam Monitor, Fire Fighting Monitors, Fire Fighting Water Monitor
Features:
-
Hard Anodized Aluminum alloy construction;
-
Flow Rate:1200 - 1800 -2400 LPM (Adjustable);
-
Jetting Pattern: Straight stream,Fog;
-
20°swing left and right from the center;
-
+30°to +80°elevate vertically;
-
Coupling standard: GOST,STORZ,Instantaneous,NH,etc
