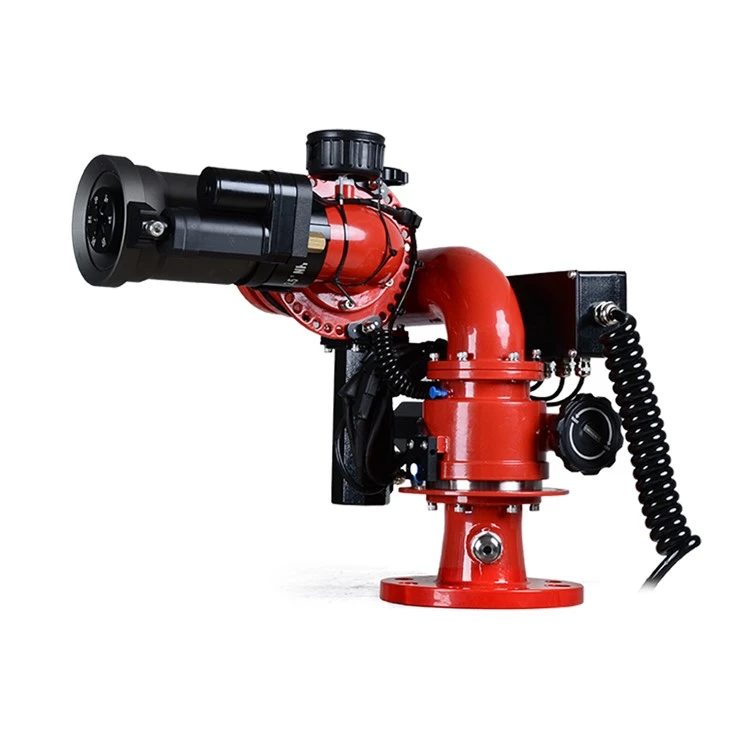

A Fire Fighting Monitor, also known as a water cannon or remote-controlled nozzle, is a device used to control and extinguish fires. It is typically used in large industrial or commercial settings where traditional firefighting methods are not enough to handle the intensity of the fire.
These monitors are designed to deliver large amounts of water or foam to the site of the fire, and can be operated from a safe distance by a trained operator. They offer a powerful and effective solution to fire emergencies, and are an essential part of any comprehensive fire suppression system.
Power Consumption
Flow Style
Working Pressure
Max.Fog Angle
product parameters
|
Flow Rate
|
1200/1800/2400LPM Constant / 1200-1800-2400 LPM Selectable
|
|
Max. Reach @ 8 bar
|
53/60/65/53-65 meters
|
|
Max Range Of Motion
|
-90° to +90° Vertically, 360° Rotation,other degree available
|
|
Turing Speed
|
12°/Second rotation,8°/Second vertical
|
|
Power Supply
|
DC 24V is standard
|
|
Power Consumption
|
24V @ 7.5A
|
|
Waterway Size
|
2 1/2" (65mm)
|
|
Monitor Outlet
|
2 1/2" (65mm) NH male thread
|
|
Monitor Inlet
|
Flange 4" ANSI 150# is standard,other size and standard available
|
|
Material
|
Monitor - SS304 stainless steel is standard,SS316 is available
Nozzle - Hard coated anodized aluminium alloy
|
|
Control System
|
ICS-01 or VMCS-01
|
do you have any question?
Q. Do your offer free sample for your clients?
A: Yes, we offer free sample for many of the products
Q. What's the MOQ of your products?
A: Our MOQ is one (1) piece/set.
Q. What's your payment terms?
A: We accept T/T, L/C, Western Union, Paypal,etc.
Q. How long is the delivery time?
A: Usually around 15 days after payment.
forede® Fire Monitor System Series
