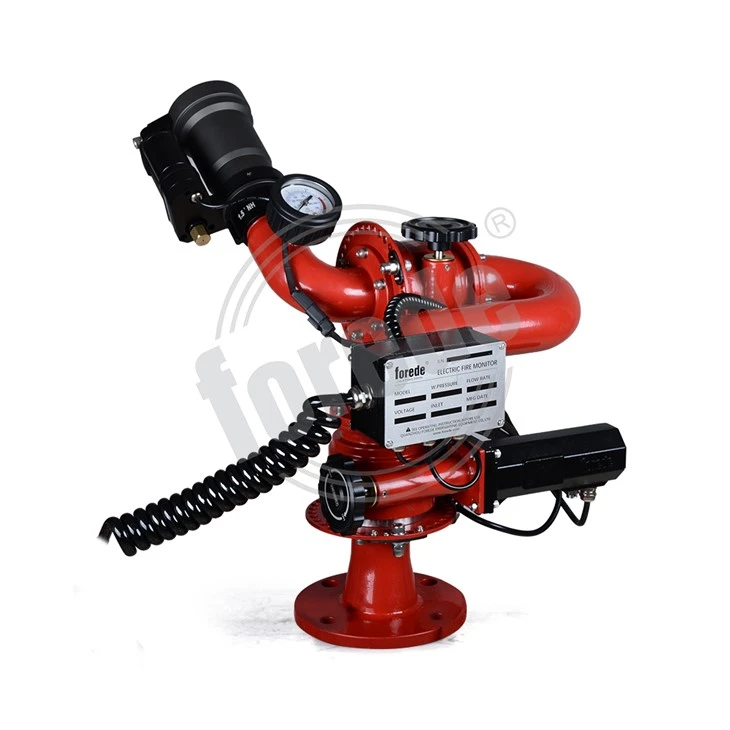

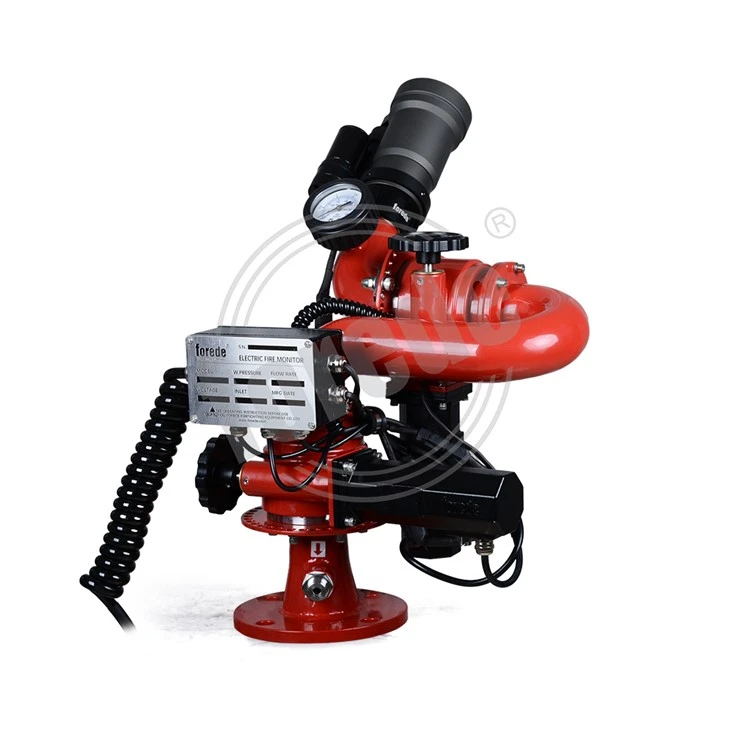

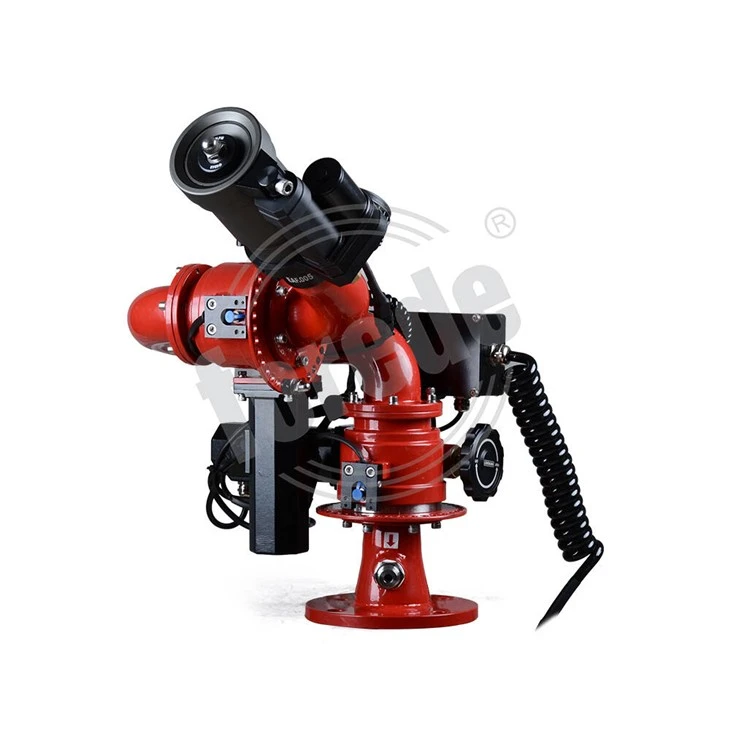

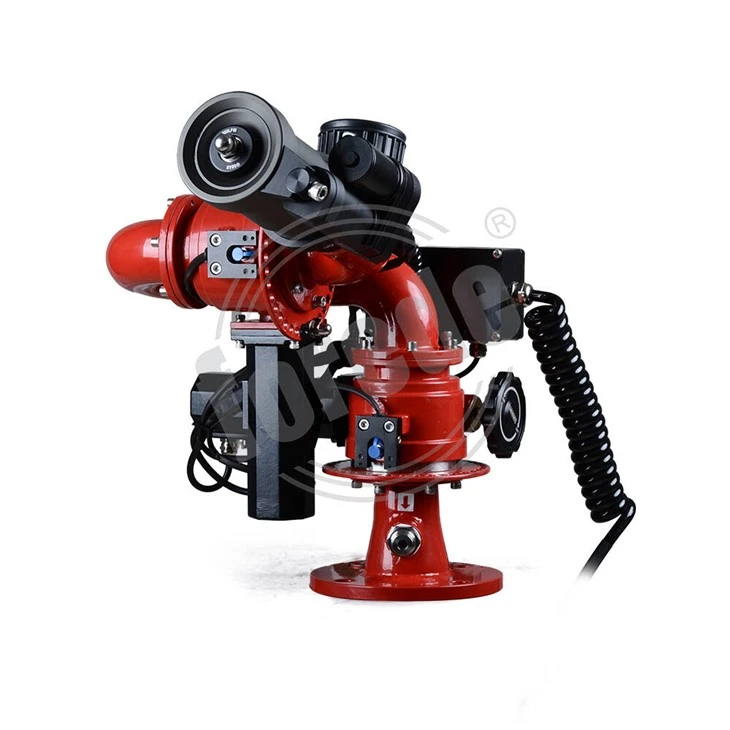

Fire Water Fixed Monitor

Product Introduction:

A remote control fire water monitor is a firefighting device that uses a pressurized water supply to deliver a high volume of water at a high velocity to extinguish fires.

Send Inquiry

Description

Technical Parameters

Products Description

A remote control fire water monitor is a firefighting device that uses a pressurized water supply to deliver a high volume of water at a high velocity to extinguish fires. It is typically mounted on a horizontal or vertical platform and can be controlled remotely using a handheld controller or a joystick. The water flow and direction of the monitor can be adjusted and aimed at the fire as needed. Remote control fire water monitors are commonly used on large industrial sites and ships to protect against fires in hazardous environments

Products Parameters

Model Number	PSKD10A
Flow Rate	600 LPM ~ 1200 LPM Automatic Nozzle
Working Pressure	8 bar
Max. Reach @ 8bar	45 meters @ 1200 LPM
Max. Fog Angle	120 °
Max Range Of Motion	-90° to + 90 ° Vertically ,360 ° Rotation, other degree available
Turing Speed	24 ° Per Second Rotation ,10 ° Per Second Vertialy
Power Supply	DC 24 V is Standard
Power Consumption	24 V @ 7.5 A
Waterway Size	2 " (50mm)
Monitor Outlet	2 " (50mm) NH
Monitor Inlet	Flange 2.5'' ANSI 150# is standard,other size and standard available
Material	Monitor - SS304 is Standard ,SS316 is available
Material	Nozzle - Hard Coated Anodized Aluminum Alloy
Control System	ICS-01 or VMCS-01
