Products Description

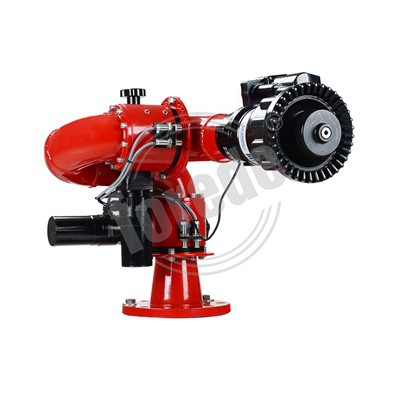

Remote Control Fire Monitor is a convenient and efficient fire extinguishing device. It has a wide range of applications and can be used in ships, ports, petrochemical, chemical, coal mines, oil fields and other industries. The equipment can fire efficiently and accurately, reduce manpower input, and improve the efficiency of task completion. At the same time, its operation is simple, safe and reliable, reducing the possibility of accidental injury of workers. When a Fire occurs, the Remote Control Fire Monitor effectively prevents the spread of the fire and provides strong support for safety production and personnel life protection.
Products Parameters
|
Model Number |
PSKD8/20W-A | PSKD8/30W-A | PSKD8/40W-A | PSKD8/20-40W-A |
|---|---|---|---|---|
| Flow Rate |
1200 LPM Constant Flow
|
1800 LPM Constant Flow | 2400 LPM Constant Flow |
1200-1800-2400 LPM Constant Flow |
|
Working Pressure |
8 bar | |||
| Max. Reach | 50 meters | 60 meters | 65 meters | 50-65 meters |
| Max. Fog Angle | 120° | |||
| Max Range Of Motion |
-90° to +90° Vertically, 340° Rotation,other degree available
|
|||
| Power Supply |
DC 24V is standard
|
|||
| Power Consumption |
≤200W
|
|||
| Waterway Size |
2 1/2"(65mm)
|
|||
| Monitor Outlet | 2 1/2" (65mm) NH male thread | |||
| Monitor Inlet |
Flange 3" ANSI 150# is standard,other size and standard available
|
|||
| Material |
Monitor - SS304 stainless steel is standard,SS316 is available
Nozzle - Hard coated anodized aluminium alloy
|
|||
| Control System |
ICS-01 or VMCS-01
|
|||
