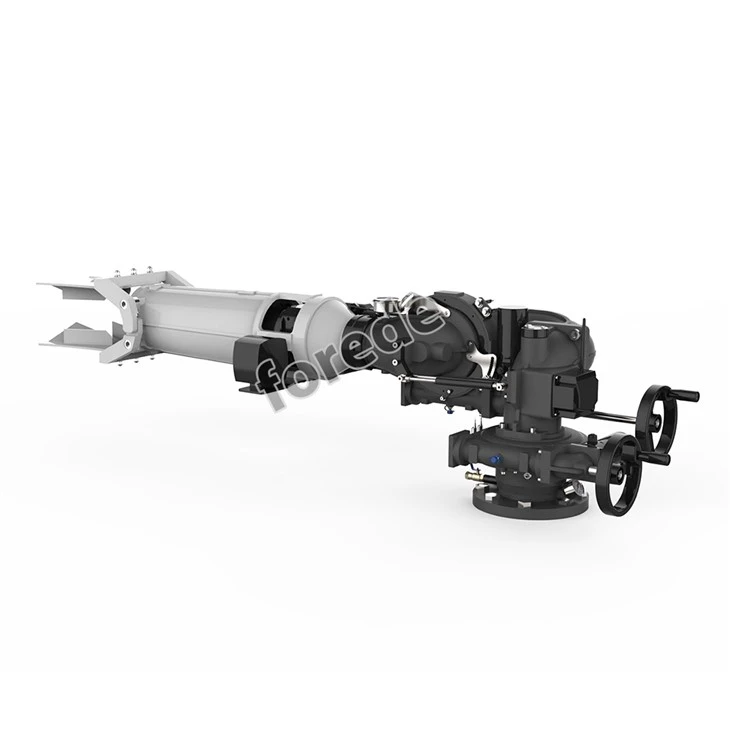

Monitor Fire Truck Mounted

Monitor Fire Truck Mounted
Product Introduction:
PLKD-CY Fix Fire Monitor is built to operate at very high pressures, and its nozzle can disperse water or foam with high velocity. Water or foam is ejected from the nozzle with enough force to break through obstacles and penetrate the source of the flame to control it. In terms of its performance, Electric Control Fire Monitor is highly efficient and reliable. It's easy to install in various fire fighting systems, including fire trucks, fire boats, or fixed installations like fire hydrants.
Send Inquiry
Description
Technical Parameters
Products Description















Monitor Fire Truck mounted

Benefits of Monitor Fire Truck mounted

Improved safety: Electronic fire cannons enable a more advanced, accurate, and efficient firefighting system, ensuring improved safety for both firefighters and civilians. With an increased reach, these instruments can mitigate fires more quickly and limit the damage they cause.



Low maintenance: Electronic fire cannons require much less maintenance relative to standard fire suppression systems, significantly reducing costs. They are less vulnerable to damage from the harsh weather or external factors, requiring no backflow preventers, valves, or orifices replacements.



Cost reduction: The installation of electronic fire cannons lowers the overall cost of fire suppression systems. Since they operate based on standardized programming, there is no need to pay for the equipment needed for manual labor.



Environmental benefits: Electronic fire cannons are environmentally friendly since they deploy a potent and accurate mist of water droplets that extinguish fires more easily, limiting the water required to extinguish the fire. This means less damage caused by water and lower operational costs.



Efficient Space Usage: Electronic fire cannons occupy less space than traditional fire suppression systems, enabling better use of space.



Conclusion

Electronic fire cannons represent a significant advancement in fire prevention technology that provides improved safety, reduced costs, and maximum efficiency. If installed in hazardous and high-risk areas, they offer better protection against fires and can prevent significant damage and loss of life. Even with the added cost of the electronics, electronic fire cannons have the potential to be a cost-effective solution for fire prevention in the future. The emergence of these cannons is clear proof that technology continues to advance, making our lives more comfortable and safer. With further advancements, we can achieve a world free from the disastrous effects of fire hazards.

311

Aluminum Alloy
Material
Wireless/ Manual
Control Way
SS/ Wide Curtain
Spray Pattern
Water/ Foam
Medium
Technical Parameter
Model
PLKD8/48-CY
PLKD10/64-CY
PLKD10/80-CY
PLKD12/100-CY

Flow Rate

2880 LPM

3840 LPM

4800 LPM

6000 LPM

Working Pressure

8 Bar

10 Bar 10 Bar 12 Bar

Water Max. Reach

70 meters

75 meters

85 meters

90 meters

Water Max. Reach 60 meters 65 meters 80 meters 85 meters

Max Range Of Motion

-90° to +90° Vertically, 360° Rotation

turing Speed 6°/ second rotation, 6°/ second vertical
Power supply dC 24V is standard
power consumption 24V@ 7.5A

Waterway Size

4'' (100mm)

Monitor Outlet

3.5'' nH male thread

Monitor Inlet

Flange 4" BS4504 is standard ( other sizes & standards are available )

Material

Monitor & Nozzle - Hard coated anodized aluminium alloy

FAQ

Q: What's the MOQ?

A: MOQ=1 Set

Q: What's the price?

A: Email to sales1@forede.com or call to 0086 13107856309 ( same whatsApp), or Wechat: 13107856309

Q: What's the production time?

A: Based on quantity, generally 15-20 days.

Q: What's the product brand? OEM available?

A: " forede " brand and OEM available, please specify when ordered.

Q: Where is the " FOREDE " from?

A: It's Chinese Brand original.

Q: How long the warranty time?

A: 12 months from starting installation

Q: Can we buy spare parts in the future for replacement?

A: " forede " is doing a long-term bussiness with customers, will always offer after-sales service.

Q: What's the products certification?

A: ISO and CE
Contact US



How To Contact With Us?

Our address

NO.278-1, MEITING VILLAGE, MEILIN SUB-DISTRICT, NAN'AN CITY, QUANZHOU CITY, FUJIAN PROVINCE, CHINA.

Phone Number

0086-13107856309 (whatsApp)

202311171542371



About US

QUANZHOU FOREDE FIREFIGHTING EQUIPMENT CO.,LTD.



Since company was found in 2003, FOREDEFIRE has evolved and grown from a small factory in the yard with the limited capacity to only make sprinklers, to a sophisticated and leading company.



In 2013, FOREDEFIRE establish production base in Sanduo Industry Park, Jiangsu PRC to develop and improve fire monitor, fire nozzle, foam system device, fire robot etc. Increased production and enhanced quality and cost control to accommodate our continuing growth


01


large enterprise scale

Efficient and precise processing and testing equipment.


02


Standardized Production

Passed ISO9001, CE certification and obtained relevant patent certificates.


03


High-Quality Customized Services

No intermediate links, providing one-stop service from design, processing, mold trial to mass production.

20240109184436

Work Shop View - Fire Nozzle & Monitor





54B506FAC3F6E87FEF960D1BD841E880

940FFD78F493FE1BC1547D096D24D1DA

B8E1EFFBA9D9853465091DDDFE7B938B

F7E6E813BA30883B64A4E5EFC9E6C2FC

A05E2FA71D8B548DE50A5CE3802D0925

QQ20210715151955
QQ20210715152005

QQ20210715152017




Hot Tags: monitor fire truck mounted, China, manufacturers, suppliers, wholesale, price, Wireless Fire Monitor, Dry Fire Sprinklers, Defense Type Fire Hose Nozzle, Self Inducting Water Foam Monitor, Remote Control Fire Water Cannon, Remote Control Foam Monitor

1) Aluminum alloy construction.

2) 2880/ 3840/ 4800/ 6000 LPM flow rate (constant flow).

3) Remote control nozzle pattern, for fog spray and straight jetting.

4) 360°rotation,-90°to + 90°Elevate

5) Easy to service and repair.

6) Wireless, remote control.
