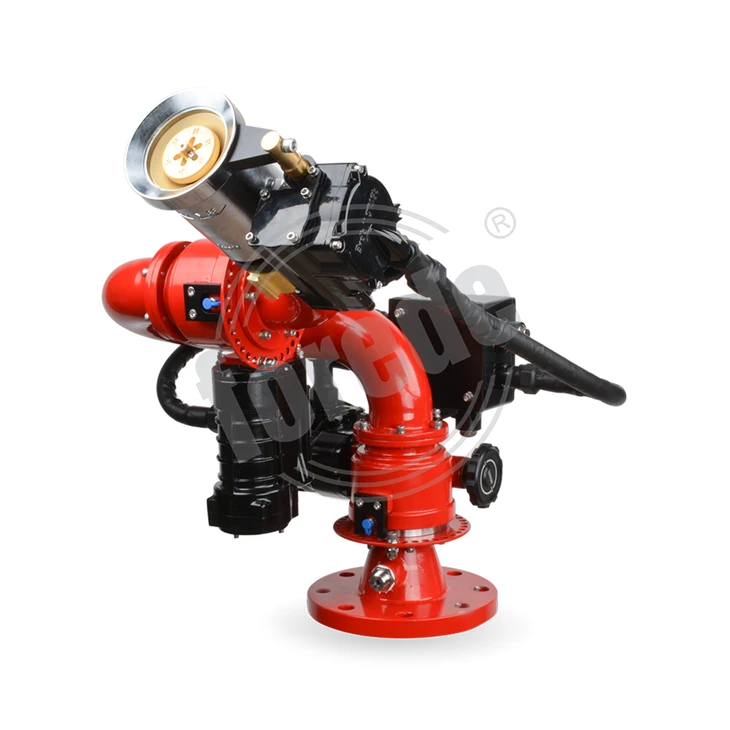

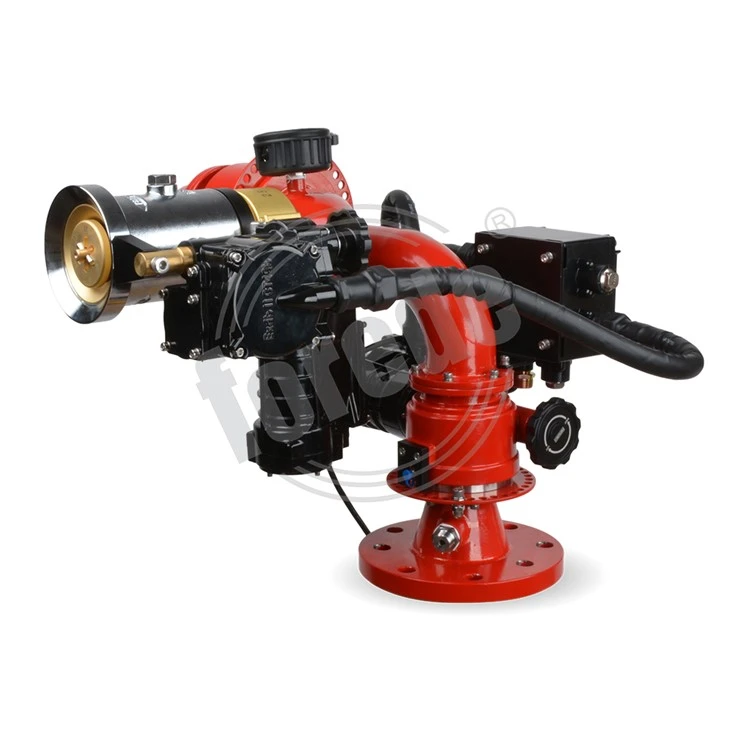

Water-proof Fire Water Monitor With Explosion-proof
Water-proof fire water monitor with explosion-proof is made of hard coated anodized aluminium alloy,the flow rate is up to 2400LPM, and the max.jetting range is 65 meters. The fire monitor nozzle for this product is changable between constant and selectable.
1) Aluminium alloy construction,hard anodized;
2) Constant or Selectable nozzle;
3) Vertical travel of 180°,from -90°to +90°;
4) 340°rotation horizontally;
5) Electric control jetting Pattern: Straight stream,Fog;
6) Explosion proof class IICT4;
7) Optional power supply 12V/24V DC(optional), or 100-380 V AC;
8) Flow Rate 1200/1800/2400 LPM.
Model Number | XFS1.SF020 | XFS1.SF030 | XFS1.SF040 | XFS1.SS040 |
Flow Rate | 1200 LPM | 1800 LPM | 2400 LPM | 1200-1800-2400 LPM Selectable |
Working Pressure | 8 Bar | 8 Bar | 8 Bar | 8 Bar |
Max. Reach @ 8 bar | 53 meters | 60 meters | 65 meters | 65 meters |
Max. Fog Angle | 120° | |||
Max Range Of Motion | -90° to +90° Vertically, 340° Rotation,other degree available | |||
Turing Speed | 24°/Second rotation,10°/Second vertical | |||
Power Supply | DC 24V is standard | |||
Power Consumption | ≤200W | |||
Waterway Size | 2 1/2" (65mm) | |||
Monitor Outlet | 2 1/2" (65mm) NH male thread | |||
Monitor Inlet | Flange 2.5" ANSI 150# is standard,other size and standard available | |||
Material | Monitor & Nozzle- SS304 Stainless Steel | |||
FAQ:
Q: What about the lead time?
Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Q: Do you have any MOQ limit?
For conventional products, Low MOQ, OEM products request 30-40days.
Q: What is your term and payment?
Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
Order Information:
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
