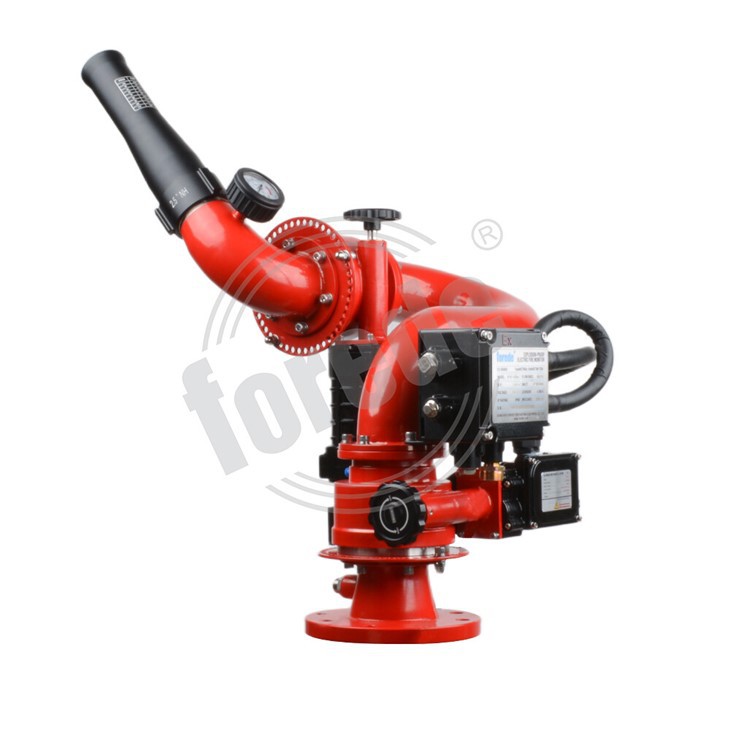

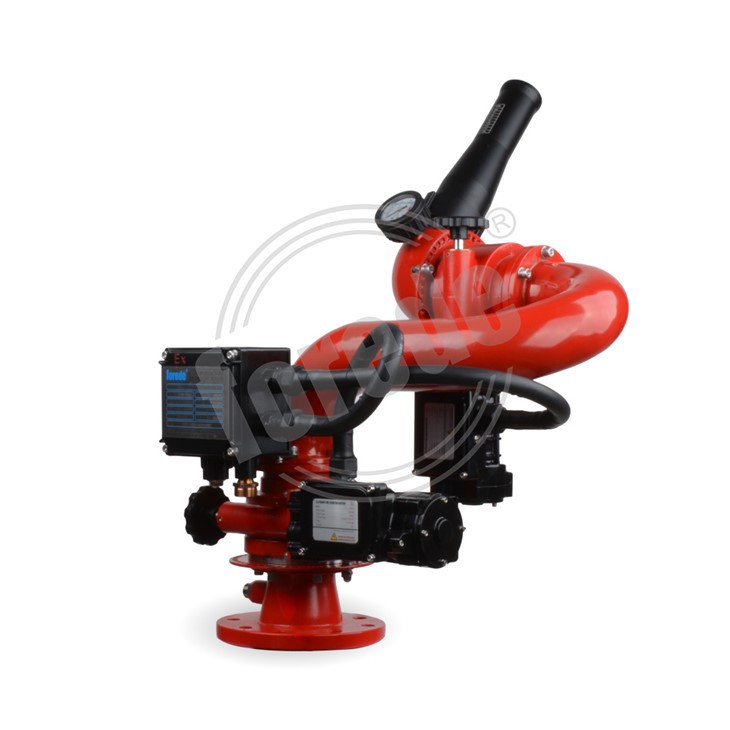

Straight Stream Remote Control Fire Water Cannon
Straight stream remote control fire water cannon is a hard coated anodized aluminium alloy construction, it is explosion proof type, which can apply in many places, and have a good function. Straight stream remote control fire water cannon has constant monitor nozzle and the flow rate are 1200LPM and 1800LPM. The jetting range max can reach 60 meters. The explosion-proof class of straight stream remote control fire water cannon is IICT4, because of this condition, it can be applied in a high risk area, like oil & gas installations, bio-mass plants,industrials,etc.Of course, the monitor nozzle can be change into selectable type.
1) 304L stainless steel construction;
2) Constant nozzle;
3) Vertical travel of 180°,from -90°to +90°;
4) 340°rotation horizontally;
5) Electric control jetting Pattern: Straight stream;
6) Explosion proof class IICT4;
7) Optional power supply 12V/24V DC(optional), or 100-380 V AC;
8) Flow Rate 1200/1800 LPM.
Technological Parameters
Model Number | XFS1.AZ020 | XFS1.AZ030 |
Flow Rate | 1200 LPM | 1800 LPM |
Working Pressure | 8 Bar | 8 Bar |
Max. Reach @ 8 bar | 50 meters | 60 meters |
Max Range Of Motion | -90° to +90° Vertically, 360° Rotation,other degree available | |
Turing Speed | 24°/Second rotation,10°/Second vertical | |
Power Supply | DC 24V is standard | |
Power Consumption | ≤200W | |
Waterway Size | 2 1/2" (65mm) | |
Monitor Outlet | 2 1/2" (65mm) NH male thread | |
Monitor Inlet | Flange 2.5" ANSI 150# is standard,other size and standard available | |
Material | Monitor & Nozzle- Hard coated anodized aluminium alloy | |
Main Product:
FAQ:
Q: Can customers show the requirement about products?
Of course they can. Before order, please tell us your requirements, or you can tell us where to use this product, we can make a solution for you.
Q: Can constant fire monitor nozzle change into selectable type?
Yes, it can change.Please us which monitor nozzle you need before ordered.
Q: What about the lead time?
Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Order Information:
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
