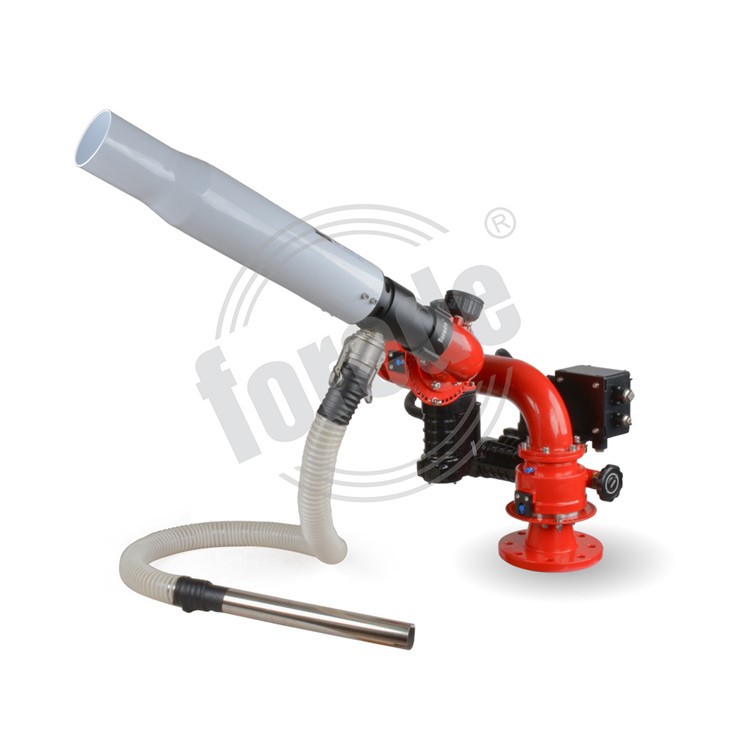

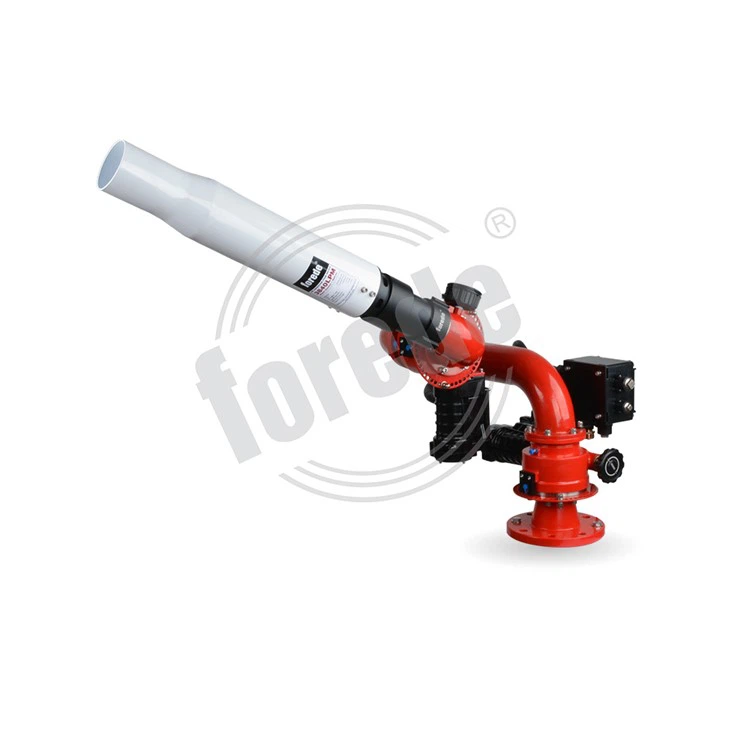

Remote Control Stainless Steel Foam Monitor
This product is remote controlled, and it's made of stainless steel, can use both foam and water, especially when use in foam system, with a long nozzle, can mix foam concentrate, water and air completely, and reach best. Remote Control Stainless Steel Foam Monitor with a camera can save the images and videos and then send to remote-controlled center for operators to make them know where the fire is on. Remote Control Stainless Steel Foam Monitor has explosion-proof motor, which can keep fire monitor working when explosion is.
Technological Parameters
Material | Body | SS304 Stainless Steel |
Nozzle | Aluminum alloy+SS304 | |
Model | XFS2.AP064 | XFS2.AP080 |
Flow Rate | 3840 LPM | 4800 LPM |
Water Max.Reach | 75 meters | 85 meters |
Foam Max. Reach | 70 meters | 80 meters |
Working Pressure | 1.0 MPa | |
Power Supply | 220V AC is standard | |
Rotation | 360° | |
Elevate | -60° to +90° | |
Inlet | 4" in flange as standard, others are available | |
Outlet | 3" NH | |
Explosion Proof Class | IICT4 | |
FAQ
Q. What about the lead time?
A:Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Q: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q:What are the normal maintenance requirements for monitors?
A:For foam monitors, the foam solutions used are corrosive in nature, and if monitor is not flushed properly after operation, this can cause corrosive, which may cause problems during operation.
Normal maintenance activities include –
1) Periodic visual inspections (at least monthly);
2) Proper flushing of monitors after operation;
3) Greasing of swivel joints at specified intervals;
4) Periodic replacement of rubber washers/ gaskets as required by site conditions.
Order Information:
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
